This high-pressure vacuum gas quenching furnace features a graphite furnace chamber and graphite felt insulation. With a maximum temperature of 1320℃, it is primarily used for vacuum bright quenching, sintering, and brazing of tool steel, mold steel, elastic alloys, stainless steel, and 3D printing additive manufacturing. It mainly consists of a pressure furnace body, heating chamber, vacuum syste
Product Description

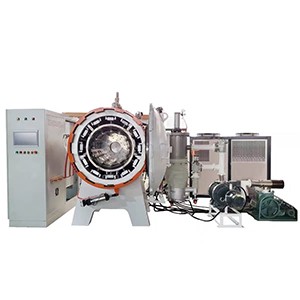

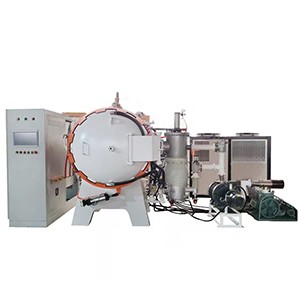

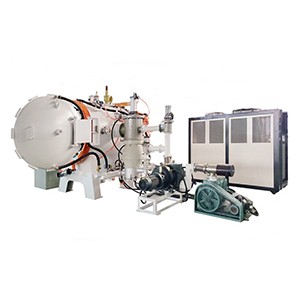

This high-pressure vacuum gas quenching furnace features a graphite furnace chamber and graphite felt insulation. With a maximum temperature of 1320℃, it is primarily used for vacuum bright quenching, sintering, and brazing of tool steel, mold steel, elastic alloys, stainless steel, and 3D printing additive manufacturing. It mainly consists of a pressure furnace body, heating chamber, vacuum system, electrical control system, gas filling system, water cooling system, pneumatic system, and an external transport vehicle.
Features of the High-Temperature Vacuum Gas Quenching Furnace:

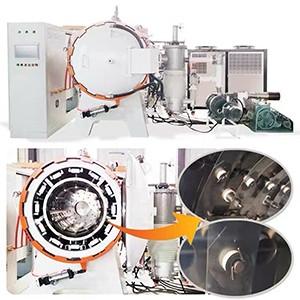

1. The heating chamber is composed of a graphite heating element, soft graphite felt, and hard graphite felt, with a maximum operating temperature of 1300℃. Multiple rows of graphite nozzles are evenly distributed along the circumference of the inner wall of the insulation layer within the heating chamber. During gas quenching, forced gas is uniformly ejected from the graphite nozzles, effectively achieving uniform quenching.
2. The material platform consists of graphite supports, a graphite furnace bed, and Al₂O₃ spacers on the furnace bed. This structure prevents the material tray from sticking to the graphite furnace bed at high temperatures.
3. Gas-cooling system: The system consists of a high-pressure impeller fan, a multi-stage high-efficiency copper-copper heat exchanger, and a ductwork guiding device at the rear of the furnace. During gas cooling, high-purity nitrogen or high-purity argon is introduced. Driven by the high-speed impeller fan, the gas is drawn into the impeller through the high-efficiency copper-copper heat exchanger. After impeller reversal, the gas is evenly sprayed from the graphite nozzle onto the workpiece through the ductwork guiding device, achieving uniform forced cooling.
4. Gas-cooling pressure is adjustable from 1-10 bar.
5. Maximum cooling rate: Cooling an empty furnace from 1150℃ to 250℃ in less than 7 minutes (cooling water temperature less than 35℃).
Technical Data
|
Max Operating Temperature |
1320°C |
|
Long-term Working Temperature |
1300°C |
|
Temperature Controller |
• Adopt PLC or AI PID meter for automatic temperature control. Bidirectional anti-parallel SCR voltage regulation achieves precise furnace temperature control with current limiting function, avoiding power tripping and electrical component burnout caused by unstable power supply voltage or sudden overcurrent. The SCR we use is world-famous brand: Semikron. • Supports 51-segment programmable curves; automatic heating, heat preservation and cooling according to preset programs, one-click operation without on-site staff monitoring. • Built-in self-tuning function for temperature control parameters. • Equipped with over-temperature alarm and thermocouple breakage alarm, it will automatically cut off power supply to provide reliable safety protection. |
|
Temperature Control Accuracy |
±1°C |
|
Heating Rate |
0–15°C/min |
|
Thermocouple |
Type S |
|
Heating Element |
High-purity graphite tube |
|
Furnace Chamber |
High-purity graphite soft felt and hard plate |
|
Ultimate Vacuum Degree |
6×10⁻³ Pa |
|
Gas Quenching Pressure |
1–10 bar |
|
Furnace Shell Structure |
• Made of high-strength carbon steel. After pickling, phosphating and rust removal treatment, electrostatic spraying is adopted for beautiful appearance. • Double-layer air-cooled furnace shell equipped with 2–4 built-in cooling fans, ensuring the surface temperature of furnace shell below 60°C. |
|
Furnace Door |
Side opening design |
|
Product Warranty |
1. One-year free warranty for the whole high-temperature box furnace starting from the acceptance date. On-site maintenance will be provided for equipment faults, with lifetime technical support available. 2. Spare parts can be supplied at cost price after the warranty period expires. |
Furnace Size
|
Model |
Furnace Size(mm) |
Max.
Temperature |
Furnace Loading Capacity |
Temperature Uniformity (℃) |
Power |
Ultimate Vacuum |
|
ST-QCL-334 |
300x300x450 |
1320 |
100 |
±5 |
50 |
6×10^(-3) |
|
ST-QCL-446 |
400x400x600 |
1320 |
200 |
±5 |
80 |
6×10^(-3) |
|
ST-QCL-557 |
500x500x700 |
1320 |
300 |
±5 |
120 |
6×10^(-3) |
|
ST-QCL-669 |
600x600x900 |
1320 |
500 |
±5 |
150 |
6×10^(-3) |
