High Precision X-Ray Desktop XRF Gold Testing Machine

High Voltage Generator: Imported Spellman High Voltage
Testing Atmosphere: Atmospheric, Vacuum, Helium
Excitation Source: Tube voltage 5~50kV, tube current 0~1000uA

Gold Xray Gold Carat Meter Instrument,non-destructive Gold Purity Tester,spectral Gold Detector For Jewelry,jewelry Purity Analyzer Instrument,gold X-ray Carat Meter With Usb,customized Support For Spectral Gold Detector,x-ray Gold Purity Analyzer,non-destructive Spectral Gold Detector,spectral Gold Jewelry Analyzer , gold Purity Analyzer,spectral Gold Purity Tester

Product Description

EDX6000C Energy-Dispersive Spectrometer

Application 1.Analysis of harmful elements for RoHS, ELV, toy safety, footwear leather, and similar applications. 2.Elemental analysis for environmental soil, solid waste, soil remediation, etc. 3.Geological and mineral product analysis. 4.Composition analysis of alloys (copper, stainless steel, etc.) 5.Measurement of metal coating thickness, determination of plating solution and coating content. 6.Detection of precious metals such as gold, platinum, silver, and various types of jewelry. 7.Analysis of petroleum and chemical product content. 8.Elemental analysis in building materials industry (cement, refractory materials, glass, etc.) 9.Determination of beneficial and harmful elements in feeds, fertilizers, etc. 10.Other inorganic elemental analysis industries.

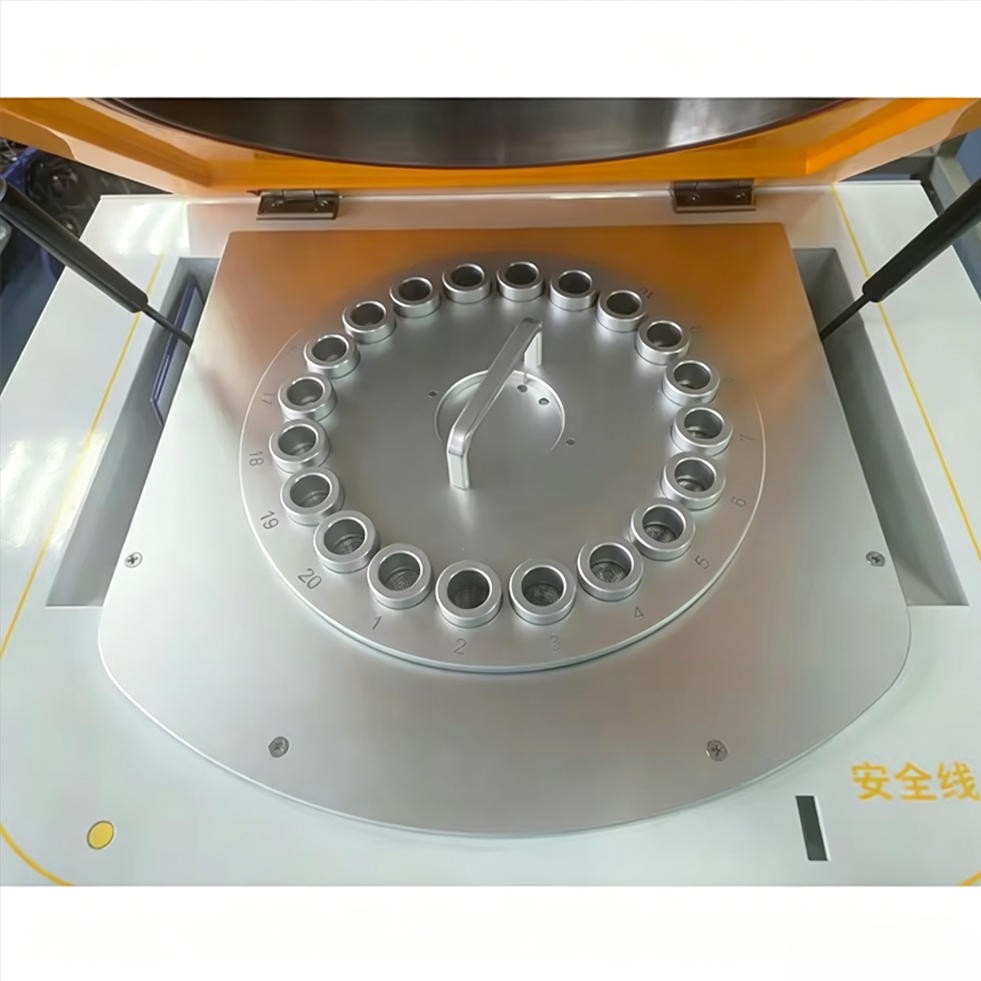

Options 1.9-Sample Chamber Package with Sample Rotation (Sample cups can rotate to reduce sample homogeneity errors, suitable for regular samples like powder compacts. Only 9 sample chambers are available, without single-chamber switching function. Inner diameter of sample cups Φ35mm, outer diameter Φ42mm). 2.12-Sample Chamber Package (Cannot rotate, suitable for testing materials like powder compacts. Switching between single and multiple sample chambers is possible. Inner diameter of sample cups Φ35mm, outer diameter Φ42mm). 3.20-Sample Chamber Package (20 sample chambers cannot rotate, suitable for testing materials like plastic granules and liquids. Switching between single and multiple sample chambers is possible. Inner diameter of sample cups Φ25mm).

product structure

Model	DW-EDX6000C
Elemental Analysis Range	Fluorine (F) to Uranium (U)
Analytical Detection Limit	As low as 0.2 ppm (for light matrices)
Analytical Range	ppm to 99.99%
Analytical Accuracy	<0.05% (RSD value for multiple repeated measurements of main elements in samples with a content >96%)
Detector Energy Resolution	SDD detector, ≤129eV
Excitation Source	Tube voltage 5~50kV, tube current 0~1000uA
High Voltage Generator	Imported Spellman High Voltage
Testing Atmosphere	Atmospheric, Vacuum, Helium
Sample Introduction System	9 sample chambers (with cup rotation), 12 sample chambers + single chamber, 20 sample chambers + single chamber (optional), controlled by PLC
Any number of automatically matchable or selectable analysis and identification models.
Mutually independent matrix effect correction model.
Multivariate nonlinear regression program.
Temperature Range	15°C to 30°C
Power Supply	AC 220V ± 5V, recommended to configure with AC purified stabilized power supply
Instrument Size	646 (W) × 578 (D) × 388 (H) mm
Sample Chamber Size	Φ340 × 64 (H) mm
Instrument Weight	85KG
