Product Description

Product Introduction

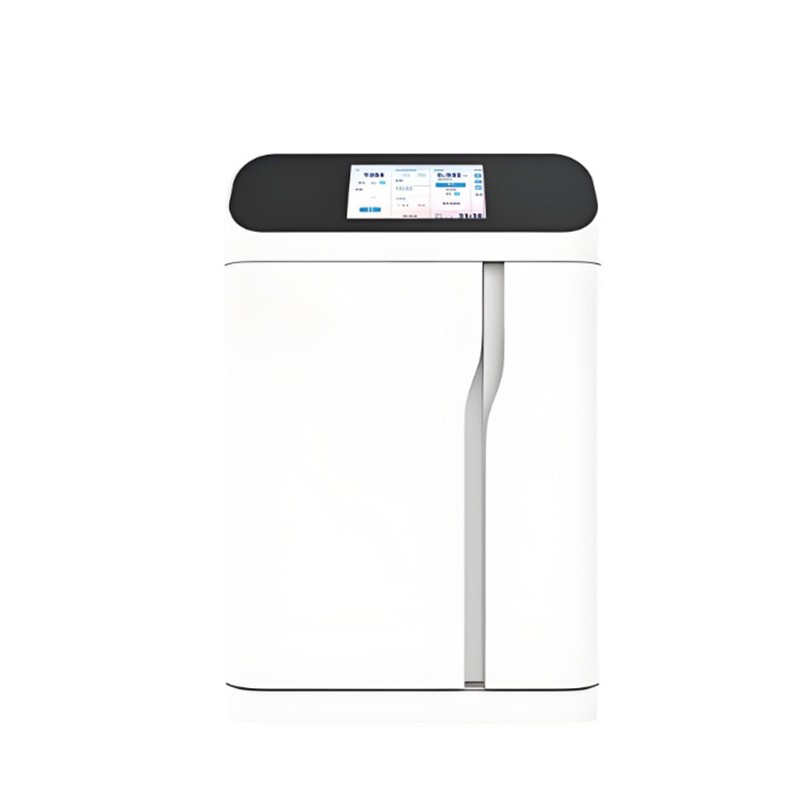

The IC-120 is an integrated ion chromatograph featuring a unibody design and professional modular components. It boasts an all-plastic flow path, eliminating leaching contamination and featuring a comprehensive flow path protection system. A one-button rinsing function makes the instrument easy to operate for customers.

Product Features

1. Features an integrated exterior and professional modular component design, all-plastic flow path, eliminating leaching contamination and a comprehensive flow path protection system;
2. Dual-channel detection for anions and cations, allowing simultaneous detection of both. The eluent generator can be external or not.
3. The main unit features a 10.0-inch touchscreen display with embedded, simple, and reliable control software. It displays real-time parameters such as conductivity, current, flow rate, range, pressure, eluent generator reverse control status, six-way valve status, and suppressor status.
The instrument can be monitored in real-time, providing appropriate analytical parameters and results. The main unit includes a graphical interface for conductivity, real-time display of continuous sampling, waveform area, and sampling period control. It allows online modification and acquisition of component parameters, automatic rapid data acquisition and post-processing, and traceability of instrument data and operating status for easy troubleshooting. It also features status monitoring and spectral display.
4. One-button flushing function for easy and simple operation.

5. Employs a synchronized control mode via computer interface and touchscreen, featuring comprehensive system monitoring functions. It monitors the instrument's operating status in real time, revises working parameters, and has a data protection memory function for ease of use.
6. Features an integrated design and a user-friendly GUI system, making operation simple, intuitive, and intuitive, conforming to user habits and facilitating mastery.
7. Automatic temperature control ensures constant temperature for the separation column during analysis and automatically raises the temperature to the optimal level at low temperatures, extending its lifespan.
8. Excellent anti-interference capabilities and rich expandability. 9. Can be equipped with a UV/VIS detector or pH/COND module for the analysis of unconventional samples, offering multiple uses in one instrument;
10. To improve the instrument's sensitivity and stability and meet diverse user testing needs, the entire unit uses industrial-grade electrical components and advanced shielding technology;
11. Connectors and flow paths resistant to strong acids and alkalis, with good versatility and compatibility with organic solvents, improving the system's high-pressure resistance and eliminating the risk of flow path leakage;
12. The main unit can automatically recognize valve switching signals and initiate automatic software analysis, greatly avoiding errors caused by manual operation;
13. The main unit can automatically perform maintenance, periodically flushing all system components to prevent tubing crystallization;
14. When paired with a chromatographic column with excellent selectivity and separation, anions can be detected and analyzed, including NO2-, NO3-, SO42-, PO43-, F-, and Cl-. Br- and other common anions, as well as ClO2-, BrO3-, ClO3-, etc.; cations can be detected including Li+, Na+, NH4+, K+, Mg2+, Ca2+, etc.
14. Supports multiple detection modes: direct conductivity detection, suppressed conductivity detection, amperometric detection, and conductivity-amperometric tandem detection.
15. Capacitor ranges can be switched as needed.
16. Anion and cation dual channels can be switched as needed.
17. The IC-120 ion chromatograph, as an upgraded version, is an integrated anion and cation selective dual-system instrument with a smart large screen and four capacity ranges selectable with a single button. It supports dual-system anion and cation detection, and allows for manual preparation of eluent or the addition of an external eluent generator. Customers can customize the system according to their testing requirements and budget.

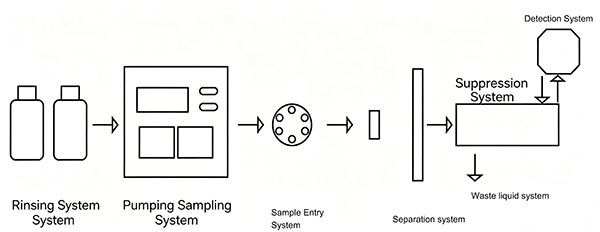

Working Principle

The principle of ion chromatography separation is based on the reversible exchange between dissociable ions on the ion exchange resin and solute ions with the same charge in the mobile phase, and the difference in affinity of the analyte solute for the exchanger. It is suitable for separating hydrophilic anions and cations. For example, in the separation of several anions, after the sample solution is injected, it first undergoes direct ion exchange with the ion exchange sites on the analytical column (i.e., it is retained on the column). For instance, when using NaOH as the eluent to analyze F-, Cl-, and SO42- in the sample, the anions retained on the column are replaced by OH- groups in the eluent and eluted from the column. Analyte ions with weak affinity for the resin are eluted sequentially before those with strong affinity. This is the ion chromatography separation process. The eluent passes through a chemical suppressor to minimize the background conductivity from the eluent, resulting in a large and accurately measurable conductivity signal when the analyte leaves the conductivity cell.
