- 190~1100nm
- 0.3nm
- 10.1-inch 1024×800 high-resolution capacitive touch LCD screen

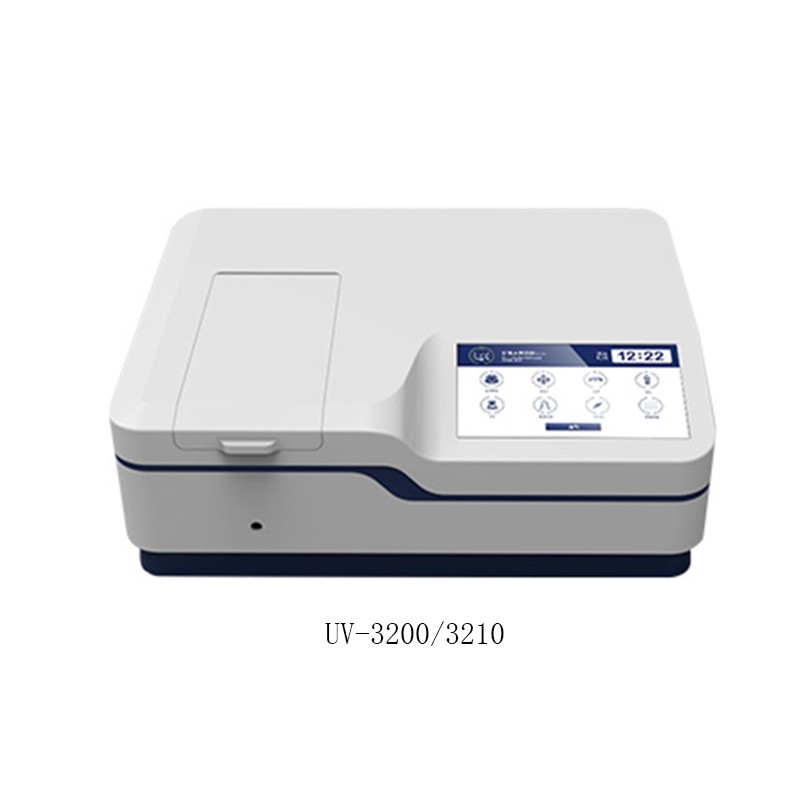

Dual Beams UV Visible Spectrophotometer UV-3210 is with brand-new optical path design, internationally sourced premium components, superior instrument performance, and high-resolution 10.1-inch touchscreen, this instrument greatly meets the analytical needs of even the most professional users. It can be widely used in research and production across various fields, including organic chemistry, etc.
Product Description
Product Introduction
Dual Beams UV Visible Spectrophotometer UV-3210 is with brand-new optical path design, internationally sourced premium components, superior instrument performance, and high-resolution 10.1-inch touchscreen, this instrument greatly meets the analytical needs of even the most professional users. It can be widely used in research and production across various fields, including organic chemistry, biochemistry, pharmaceutical analysis, food inspection, medicine and health, environmental protection, and life sciences.
Product Features
1. 10.1-inch color touchscreen display provides a large screen for directly displaying various scanning curves and graphs, allowing users to complete all measurement needs without a computer.
2. Supports USB flash drive storage for user convenience. Measurement data can be directly exported to a USB flash drive, supporting Excel, TXT, and image formats. Output formats include *.csv, *.qua, *.tet, and *.bmp.
3. Data output: RS-232C serial port (printing), USB drive (online), USB HOST (for USB flash drive connection), with 8GB of memory standard.
4. Industry-first to use an advanced ARM12 high-performance processor, the instrument can internally store 5000 test data points or 500 working curves.
5. Suspended optical system design with a reinforced and thickened aluminum base plate eliminates the impact of vibration or deformation on the optical system; the double-layer design completely separates the various circuit components of the optical path, improving the instrument's resolution and stability.
6. The instrument uses a patented photoelectric signal detection device, resulting in a lower signal-to-noise ratio and greater instrument stability.
7. Optional built-in fully automated sample introduction flow path system, greatly simplifying customer use.
8. Optional 8-cell automatic cuvette holder with patented rotating design, ensuring perfectly centered light passing through the cuvette and improving instrument performance.
Technical Data
| Parameter Item | Specification |
|---|---|
| Model | UV-3210 |
| Display | 10.1-inch 1024×800 high-resolution capacitive touch LCD screen |
| Optical System | Double beam, CT monochromator |
| Light Source | Imported deuterium lamp, tungsten lamp |
| Detector | Imported photodiode |
| Stray Light | 0.05% (at 220 nm) |
| Spectral Bandwidth | 2 nm |
| Wavelength Accuracy | ±0.3 nm across full wavelength range (±0.1 nm at 656.1 nm) |
| Wavelength Repeatability | 0.1 nm |
| Transmittance Accuracy | ±0.3%T |
| Photometric Modes | Transmittance / Absorbance / Energy / Concentration |
| Data Interface | RS-232C, USB drive, USB HOST |
