High Precious Portable XRF Gold Testing

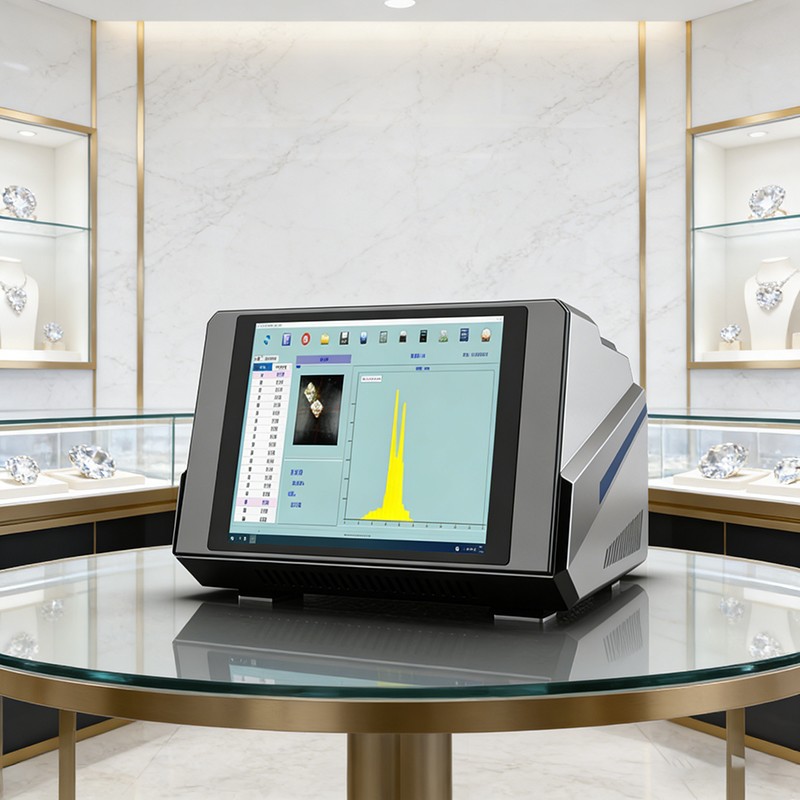

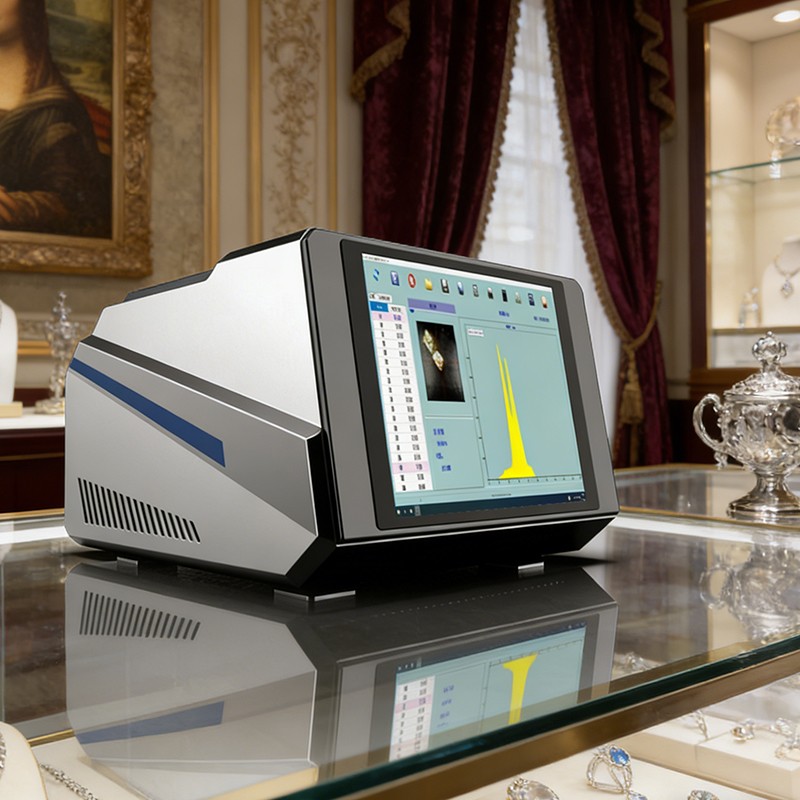

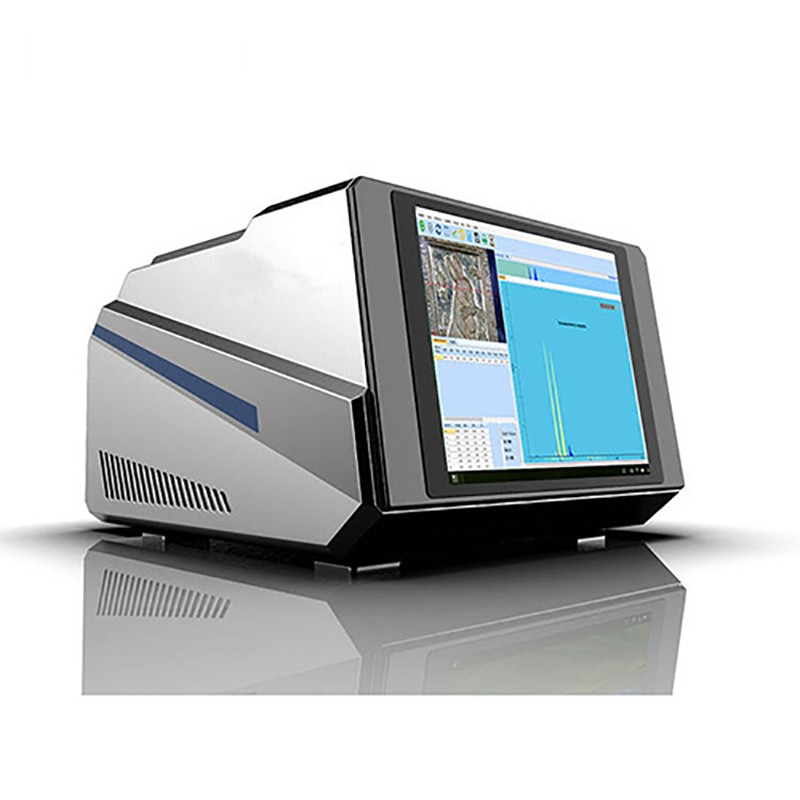

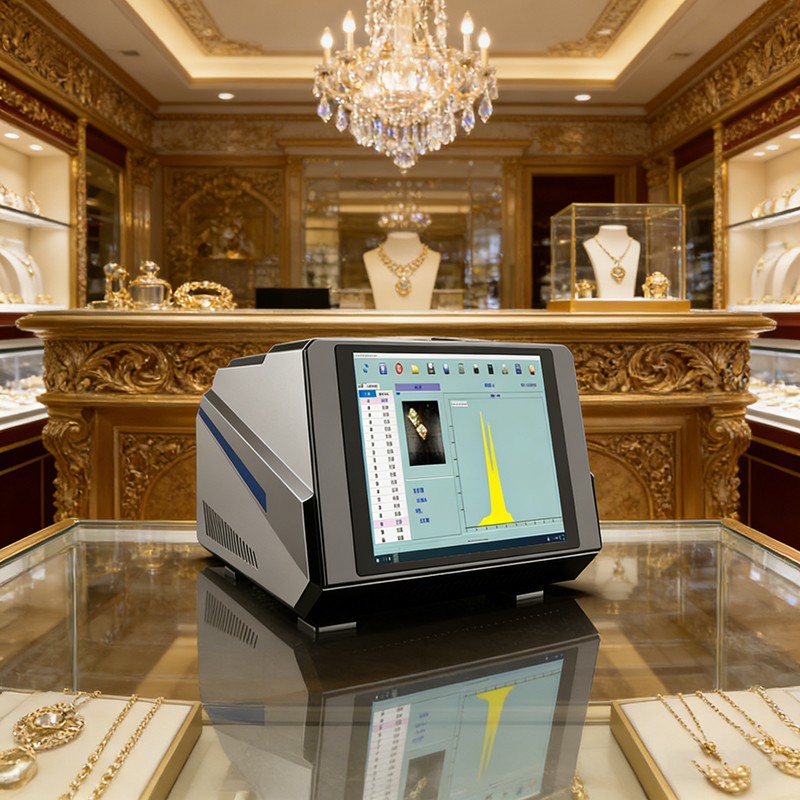

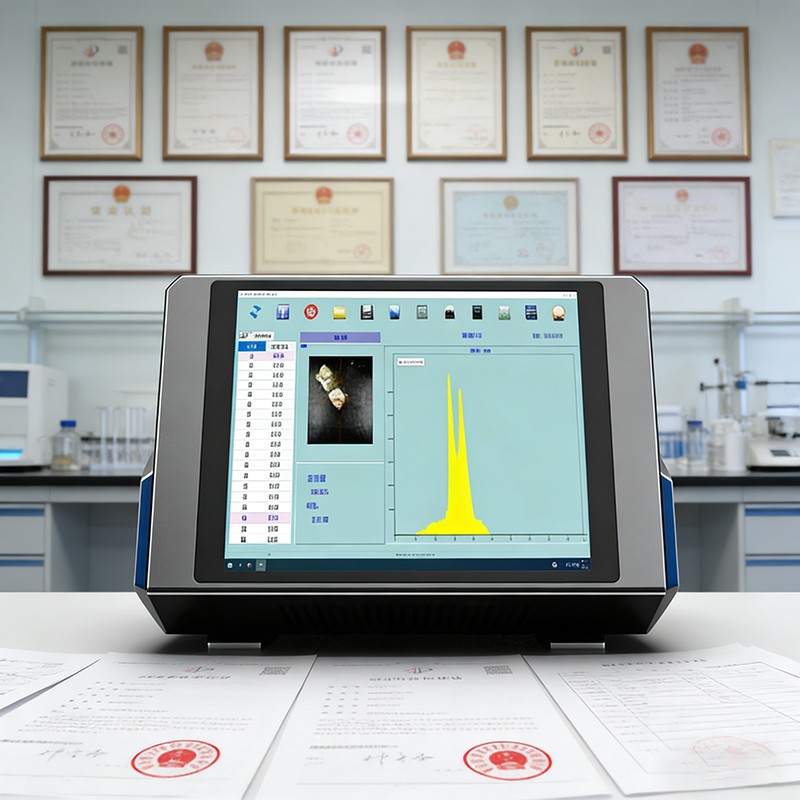

High Precious Portable XRF Gold Testing Metal Analyzer Purity Density Testing Assay Machine Handheld XRF Analyzer

Detector : SIPIN
Measure the range of elements: 82 elements from sodium (Na) to uranium (U) between all elements，Up to 26 elements simultaneously each time

Gold Xray Gold Carat Meter Instrument,non-destructive Gold Purity Tester,spectral Gold Detector For Jewelry,jewelry Purity Analyzer Instrument,gold X-ray Carat Meter With Usb,customized Support For Spectral Gold Detector,x-ray Gold Purity Analyzer,non-destructive Spectral Gold Detector,spectral Gold Jewelry Analyzer , gold Purity Analyzer,spectral Gold Purity Tester

Product Description

Non-Destructive Analysis: Accurately identifies precious metals and alloys without damage.

HD Camera: Provides clear images for precise material inspection.

Customizable Switches: Adjust settings for various testing needs.

Wide Analysis Range: Detects elements from ppm to 99.99%, ensuring comprehensive analysis.

High Measurement Accuracy: Ensures ±0.03% precision for reliable results.

Specficiation	Details
Analysis Range	ppm to 99.99%
Accuracy	0.01% (Au≥96%)
Sample Form	Solid, powder, liquid
Tube Voltage	5KV ~ 50KV
High Voltage Power Supply	0 ~ 50KV
Camera	HD camera
Filters	Selectable customized switches
Detector Type	SDD
Resolution	135 ± 5 eV
Multichannel Analyzer	Digital multichannel
Sample Chamber Size	310 * 270 * 90 (mm)
Test Time	5 ~ 60sec
Measuring Element	82 elements from sodium (Na) to uranium (U) between all elements, Up to 26 elements simultaneously each time (For use in the precious metals industry only)
Analysis Software	Keyray qualitative and quantitative analysis software
External Dimensions	480 * 440 * 368 (mm)
Weight	36Kg
