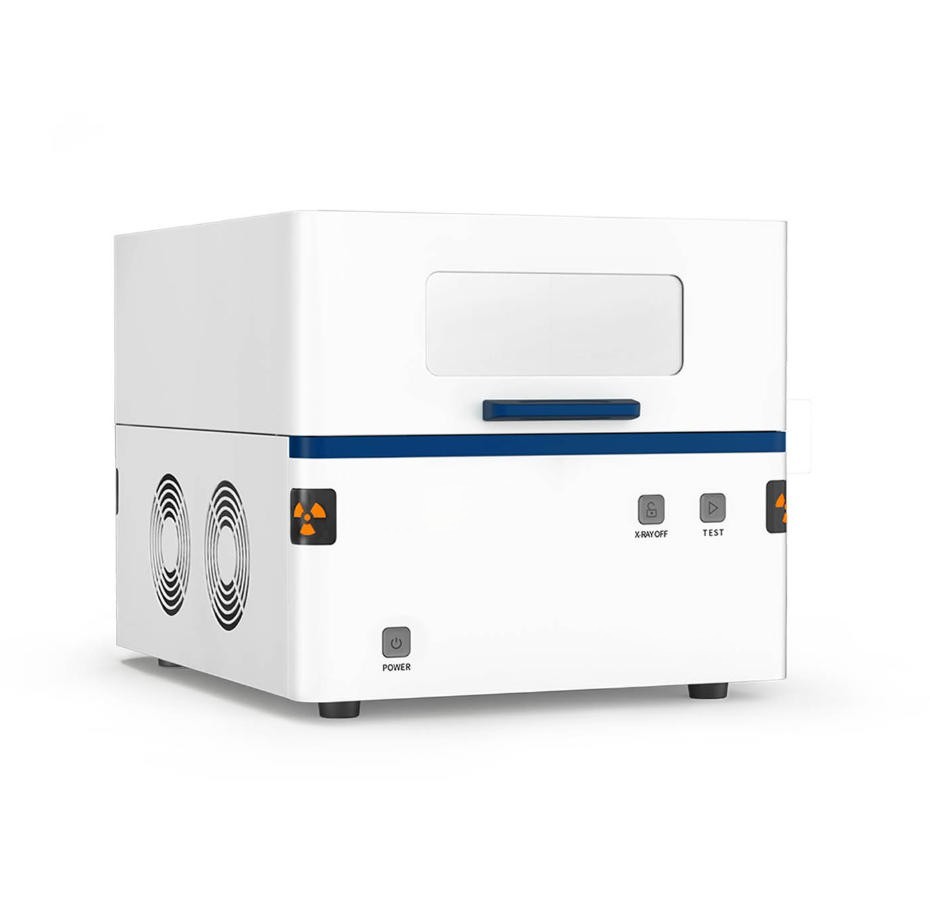

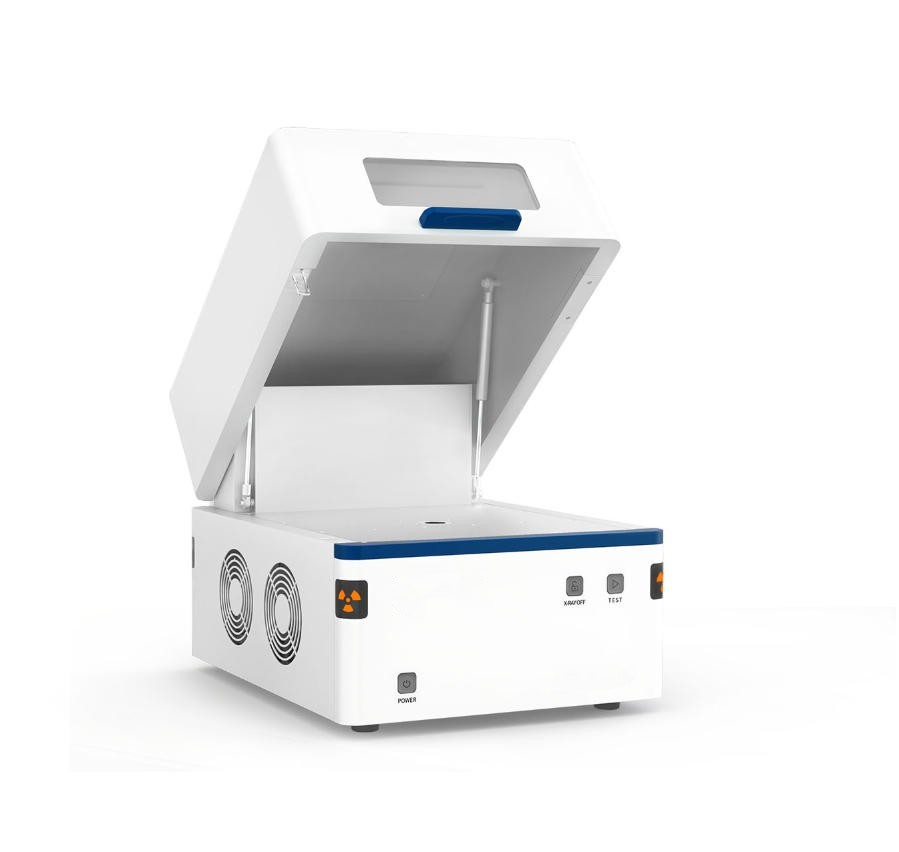

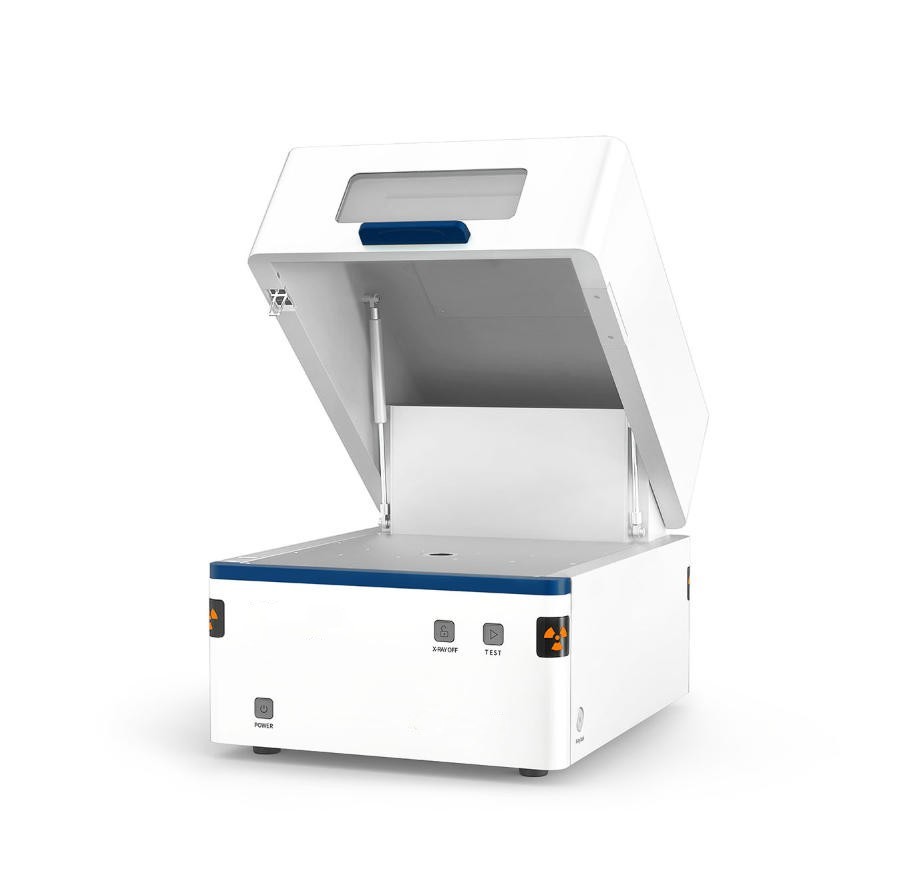

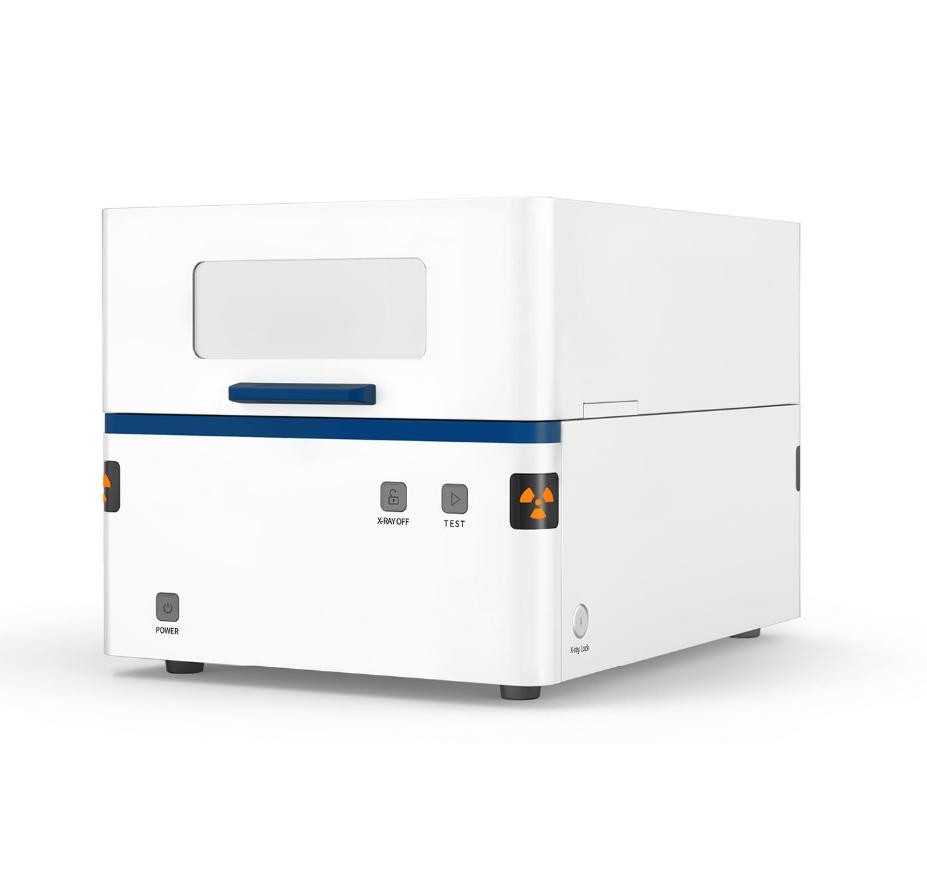

Non-Destructive X-Ray Spectrometer Gold Purity Analyzer
- USA AMPTEK customized Fast-SDD
- 50KV/1mA
- Φ1.5mm
Gold Xray Gold Carat Meter Instrument,non-destructive Gold Purity Tester,spectral Gold Detector For Jewelry,jewelry Purity Analyzer Instrument,gold X-ray Carat Meter With Usb,customized Support For Spectral Gold Detector,x-ray Gold Purity Analyzer,non-destructive Spectral Gold Detector,spectral Gold Jewelry Analyzer , gold Purity Analyzer,spectral Gold Purity Tester
Product Description
Core Positioning: An FSDD-based XRF benchtop analyzer designed for jewelry testing and precious metal recycling, enabling non-destructive and accurate analysis of gold, platinum, palladium and other precious metals.
1. Product Description
FSDD-based precious metal analyzer,It adopts a USA AMPTEK customized Fast-SDD detector and an innovative vertical optical path to achieve a smaller real focus. Equipped with a 10-core CPU and powered by the Smart FP algorithm, it is purpose-built for the jewelry testing and precious metal recycling industries, delivering fast and accurate analysis of gold, platinum, palladium and other precious metals.
2. Core Functions & Features
- Non-destructive Testing: Non-destructive analysis with easy operation.
- Element Range: Analyzes elements from Potassium (No.19) to Uranium (No.92); up to 30 elements simultaneously.
- Testing Precision: ±0.01% for 9999 gold.
- Coating Warning: Built-in coating alert and rhenium/tungsten detection warning.
- High-Efficiency Testing: Supports multi-point continuous testing; automatically calculates average value and RSD of multiple results.
- Sample Visibility: Equipped with lead glass for direct sample observation.
- Software & Service: Lifetime free upgrades; prompt after-sales service.
3. Technical Specifications
| Item | Specification |
|---|---|
| Detector | USA AMPTEK customized Fast-SDD; 25mm² area; resolution: 125±5eV |
| Collimator | Φ1.5mm |
| Embedded Computer | Intel i3 10-core |
| HV Power Supply | 50KV/1mA digital high voltage |
| X-ray Tube | 50KV/1mA; aluminum window; tungsten target; focus: Φ0.3mm |
| Input Voltage | AC100–240V, 50Hz |
| Package Dimensions | 625×560×480mm |
| Machine Dimensions | 460×522×368mm |
| Test Chamber Dimensions | 374×344×155mm |
| Rated Power | 150W |
| Weight | Gross: 57KG; Net: 42KG |
| Noise Level | ＜65dB |
