- CAC-30

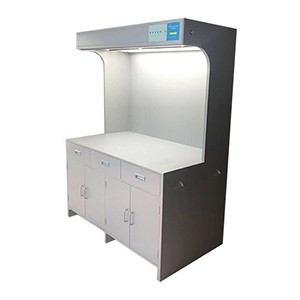

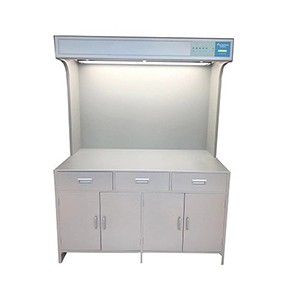

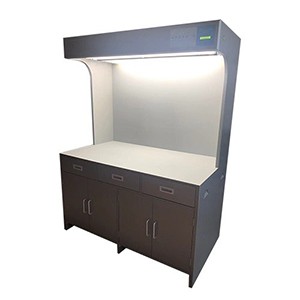

The color viewer light table is widely used in printing, furniture manufacturing, and ink color matching, etc. It is an essential equipment for color quality control. The CAC-130 color viewer light table provides D65, TL84, and F standard light sources (D65, D50 & TL84 can be custom made), which are controlled by a microcomputer and can be quickly switched between different light sources; It has a
Product Description
The color viewer light table is widely used in printing, furniture manufacturing, and ink color matching, etc. It is an essential equipment for color quality control. The CAC-130 color viewer light table provides D65, TL84, and F standard light sources (D65, D50 & TL84 can be custom made), which are controlled by a microcomputer and can be quickly switched between different light sources; It has a timing function and records the usage time of each light source separately.
Under different light source environments, the color of an object exhibits the phenomenon of metamerism, which produces different visual effects and affects the human eye's judgment of color. The color viewer light table is using internationally recognized standard light sources. According to customer needs, it can provide light sources of D65, D50, TL84, UV, U30, CWF, etc. The lifespan of the lamp is mainly determined by the accumulated usage time and the number of times it is turned on. When the lamp tube shows signs of aging, unstable light emission, or black on both sides, please replace it, otherwise it will affect the accuracy of color viewing.
Technical Data
|
Parameter |
Specification |
|
Standard Light Sources |
D65×4 pcs (1200mm), TL84×4 pcs (1200mm), UV×1 pcs (1200mm), F/A x 6pcs |
|
Optional Light Sources |
D50, CWF, TL83 |
|
Color Viewer Table Top Size |
1360×620mm |
|
Color Viewer Table Size |
1360 (Length) ×750 (Width) (mm) |
|
Product Overall Size |
1380(Length)×750(Width)×1800(Height) (mm) |
|
Weight |
120kg |
