- 0.001-10.000mL/min
- ≥35Mpa
- ≤0.1% (1.0mL/min)
- ±0.1% (1.0mL/min)
The IC-100 fully automated ion chromatograph integrates advanced achievements in ion chromatography research both domestically and internationally, combining high detection sensitivity, high operational stability, and modular functionality. Multiple detection modes can be configured according to customer needs: direct conductivity detection, suppressed conductivity detection, amperometric detectio
Product Description
Product Introduction

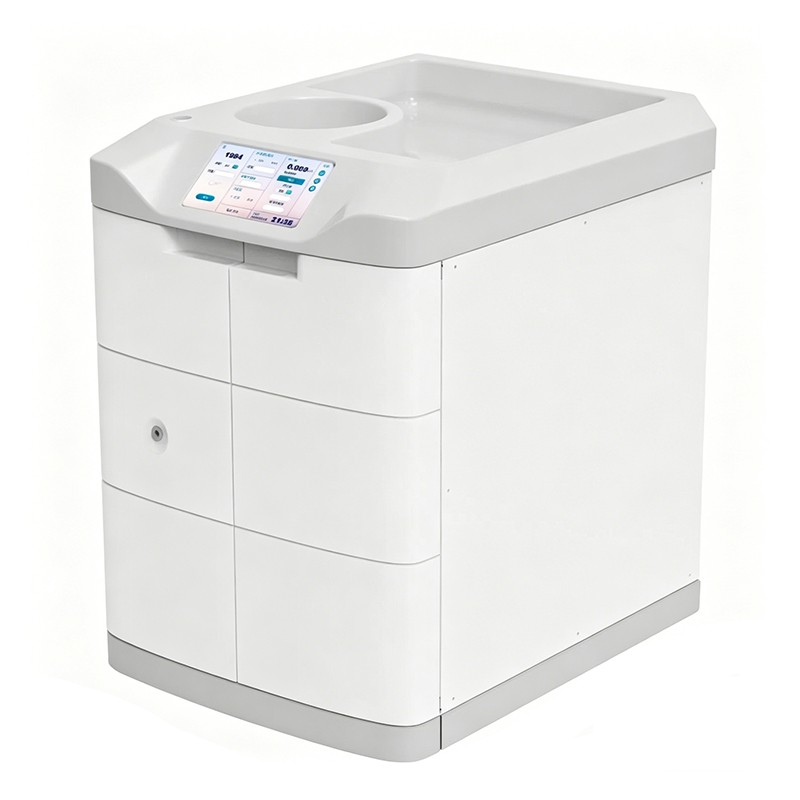

The IC-100 fully automated ion chromatograph can perform suppressed or non-suppressed conductivity detection and amperometric detection. It consists of a main unit, a full PEEK dual-plunger tandem pump, injection valve, guard column/separation column, column oven with preheating function, electrolytic self-regenerating suppressor, conductivity detector with temperature control, amperometric detector, and multi-channel data processing and instrument control software system.
The IC-100 integrates advanced achievements in ion chromatography research both domestically and internationally, combining high detection sensitivity, high operational stability, and modular functionality. Multiple detection modes can be configured according to customer needs: direct conductivity detection, suppressed conductivity detection, amperometric detection, and conductivity-amperometric tandem detection. It is suitable for detection work in various fields such as environmental monitoring, disease control, pharmaceuticals, chemicals, metallurgy, hydrogeology, agriculture, feed, electronics industry, power, nuclear energy research, food safety, and scientific research and teaching.
Product Features
1. Integrated appearance and professional modular component design, all-plastic flow path, no leaching contamination, and a comprehensive flow path protection system.
2. The main unit features a 7.0-inch touchscreen with embedded, simple, and reliable control software. It displays real-time operating parameters such as conductivity, current, flow rate, range, pressure, elution generator reverse control status, six-way valve status, and suppressor status.
3. One-button flushing function for easy and convenient instrument operation.
4. Utilizes a computer interface and touchscreen synchronous control mode, with comprehensive system monitoring functions. It monitors the instrument's operating status in real time, adjusts operating parameters, and has a data information protection memory function for ease of use.
5. Integrated appearance design and a user-friendly GUI graphical navigation system, simple, intuitive, and easy to understand, conforming to user operating habits and facilitating user mastery.
6. Automatic temperature control function ensures constant temperature for the separation column during detection and analysis, and automatically heats up to the appropriate temperature in low-temperature conditions to extend its service life.
7. Strong anti-interference capabilities and rich expandability. It can be equipped with a UV/VIS detector or pH/COND module for the analysis of unconventional samples, offering multiple uses in one instrument.
8. To improve the instrument's sensitivity and stability and meet diverse user testing needs, the entire unit uses industrial-grade electrical components and advanced shielding technology.
9. The connectors and flow paths are resistant to strong acids and alkalis, offering good versatility and compatibility with organic solvents. This improves the system's high-pressure resistance and eliminates the risk of flow path leakage.
10. The main unit can automatically recognize valve switching signals and initiate automatic software analysis, avoiding errors caused by manual operation.
11. The main unit can automatically perform maintenance, periodically flushing all system components to prevent tubing crystallization.
12. When paired with a chromatographic column offering excellent selectivity and separation, it can detect nine common anions in water (including disinfection byproducts) and perform rapid separation of seven common anions.
Technical Data
| No. | Item | Specification |
|---|---|---|
| 1 | Infusion Unit | High-pressure low-pulse dual plunger series pump with inert PEEK pump head and tubing. |
| 2 | Flow Rate Range | 0.001–10.000 mL/min |
| 3 | Maximum Pressure | ≥ 35 MPa |
| 4 | Flow Rate Stability | ≤ 0.1% (at 1.0 mL/min) |
| 5 | Flow Rate Accuracy | ± 0.1% (at 1.0 mL/min) |
Product Application
1. Anion Analysis and Detection
(1) Analysis and detection of nitrite content in cosmetics (GB/T 24800.13-2009);
(2) Analysis and detection of bromate and food additives in wheat flour (GB/T 20188-2006);
(3) Analysis and detection of nitrite and nitrate content in food (GB 5009.33-2010);
(4) Analysis and detection of anion and cation content in the 2010 edition of the Chinese Pharmacopoeia;
(5) Analysis and detection of chloride and sulfate content in concrete admixtures (GB/T 8076-2008);
(6) Analysis and detection of four halide ions (F-, Cl-, Br-, I-) in the halogen-free testing standards of the RoHS directive;
(7) Analysis and detection of anions in graphite anode materials for lithium-ion batteries (GB/T 24533-2009);
(8) Analysis and detection of anions in GB/T 14642-93 Industrial cooling circulating water and boiler water F-, Cl-, PO43-, NO2-, NO3-, SO42-;
(9) Analyze and detect seven common anions and disinfection byproducts in drinking water as specified in EPA: F-, Cl-, NO2-, PO43-, Br-, NO3-, SO42-, ClO2-, BrO3-, ClO3-, etc.;
(10) Analyze and detect inorganic anions and cations and disinfection byproducts such as bromine, chlorite, chlorate, and bromate as specified in GB/T 5750-2006 "Standard Examination Methods for Drinking Water";
(11) Analyze and detect GB/T 8538-2008 Analysis of bromate, chlorite, and chlorate in natural mineral water; monochloroacetic acid, dichloroacetic acid, trichloroacetic acid, etc.;
(12) Analysis and detection of other anions: sodium formaldehyde sulfoxylate, sulfonates, CO32-, SO32-, S2O32-, SeO42-, TeO42-, AsO42-, SiO32-, BO33-, etc.;
(13) Analysis and detection of organic anions: formic acid, acetic acid, propionic acid, butyric acid, valeric acid, malonic acid, oxalic acid, glyphosate, glyoxylic acid, tartaric acid, lactic acid, toluenesulfonic acid, alkylsulfonic acid, methylpropenesulfonic acid, glycolic acid, pyruvic acid, haloacetic acid, malic acid, maleic acid, benzoic acid, sorbic acid, polyphosphoric acid, citric acid, succinic acid, cyclamate, acesulfame potassium, etc.
2. Cation Analysis and Detection
(1) Analysis and detection of common cations: Li+, Na+, NH4+, K+, Mg2+, Ca2+, etc.
(2) Analysis and detection of the content of natural betaine in feed additives (GB/T 21515-2008);
(3) Analysis and detection of the content of choline chloride in premixes (GB/T 17481-2008);
(4) Analysis and detection of organic amines (primary, secondary, tertiary, quaternary ammonium salts, etc.), cadaverine, putrescine, histamine, spermine, etc.
(5) Analysis and detection of other metal ions: Sr2+, Ba2+, Zn2+, Fe2+, Mn2+, Ni2+, Cu2+, Co2+, etc.
3. Ultraviolet/Visible Light Detector
(1) Analysis and detection of SCN-, NO2-, NO3-, melamine, etc.
(2) Analysis and detection of GB/T 5009.33-2010
4. Ampere detector
(1) Analyzes and detects S2-, CN-, I-, sugars, amino acids, aminoglycoside antibiotics, and Fe2+, Fe3+, etc.
