The GC-220 Flow and Pressure Monitoring Gas Chromatograph is a new generation of gas chromatograph with high stability and reliability, suitable for routine testing needs. It is equipped with an advanced electronic pressure and flow measurement and monitoring module. By adjusting the gas path knob, various gas parameters, including the pressure and flow rate of carrier gas, hydrogen, and air, as w
Product Description
Product Introduction

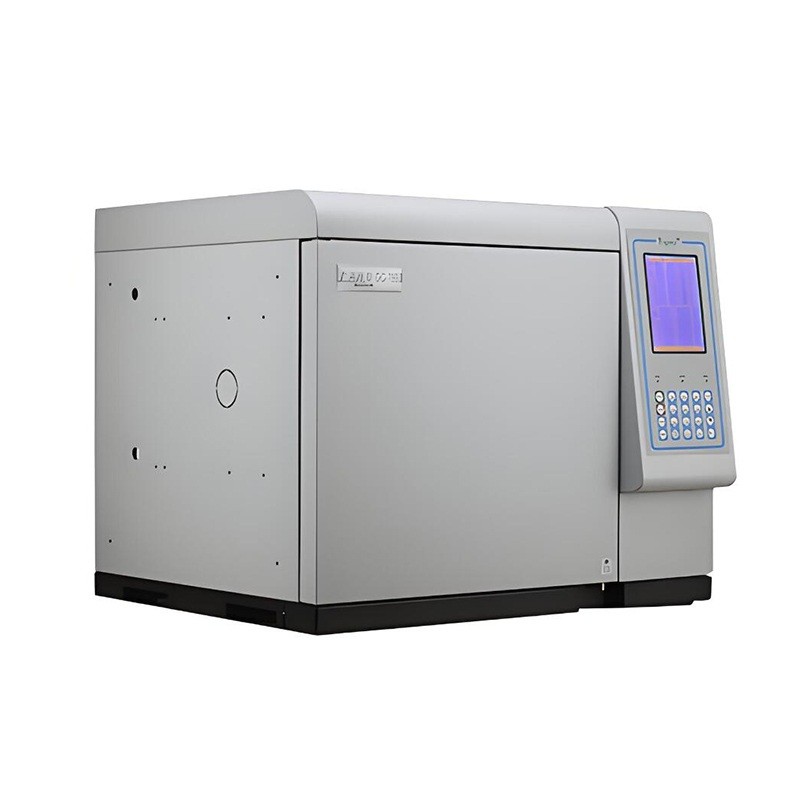

The GC-220 Flow and Pressure Monitoring Gas Chromatograph is a new generation of gas chromatograph with high stability and reliability, suitable for routine testing needs. It is equipped with an advanced electronic pressure and flow measurement and monitoring module. By adjusting the gas path knob, various gas parameters, including the pressure and flow rate of carrier gas, hydrogen, and air, as well as the inlet split ratio and column flow rate, can be easily obtained on the main unit display and workstation. No flow meter measurement or manual calculation is required, making operation extremely simple.
Applications and Detection Indicators
It can be widely used in various analytical fields such as petrochemicals, fine chemicals, biopharmaceuticals, environmental protection, food hygiene, high-purity gases, power, brewing, scientific research, and education, making it the best choice for daily testing.
Gas Chromatograph Performance Characteristics
1. 5.7-inch dot-matrix Chinese-language large LCD screen (color touchscreen optional), supporting Chinese/English switching.
2. Manual and electronic pressure and flow monitoring of the gas circuit, networked communication (using Ethernet interface IEEE802.3), and full computer-connected control.
3. Manual gas circuit control, electronic pressure and flow monitoring parameters.
Manual gas circuit control pressure and flow display method: Electronic pressure and flow measurement and display, and pressure and flow can also be displayed in the reverse control software.
Fully electronic pressure and flow measurement system: Maximum 16 measurement channels.
Pressure Sensor:
Accuracy: <±2% of full scale
Repeatability: <±0.05Kpa
Temperature Coefficient: <±0.01Kpa/℃
Range: 0～0.3Kpa or 0～0.6Kpa
Flow Sensor:
Accuracy: <±2% of full scale
Repeatability: <±0.5% (full scale)
Range: 0～500sccm
4. Supports high-speed heating, maximum rate 80℃/min; suitable for rapid analysis.
5. Temperature can be raised to 450℃, suitable for the analysis of high-boiling-point samples.
6. Supports dual column oven dual rear door mode.
7. Column oven temperature increment of 1℃, accuracy ±0.01℃, approaching that of high-end imported products of the same type.
8. 6 external event channels, 2 auxiliary control output channels.
9. Diverse injection systems: Packed column injection, capillary split/splitless injection, valve injection, automated liquid injection, fully automated head space injection, pyrolysis injection, thermal desorption injection, and purge-and-trap injection are all available.
10. Customized valve systems are available to help users complete complex multidimensional chromatographic analysis tasks.
The Plus model is a multi-purpose gas chromatograph specifically designed for multidimensional application analysis and online analysis.
11. A wide range of detector types, supporting up to three detectors: TCD, HTCD, uTCD, FID, FPD, ECD, NPD, ZD, PDHID, PID, and AID.
12. The program supports a multi-path sample selection (MPV) system with automatic valve number identification, automatic cascade judgment, automatic reset, valve position selection, and valve position analysis memory functions, supporting up to 32 sample path selections.
13. Unique network remote transmission and control functions enable unattended analysis, distributed monitoring, and centralized control.
14. Data can be integrated into a DCS system to complete the statistical analysis and monitoring of chromatographic component content, improving the automation level of production process control.
15. Temperature Control Specifications:
a) Number of Temperature Control Channels: 8
b) Column Oven Temperature Specifications:
Column Oven Temperature Range: 4℃ above room temperature to 450℃ (in 1℃ increments)
*Column Oven Temperature Control Accuracy: Better than ±0.01℃
*Programmed Temperature Rise: 16 stages
*Rise Rate Setting: 0.1～39℃/min (Standard Model); 0.1～80℃/min (High-Speed Model)
*Isothermal Time for Each Stage: 0～999min (in 0.1min increments)
*Programmed Cooling: From 260℃ to 50℃ in approximately 6 minutes
c) Injector, Detector, and Thermal Conductivity Cell Temperature Specifications
*Temperature Range: 4℃ above room temperature to 450℃ (in 1℃ increments)
*Temperature Control Accuracy: Better than ±0.01℃
Gas Chromatograph Detector Data
| Detector Type | Structural Features | Detection Limit | Baseline Noise | Baseline Drift | Linear Range | Special Performance | Other Specifications |
|---|---|---|---|---|---|---|---|
|
FID
|
Cylindrical collector, quartz nozzle |
≤3×10⁻¹² g/s
|
5×10⁻¹⁴ A | ≤1×10⁻¹³ A/30min | ≥10⁷ | — | Automatic ignition |
|
TCD
|
Semi-diffusion structure,
|
— | ≤10 μV | ≤30 μV/30min | ≥10⁵ |
Sensitivity: S≥3000 mv·mL/mg
|
2/4/6/8× digital magnification optional;
|
|
ECD
|
Ni63 radioactive source | ≤1×10⁻¹⁴ g/s | — | — | 10⁴ | Radioactive source: Ni63 | — |
|
FPD
|
Top photomultiplier tube,
|
S: 5×10⁻¹² g/s
|
— | — |
P: 10⁵
|
Max temp: 350℃
|
For sulfur & phosphorus analysis |
|
NPD
|
— |
N: ≤5×10⁻¹² g/s
|
— | — | — | For nitrogen & phosphorus analysis | — |
Application
1. Gas analysis in power transformer oil (GB/T 17623-1998, DL/T 722-2000, DL/T 703-1999)
2. Gas chromatography for safety gas analysis in coal mines (capable of continuous cyclic sampling and analysis of 32 points for 24 hours)
3. Air quality analysis (TVOC, benzene, total hydrocarbons and non-methane total hydrocarbons) (compliant with GB/T 50325-2001, GB/T 18883-2002, GB16927-1996); analysis of workshop exhaust gas and flue gas, and continuous online analysis of VOC, benzene and non-methane total hydrocarbons in flue gas for 24 hours
4. Water quality analysis (compliant with GB/T 5750-2006)
5. Analysis of various industrial fuel gases such as natural gas, refinery gas, cracked gas, and manufactured gas. (Simple single-valve type, broad-spectrum process dual-valve four-column economic type, broad-spectrum process three-valve four-column practical type, broad-spectrum process five-valve six-column high-end type, three-valve four-column TCD type, four-valve five-column dual TCD type, etc.; conforming to GB/T 13610-2003, UOP539, ASTM1945, ASTM D 1946 and GPA2261; custom-made according to specific user samples)
6. Coal gas and biogas analysis (six components: H2, O2, N2, CH4, CO, CO2, unique single-valve sequential change)
7. Sulfides in natural gas (unique single-valve sequential change backflushing method, detecting H2S, CSO, SO2 and total sulfur)
8. High-purity gas analysis, electronic industry gas analysis (minimum detection concentration can reach above 10 ppb)
9. Benzene and toluene analysis in gasoline (conforming to ASTM D3606; SH/T 0713—2002)
10. 11. Analysis of oxygenated compounds in gasoline (compliant with AZTM D4815 and SH/T 0633-1998)
12. Analysis of benzene, toluene, and aromatics in gasoline (compliant with ASTM D5580-1995, SH/T0693-2000)
13. Analysis of hydrocarbon composition (SOA) and monomeric hydrocarbons (PONA) in gasoline (detection of saturated hydrocarbons, olefins, aromatics, and benzene content using a specially designed olefin adsorption trap; compliant with SH/T 0741-2004)
14. Simulated distillation gas chromatography (compliant with SH/T 0558, ASTM D5307, D3710, D6352, D2887)
15. Blood ethanol analysis (compliant with Ministry of Public Security standard GA/T105-1995)
16. VOC analysis of cigarette packs (compliant with YC/T 207-2006), drug residue analysis, and ethylene oxide analysis in medical devices (compliant with GB/T 16886.7-2001), Solvent Residue Detection in Packaging Materials
17. Greenhouse Gas Dedicated Gas Chromatography (CO2, CH4, and N2O, 0.1ppm—100%)
18. Catalysis Evaluation, High-Pressure High-Temperature Online Analysis System (System chromatography customized upon request)
19. Process Gas Chromatograph (Industrial Chromatography), Sample Pretreatment, Analytical Cabin Construction, Multi-Path Sample Selection (Supports up to 32 sample selection channels), etc.
