Product Description

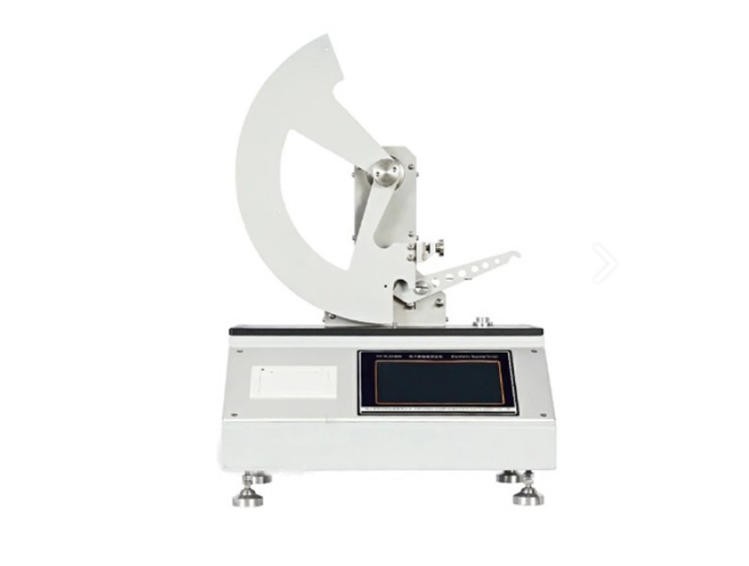

ST-006A Electronic Tearing Tester is an electronic tear tester developed by our company according to the national standard for determining the tear properties of paper or low-quantity paper and corrugated paper. It is widely used in the field of testing of paper materials in colleges and universities, research institutes, quality inspection departments, and paper printing and packaging production departments.

Application Range

Paper,cardboard,carton,color box,shoe box,paper tray,film,cloth,leather,etc.

Application Function

Measuring tear strength

Product Features

Ø Automatic release pendulum, high test efficiency

Ø  Self-test function

Ø In English and Chinese, easy to use

Ø Feel free to query and delete inappropriate test records

Ø Real-time display of angular changes during testing

Ø Automatically calculate, count, and print test results

Ø Thermal printer core, no need to use ink and ribbon, no noise when working, fast printing speed, etc.

Key Technical Parameters

Power Supply                                                AC(100~240)V 50/60Hz 50W

Working Environment                        (10~35)℃ Humidity≤85％

Measurement Range                          A:(50-8000mN)B:(8000~16000mN）

Minimum degree                                             0.1mN

Indicating Accuracy                                                 ±1％

Indication Variation Accuracy                   ≤1％

Tearing arm                                                   （104±1）mm

Impact Angle                                                             (27.5 degree±0.5degree)

The distance between the paper clips     （2.8±0.3）mm

Sample length of incision                             （20±0.5）mm

Print                                                 Built-in thermal printer

Communication interface                              RS232

Dimension                                                                       410(L)×310(W)×550(H)mm

Net Weight                                                                  23kg
