Atomic Fluorescence Spectrophotometer AFS-6680 reduces the excitation Angle between light source and PMT on the basis of the original model, which not only increases the intensity of the received fluorescence signal, but also reduces the background interference, so as to improve the instrument sensitivity. The front door of the instrument adopts translucent corrosion-resistant ABS magnetic absorpt
Product Description
Product Introduction

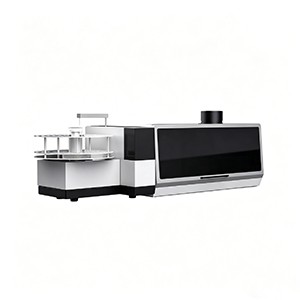

Atomic fluorescence spectrophotometer AFS-6680 reduces the excitation Angle between light source and PMT on the basis of the original model, which not only increases the intensity of the received fluorescence signal, but also reduces the background interference, so as to improve the instrument sensitivity.
The front door of the instrument adopts translucent corrosion-resistant ABS magnetic absorption structure to avoid the interference of external air circling, while the chemical reaction of the test process can be observed online.
Add a lane splitting signal control module on the circuit, when two channels are measured at the same time, no channel interference can be guaranteed even if the concentration of two elements measured in the sample is very different. It is especially suitable for the detection department with large sample size and simultaneous determination of two channels.
Atomic fluorescence spectrophotometer AFS-6680 atomic fluorescence photometer is widely used in teaching and research, health and epidemic prevention, medical clinical inspection, drug inspection, food hygiene inspection, urban water supply and drainage inspection, agricultural products inspection, beverage inspection, environmental monitoring, cosmetics inspection, metallurgical sample inspection, geological survey detection and other industries. The innovative software and hardware design ensures the accuracy, safety and ease of use of sample analysis, and the maintenance of the instrument is simple and convenient.
(2) hydride forming elements As, Sb and Bi are not larger than 500μg/mL.
(3) Au< 5μg/mL Ag< Determination of 25μg/mL without interference.
(4) When Au, Ag, Pt, Pd and other elements have interference, thiourea can be added to eliminate the interference of precious metals, and KBH4 concentration can be reduced or iron salt can be added to reduce the interference of the above elements.
Hydride generation system
Using a multifunctional reaction module, the module highly integrated hydrogenation reaction, gas-liquid separation, waste liquid removal and other functions in one. The results of testing for inorganic arsenic are greatly affected by the large number of bubbles produced. Multifunctional reaction module can effectively reduce the bubble, not only simplifies the pipeline, but also reduces the fault point, directly insert and remove the loading and unloading, for the operation and maintenance of the instrument brings convenience.
* Atomizer: hydrogenation shield atomizer
* Carrier gas/shielding gas: Argon
Sample preparation and introduction
* Steam: The new discontinuous flow without residual steam reaction system, reaction efficiency is higher
* Hydride generator: The high efficiency gusher flow two-stage chemical gas-liquid reaction separation device, chemical reaction is more complete, the gas-liquid separation effect is better, especially suitable for rock, ore, soil and other complex sample determination
* Peristaltic pump: 6-channel peristaltic pump, with two pressure adjustable clamp, software speed regulation
* Exhaust system: Unique pressure self-balancing liquid waste removal function, no additional pump exhaust
Optical system
* Optical design: Short focal length, non-dispersive, integrated closed optical design
* Dual channel: Two channels and two elements can be measured simultaneously
* Light source: hollow cathode lamp using coding technology, the instrument automatically identifies the hollow cathode lamp, and can monitor the working state and service life of the hollow cathode lamp
* Detector: imported photomultiplier tube
* Linear range: greater than three orders of magnitude
Data processing system:
* Can switch off line/on line at will. Single/multiple Windows open at will. Single/multi-database option. Management sample correction to further improve measurement accuracy. Unlimited report formatting, measurement data can be switched to EXCEL for modification. Measurement data can be shared through LANClinical Medicine (Se, Pb, Hg, As...) Blood, urine, tissue, nails, hair, etc
Agriculture/Food Safety (As, Hg, Pb, Sb, Se...) Dairy products, meat, alcohol, feed and animal by-products, tobacco, etc
Metallurgy (Ge, Hg, Se, As, Sb, Te,Au...) Rocks and ores, steel and alloys, metals, etc
Fossilization (Hg, Pb, As, Cd, Sn, Zn...) Fuel, lubricating oil, crude oil, etc
