- ST-1000

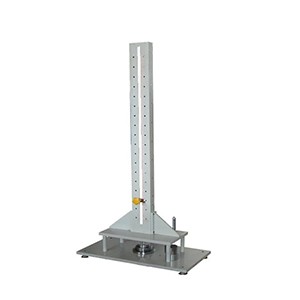

Plastic Dupont impact tester used for testing the plastic specimen, PVC specimen, coating specimen resistance to impact performance. The specimen in the machine ram, to a certain height of the hammer impact, check the damage, deformation or peeling situation.
Product Description
Plastic Dupont impact tester used for testing the plastic specimen, PVC specimen, coating specimen resistance to impact performance. The specimen in the machine ram, to a certain height of the hammer impact, check the damage, deformation or peeling situation.
Working Principle
Dupont Impact Test machine to be provisioned of the weight of the steel ball, adjust a certain height, dropfeely and attack samples, observe the degree of damage.
Standards
Dupont Impact Test machine meets below standards：JIS-K5600(coating), ASTM-D2794, JIS-K5400 and so on.
Technical Data
|
Test sample |
Plastic sample |
Coating sample |
|
Drop heigt |
80~1000mm, 50mm interval |
50~500mm, 50mm interval |
|
Ball drop controlling mode |
Manual setting |
|
|
Impact ball weight |
1000,2000G |
300,500,1000G |
|
Ball diameter |
7.9mm(5/16in) |
1/2,1/4,3/16,1/8,1/16in |
|
Sample base diameter |
Plane 8.1mm,15mm |
plane 1/2,1/4,3/16,1/8,1/16in |
|
machine dimension(D*W*H) |
450* 580*1280mm |
300*580*770 |
|
Weight |
60kg |
45kg |
