- ST-800

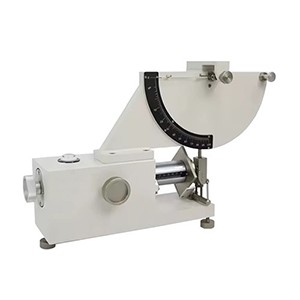

Pendulum rubber rebound resilience tester is designed to determine the rebound resilience of rubber, flexible cellular materials, thermoplastics, elastomers, soft elastic foams subjected to impact by a pendulum from a specified height, to obtain the optimum applicability, the quality differentiation of various materials, and changes of characteristics after the aging test, etc. The rebound resista
Product Description
Pendulum rubber rebound resilience tester is designed to determine the rebound resilience of rubber, flexible cellular materials, thermoplastics, elastomers, soft elastic foams subjected to impact by a pendulum from a specified height, to obtain the optimum applicability, the quality differentiation of various materials, and changes of characteristics after the aging test, etc. The rebound resistance test is an effective method to get quality assurance during the rubber production process or on the finished products.
Test standard
DIN 53512, ISO 4662, Adidas CE-12, DIN53573, ASTM D 1054, etc.
Technical Data
|
Impact Energy |
0.5 J, 0.2 J |
|
Range of Display |
2592*1944 (5 million pixel CCD digital camera) |
|
Impact Angle |
90 degree |
|
Length of Pendulum |
200 mm |
