Product Description

High-Performance Liquid Chromatography (HPLC) is a highly precise and widely used analytical instrument for qualitative and quantitative analysis of organic compounds in liquid samples. Utilizing high-pressure elution and high-efficiency chromatographic separation technology, the instrument separates target components according to differences in molecular polarity, adsorption capacity, and retention time, achieving accurate detection of trace and conventional substances in complex sample matrices.

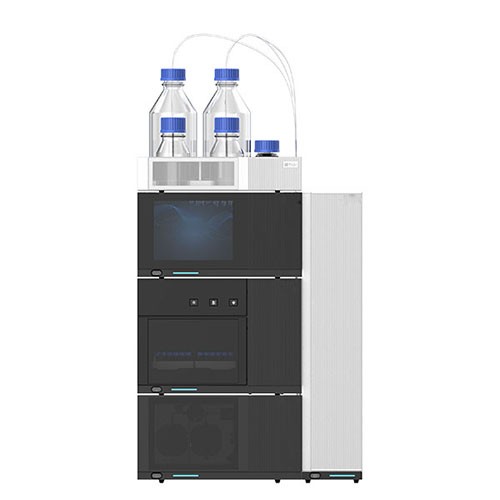

This modular HPLC system consists of a solvent delivery unit, sample injection unit, column temperature control unit, high-sensitivity detection unit, and professional chromatography data workstation. Equipped with an independent screw direct-drive dual-plunger pump and valve-free automatic purging design, it delivers stable flow rate output, extremely low pressure pulsation, and excellent repeatability under full pressure and full gradient conditions. The ultra-low dead-volume flow path and high-precision optical calibration system effectively reduce extra-column diffusion, ensure sharp and symmetrical peak shapes, and greatly improve detection sensitivity and resolution.

T75 Solvent Unit

1. Solvent remaining volume monitoring function to avoid solvent depletion

Built‑in sensor monitors mobile‑phase remaining volume in real‑time.

2. Side‑shift door design for convenient maintenance

Cabinet side‑shift door conceals pipelines for a cleaner appearance and simplifies instrument maintenance.

D75 Detector Unit

1. Flexible multi‑detector expansion for various sample types

Supports special detector expansion and hyphenated configurations, including VWD, DAD, ELSD, RID, FLD, CAD, etc.

Compatible with micro flow cell, analytical flow cell and semi‑preparative flow cell.

2. Ultra‑low dead‑volume design for sharper peaks

Optimized micro flow cell, system flow path (ID 0.12 mm) and zero‑dead‑volume high‑pressure hand‑tight fittings greatly reduce extra‑column effects, improve detection sensitivity and deliver better peak shapes.

3. High‑accuracy full‑range wavelength calibration

Multi‑point linear wavelength calibration using holmium glass ensures high wavelength accuracy across the full measurement range.

4. Human‑machine interactive touch screen for separated operation‑monitoring

Large‑size color touch screen synchronized with the Labmate CDS workstation.

Enables off‑instrument laboratory monitoring of instrument status, one‑click purging and syringe degassing operations.

P75 Pump Unit

1. Valve‑free automatic purging to reduce maintenance cost

One‑click automatic purging at the control terminal enables true unattended remote operation. Valve‑free purging design effectively lowers maintenance expenses.

2. Independent screw‑direct‑drive dual‑plunger pump: superior accuracy over full pressure and full proportion ranges for reliable method reproducibility

Stroke adjustment combined with precise logic control of high‑speed solenoid valves guarantees accuracy and consistency across full pressure and full proportion ranges. Suitable for standard HPLC and UHPLC set‑ups.

3. Pulsation‑damper‑free design for faster pressure ramp‑up and stable baseline

Real‑time stroke adjustment via pressure feedback achieves extremely low pressure pulsation over the full pressure range.

Pulsation‑damper‑free construction delivers faster pressure build‑up.

LabMate CDS — Your trustworthy lab partner

1. Network‑based workstation: overview of all lab instruments with one‑click monitoring switching

Network‑ready architecture supports GC / LC ecosystem communication. Customizable LIMS integration and expansion for third‑party device connectivity.

One‑click switch between networked instruments without leaving the status interface for real‑time condition monitoring.

2. Stand‑alone workstation: control up to 4 instruments with multi‑sequence management

The stand‑alone version connects to maximum 4 GC/LC instruments.

Task management covers multiple sequence statuses including analysis progress, total sequence runtime, mobile‑phase consumption and wash‑solvent consumption to facilitate pre‑sequence preparation.

Automatically recognizes sample tray formats; supports single‑select / multi‑select of sample vials and drag‑and‑drop editing in sequence tables.

One‑click import / export of sequence tables in EXCEL / CSV format for convenient editing.

O75 Column Oven Unit

1. High‑efficiency heat‑exchange for fast equilibration

Innovative thermal‑exchange design provides tighter contact between pre‑heating block and Peltier element for higher heat‑exchange efficiency.

2. Multi‑column & multi‑valve expansion for complex separation requirements

Optional switching valves enable 2D‑LC, column switching, column back‑flushing, on‑line solid‑phase extraction, dual‑column cyclic separation, flow‑path switching and other separation‑analysis modes.

3. Intelligent tracking of column usage to prevent column performance degradation

Automatically records injection count, analysis pressure and other column‑related data to support column‑replacement decisions and service‑life assessment.

Compatible with chromatography columns of any brand.

S75 Sample Injector Unit

1. Multi‑mode injection for zero loss of precious samples and ultra‑low carry‑over

Optional injection modes such as high‑pressure non‑destructive Split‑Loop injection and Pulled‑Loop loop‑based quantitative injection.

2. Anti‑condensation precision‑temperature‑controlled sample tray

Precise temperature‑controlled sample tray. Thermostatic chamber volume reduced from conventional 6 L to 1 L (‑83 %). Circulating fan circulates dry cold air to displace moist hot air and minimize condensate formation.

3. Shortcut‑key panel

Injector‑panel shortcut keys control lighting, temperature control and sample tray in/out movement.
