- ST-6014H
- 5T/10T/20T/30T
- 300×300 mm or 250 x 250 / 350 x 350 /400 x 400 /450 x 450 / 500 x 500 / 600 x 600mm
- Ambient - 250℃/custom made
- 2.5℃

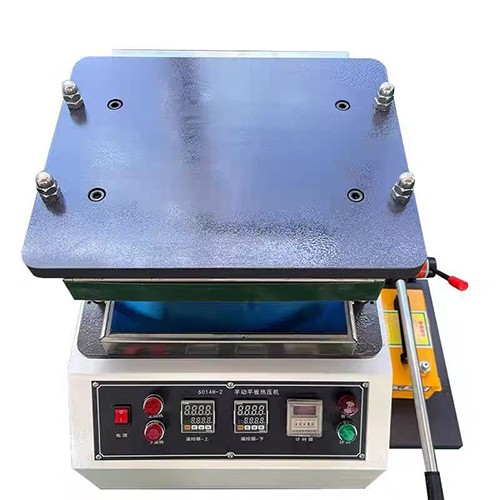

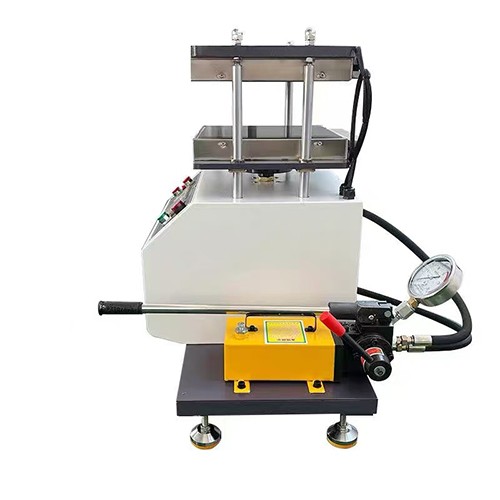

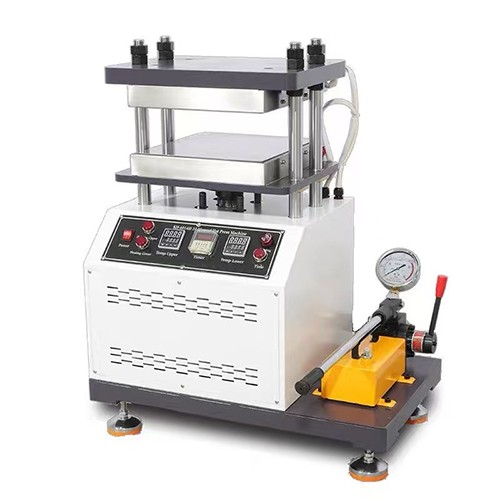

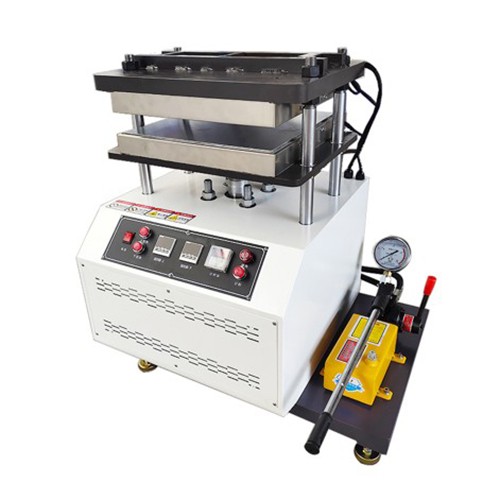

The Rubber Vulcanizing Press Machine ST-6014H is primary equipment used for pressing and molding various rubber molded and non-molded products. It can also be used for pressing various thermosetting plastics and foamed rubber and plastic products. It features an independent power unit and electrical system, with centralized button control. Both working pressure and heating temperature are adjustab
Product Description
The Rubber Vulcanizing Press Machine ST-6014H is primary equipment used for pressing and molding various rubber molded and non-molded products. It can also be used for pressing various thermosetting plastics and foamed rubber and plastic products. It features an independent power unit and electrical system, with centralized button control. Both working pressure and heating temperature are adjustable within a certain range. This model is manual type.
Rubber Vulcanizing Press Machine Technical Data
| Item | ST-6014H‑10 | ST‑6014H‑20 | ST‑6014H‑30 |
|---|---|---|---|
| Pressure Capacity | 10T | 20T | 30T |
| Pressure Gauge | Manual hydraulic pressure gauge control | Manual hydraulic pressure gauge control | Manual hydraulic pressure gauge control |
| Platen Size |
300×300 mm or 250 x 250 / 350 x 350 /400 x 400 /450 x 450 / 500 x 500 / 600 x 600mm |
300×300 mm or 250 x 250 / 350 x 350 /400 x 400 /450 x 450 / 500 x 500 / 600 x 600mm |
300×300 mm or 250 x 250 / 350 x 350 /400 x 400 /450 x 450 / 500 x 500 / 600 x 600mm |
| Platen Hardness | 50‑60HRC | 50‑60HRC | 50‑60HRC |
| Platen Flatness | ≤0.03 mm | ≤0.03 mm | ≤0.03 mm |
| Platen Parallelism | ≤0.16 mm | ≤0.16 mm | ≤0.16 mm |
| Temperature Range | Ambient ~ 250℃【Max. 500℃ customizable】 | Ambient ~ 250℃【Max. 500℃ customizable】 | Ambient ~ 250℃【Max. 500℃ customizable】 |
| Temperature Uniformity | 2.5℃ 【Larger platen leads to poorer temperature uniformity】 | 2.5℃ 【Larger platen leads to poorer temperature uniformity】 | 2.5℃ 【Larger platen leads to poorer temperature uniformity】 |
| Temperature Control Mode | PID auto‑tuning with high‑precision sensor, display accuracy: ±0.1℃ | PID auto‑tuning with high‑precision sensor, display accuracy: ±0.1℃ | PID auto‑tuning with high‑precision sensor, display accuracy: ±0.1℃ |
| Timer | LED timing range: 0.1S ~ 99min ~ 9.9hr | LED timing range: 0.1S ~ 99min ~ 9.9hr | LED timing range: 0.1S ~ 99min ~ 9.9hr |
| Heat‑up Time | Ambient ~160℃ approx. 15 min | Ambient ~160℃ approx. 15 min | Ambient ~160℃ approx. 15 min |
| Heating Plates | 2 pcs, independent temperature setting for each plate | 2 pcs, independent temperature setting for each plate | 2 pcs, independent temperature setting for each plate |
| Heating Method | Electric heating | Electric heating | Electric heating |
| Cylinder Stroke | Max.100 mm【Customizable】 | Max.100 mm【Customizable】 | Max.100 mm【Customizable】 |
| Cylinder Speed | 5 mm/s【Manual】 | 5 mm/s【Manual】 | 5 mm/s【Manual】 |
| Pressure Gauge Range | 0‑200kg/sq.cm | 0‑200kg/sq.cm | 0‑200kg/sq.cm |
| Main Unit Dimension | 950×550×700 mm | 950×550×800 mm | 950×550×900 mm |
| Power Supply | 3φ, AC220V | 3φ, AC220V | 3φ, AC220V |
| Weight | ≈270 kg | ≈330 kg | ≈370 kg |
(Pressure capacity 5 ton can be custom made)
Rubber Vulcanizing Press Machine Configuration List
Name
Qty.
Note
Hydraulic
cylinder
1 Unit
Manual hydraulic
pump
1 Unit
Japanese
imported sealing rings
1 Unit
Taiwan/YUTiEN
Temperature controller
1 Unit
Imported
Heating elements
12 PCS
Imported American Materials
Filter
1 Unit
USA/Foise
Pressure Gauge
1 Unit
Exhaust fan
1 Unit
NEDFON
Residual current device
1 Unit
SCHNEIDER
Fuse
1 Unit
Made in China
Solenoid valve
1 Unit
SCHNEIDER
Contactor
1 Unit
SCHNEIDER
Main Machine with Hot Pressure Plate
1 Unit
Made in China
RVG-03 Guided relief valve
