Product Description

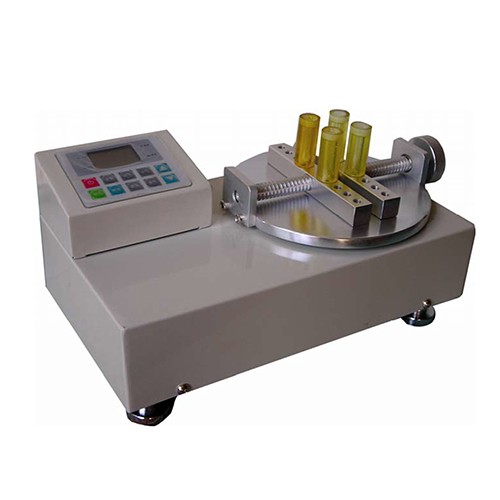

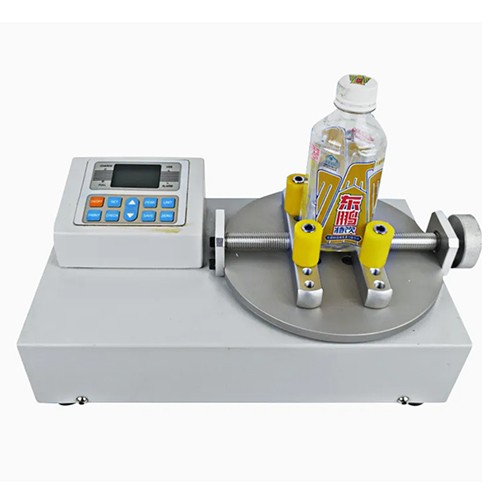

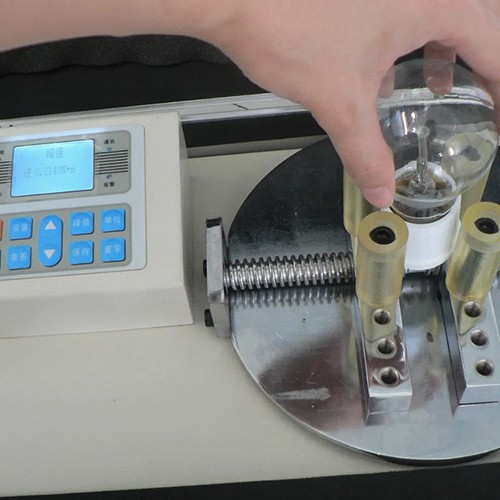

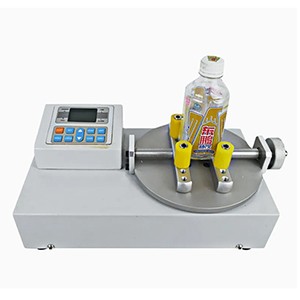

The ST-OTS series bottle cap torque meter is an instrument used to measure the torque of various bottle caps (such as beverage bottle caps, cosmetic bottle caps, medicine bottle caps, etc.), lamp holders, etc. It can also measure the torque of products such as car rearview mirrors, door and window wrenches, and contact lens caps using a special fixture. It is widely used in electrical manufacturing, machinery manufacturing, automotive light industry, and professional scientific research and testing industries. It is an easy-to-operate, high-precision, and cost-effective portable testing tool.

Product Features and Advantages

1. Torque magnitude is displayed on an LCD screen, providing simple and accurate readings, with a minimum reading of 0.0001 N.m;

2. It offers three testing modes: peak value, automatic peak value, and real-time value;

3. It can operate clockwise and counterclockwise, measuring torque in both tight and loose components;

4. Simple and robust structure;

5. Measuring object diameter: 1.5–20 cm;

6. Powered by a rechargeable NiMH battery;

7. USB interface output, with included synchronization software, allowing test data to be input to a computer via data cable to obtain test curves and export for detailed analysis;

8. 120% full-scale overload protection;

9. Conversion between N.m, kgf.cm, and lbf.in test units;

10. Environmentally friendly, with automatic shutdown function in case of operation failure;

11. Large memory capacity, storing up to 99 sets of test data;

12. Upper and lower limit setting function, with indicator lights for exceeding upper and lower limits and a buzzer alarm for exceeding the upper limit;

Technical Data

Packing List
