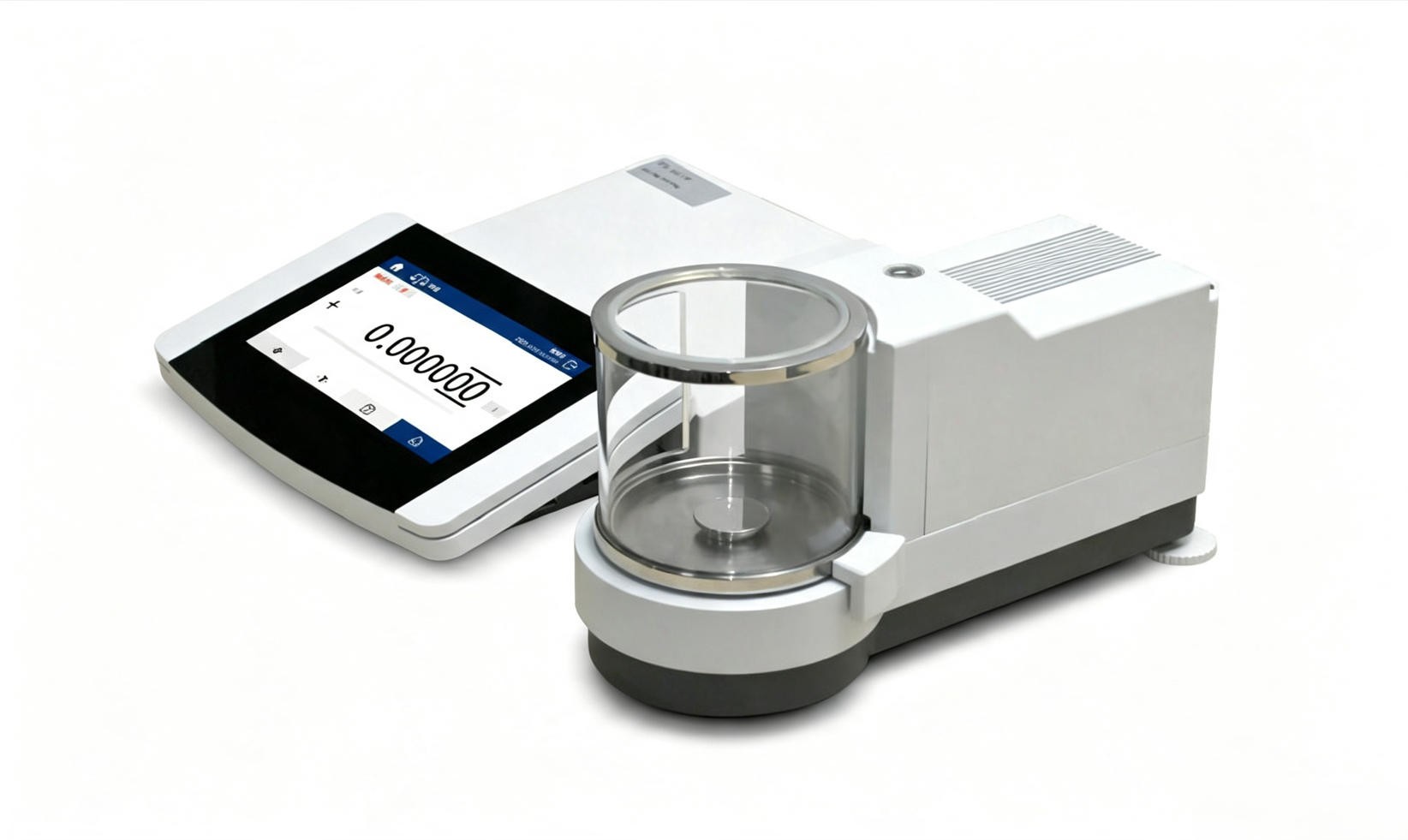

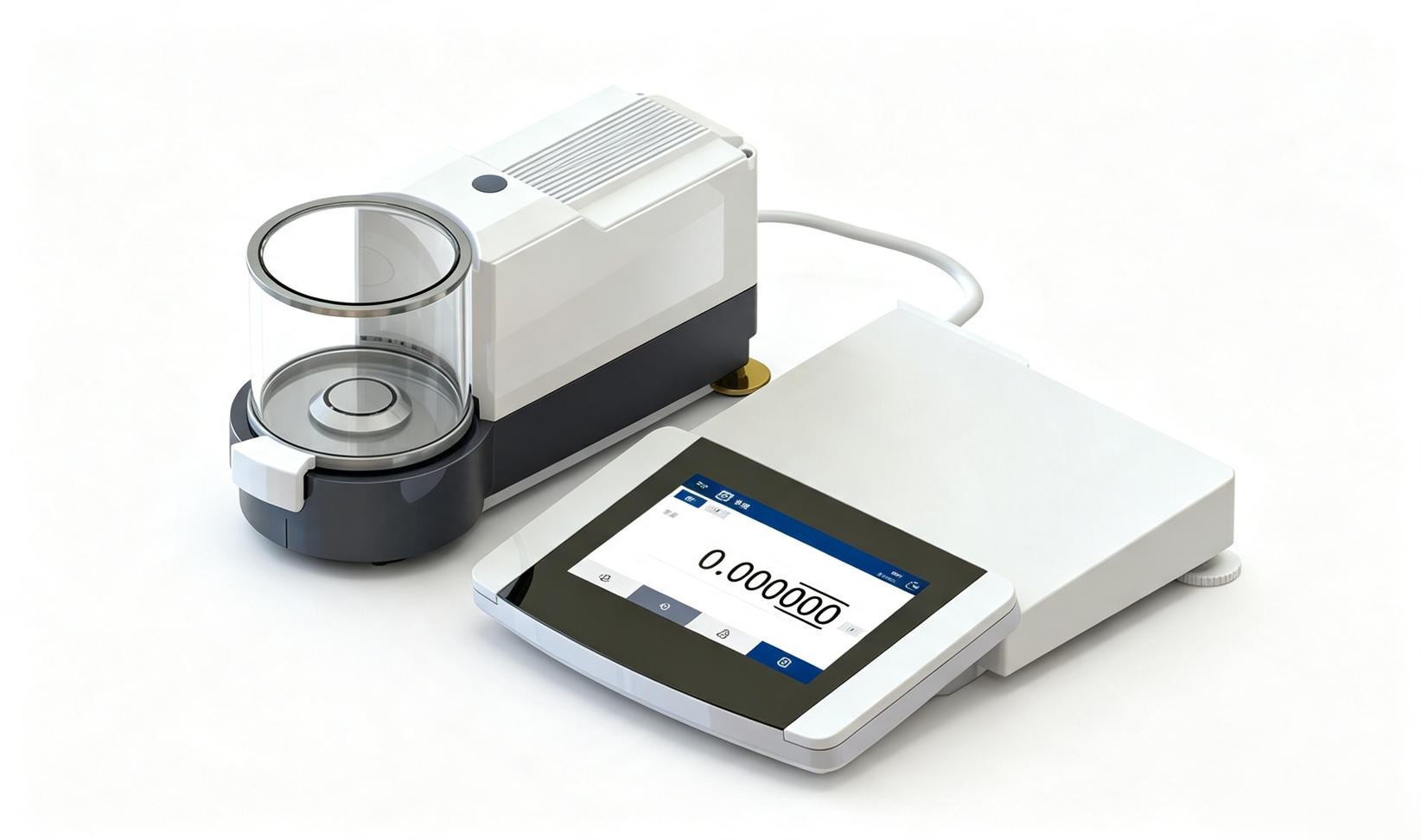

Analytical Balance 0.001mg micro Analytical Balanza 0.01mg laboratory Touchscreen Micro Balance 0.01mg
Product Description
Product Performance Overview
Micro analytical balances are designed for weighing tiny samples. Equipped with proprietary monolithic electromagnetic force sensors, machined from a single block of high-purity aluminum alloy via high-precision integrated cutting. This design eliminates hundreds of discrete components found in traditional sensors, delivering highly integrated structure and superior durability. Consistent raw materials make the sensor far less susceptible to temperature fluctuations for outstanding long-term stability. Ultra-precision machining delivers ultra-high resolution and fast response speed. Featuring auto-calibration technology with internal weight calibration triggered by temperature drift and timer settings. The color intelligent touch screen with Chinese UI enables safe, convenient balance operation.
Application Scope
Ideal for laboratory quality control, chemical labs, particulate matter weighing and support bracket weighing.
Core Advantages
- Unique split-body design
- Optimized appearance and material construction
- Standard static electricity detector
- Optimized micro sample dosing & weighing function
-
Product Dimensions
Split host unit: 295mm(L) × 90mm(W) × 150mm(H)
Connecting base: 265mm × 200mm
Core Module Introduction
| Module | Description |
|---|---|
| Monolithic Sensor | The proprietary ultra-monolithic sensor serves as the core weighing component, directly determining weighing speed, accuracy and stability. Integrated into XE series balances, it meets laboratory requirements for ultra-high precision, accuracy and measurement range. |
| Display Unit | Adopts full-screen large display technology to deliver a simple, clear UI, bringing users convenient operation and intuitive visual experience. |
| Internal Calibration | Built-in IsoCAL internal calibration & adjustment function to guarantee accurate weighing results. Fully automatic calibration controlled by temperature and timer. |
| Application Programs | Pre-installed with 12 built-in application programs; printed and exported data fully comply with GLP/GMP standards. |
| Communication Interfaces | Automatically recognizes D&T dedicated printers and secondary displays; standard RS232 port enables easy connection to peripherals. Directly connect to PC, transfer weighing data to Excel via standard USB-C port for data storage & export. |
| Level Adjustment (Optional) | Motorized automatic level adjustment enables fast, effortless horizontal calibration. |
Technical Specifications
Item
Parameter
Model
ST216S
Maximum Capacity (g)
21
Readability (μg)
1
Repeatability (μg)
2
Linearity Error (μg)
2
Pan Diameter (mm)
Φ30
Overall Dimension (L×W×H, mm)
90 × 295 × 150
Calibration Mode
Internal Automatic Calibration
