- ST-B1001
- 0.4-0.8 MPa (clean and dry)
- 0kPa ~ 100kPa
- High Precision & Fast Response
Air-tightness detector adopts the principle of direct pressure, uses air as the medium to detect the leakage of product,non-destructive testing instrument.
Product Description
Air-tightness detector adopts the principle of direct pressure and uses air as the medium to pick up the leakage of the product. It is a non-destructive testing instrument.The working principle is to inflate the test product to the specified air pressure, then close the valve, after a period of stability, measure the change of air pressure during the test period, calculate the leakage through conversion.With its high precision and complete function, this instrument is widely used in sealing testing of open products or parts of closed products.

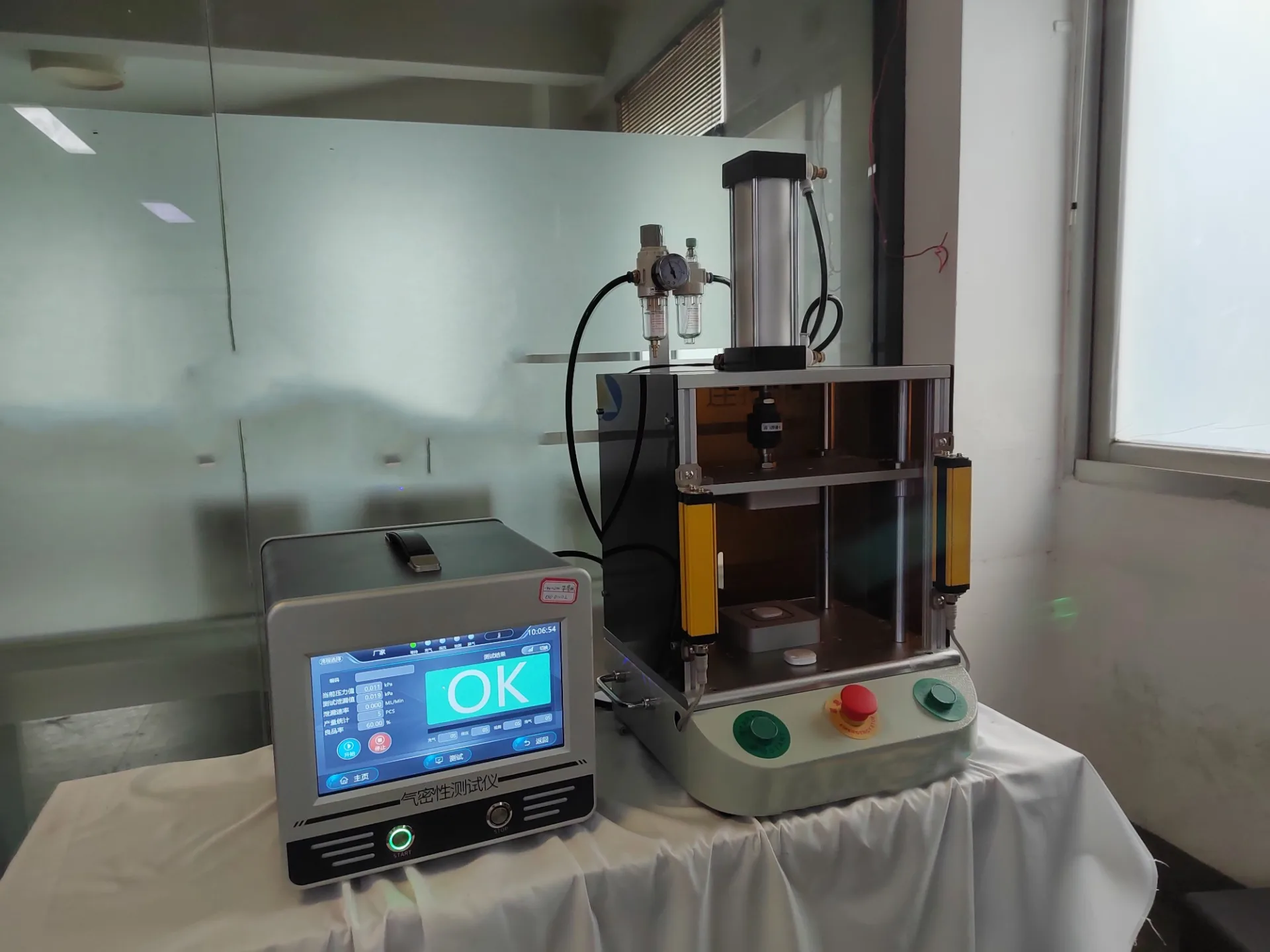

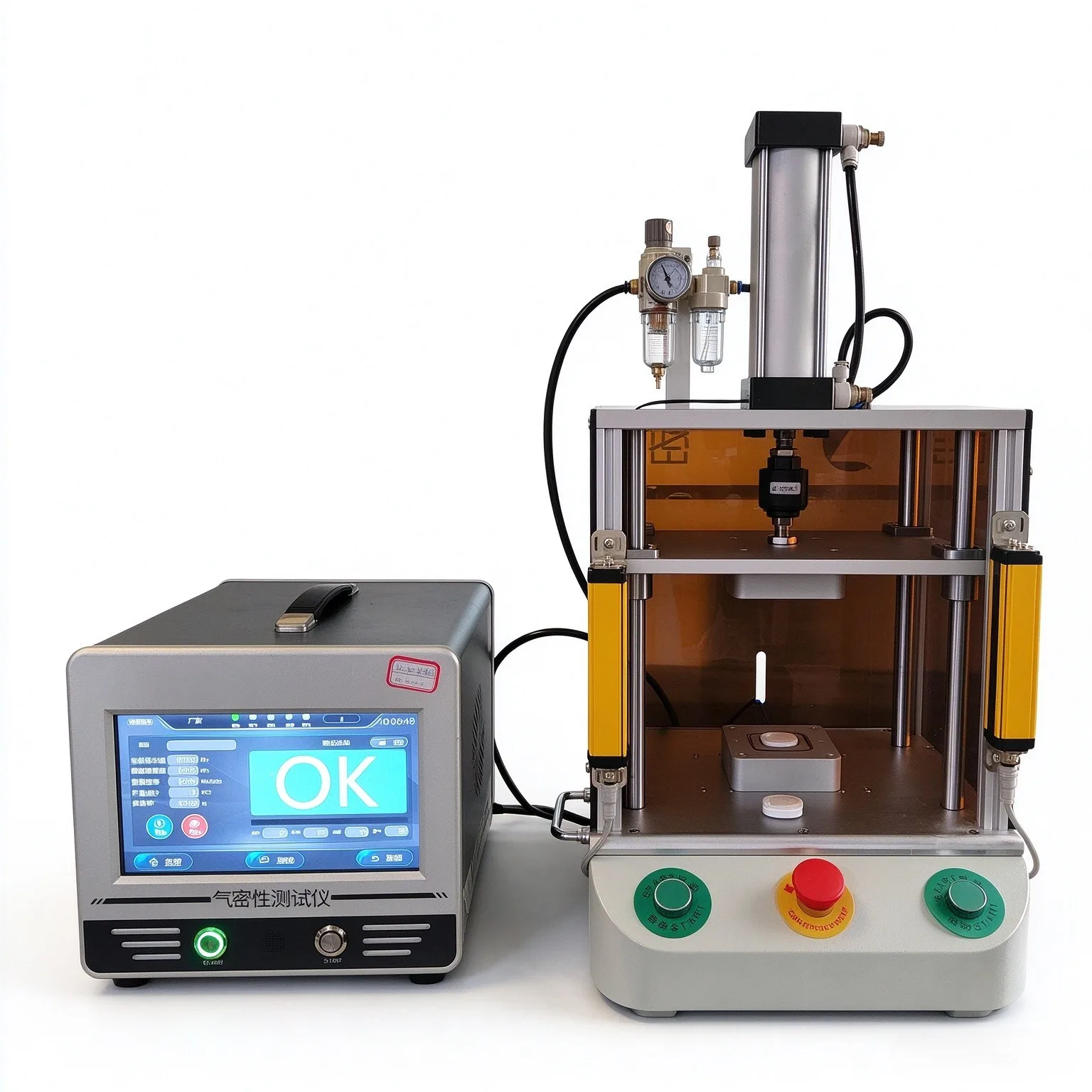

Air leak tester/air tightness detector/Multi-channel waterproof tester
Functional features

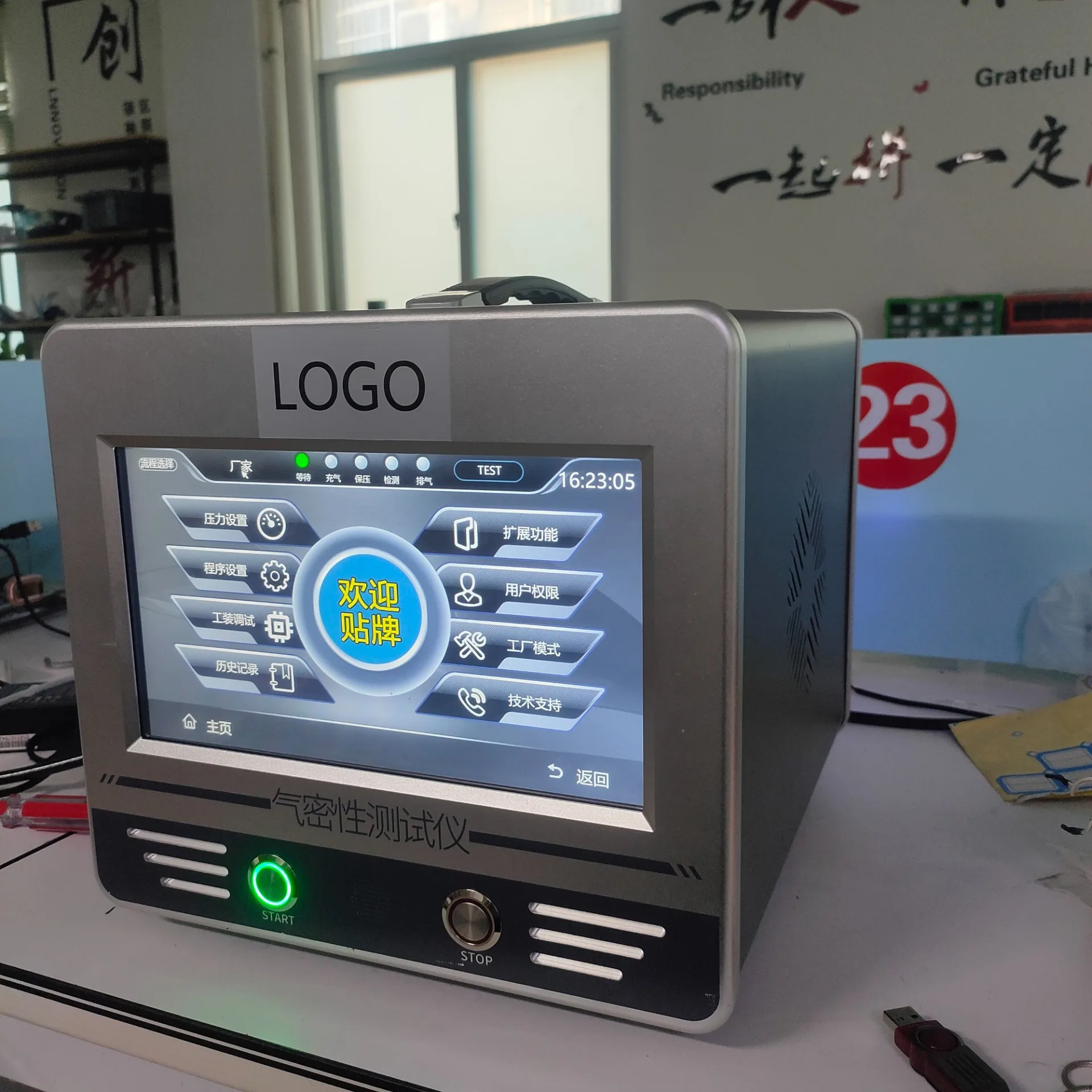

7 inch touch screen display, Chinese and English language switch.
High resolution 24-bit pressure AD converter.
Large leakage, small leakage 2 alarm functions.
OK,NG computing function.
The XY axis curve shows the recording of test pressure and leakage.
Test pressure units KPa, mbar, Psi, KGF /cm2,inn hg,mm hg
Leakage unit Kpa,ml/min
8 sets of channel parameters save, can be external toggle program
Usb disk history storage, query, print, delete, screenshot
PLC input and output I/O interface, can connect automatic equipment
Volume measurement of test products (optional)
RS485 communication interface (optional)
Barcode scanner interface (optional)
Microprinter interface (optional)
Application fields
Automotive industry, aerospace industry, home appliance industry, medical industry, bathroom industry, packaging industry, new energy industry.
air leak tester/air tightness detector/Multi-channel waterproof tester
Technical Specification
| Item | Parameter |
|---|---|
| Test Medium | Standard compressed air or agreed medium |
| Air Supply Requirement | 0.4-0.8 MPa (clean and dry) |
| Power Supply Requirement | AC220V (±15%), 50Hz, grounded |
| Ambient Temperature | 0-50°C |
| Ambient Humidity | ≤95% (non-condensing) |
| Number of Test Channels | 1 |
| Pressure Type | Positive pressure |
| Pressure Regulation Accuracy | 0.1%F.S |
| Pressure Sensor Measuring Range | 0kPa ~ 100kPa |
| Pressure Sensor Full Scale Accuracy | 0.1%F.S |
| Minimum Pressure Setting Unit | 1Pa |
| Leakage Resolution | 1Pa |
| Instrument Dimension | 330mm284mm285mm |
| Instrument Weight | 8.5KG |
| Pressure Regulation Mode | Mechanical pressure regulation |
