The portable metallographic microscopes come with a rechargeable vertical illumination source, making them very convenient to carry. They can be used in the field or when it is not possible to prepare samples to identify the microstructure of various metals and alloys. They can be widely used in factories and laboratories for the quality assessment of castings, raw material inspection, or research
Product Description
Product Introduction

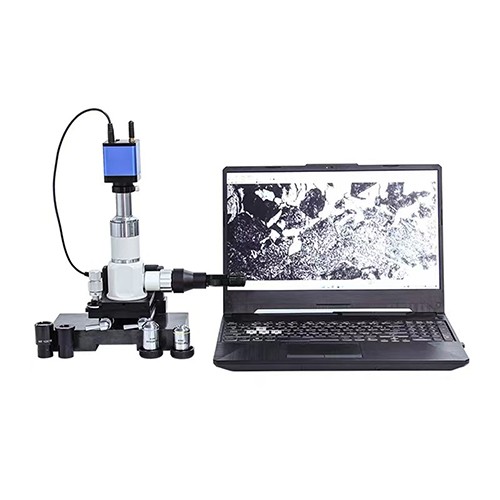

Portable metallographic microscopes ST-MM1000 are suitable for on-site metallographic inspection and failure analysis of various large work pieces. They eliminate the need for cutting and sampling, allowing for direct grinding and polishing of the work piece, thus ensuring its integrity. The microscope base features a magnetic holder, allowing direct attachment to the work piece for on-site observation of the metallographic structure. Portable metallographic microscopes are applicable to industries such as aerospace manufacturing, machinery manufacturing, vehicle manufacturing, boiler and pressure vessel manufacturing and inspection, petrochemicals, railways, shipbuilding, power plants, equipment installation, large molds, safety inspection, quality supervision, and physical and chemical laboratories. They can also be widely used in factories and laboratories for casting quality assessment, raw material inspection, and the study and analysis of the metallographic structure of processed materials.
Product Features

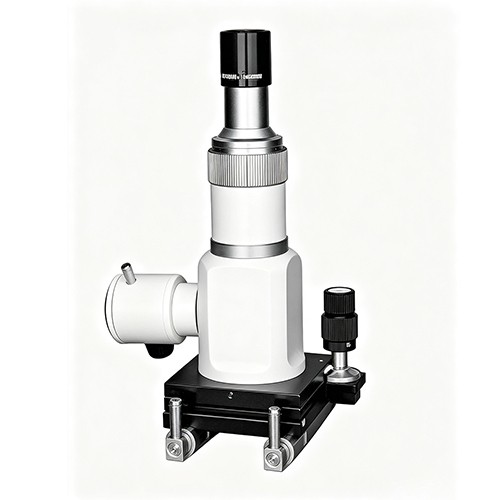

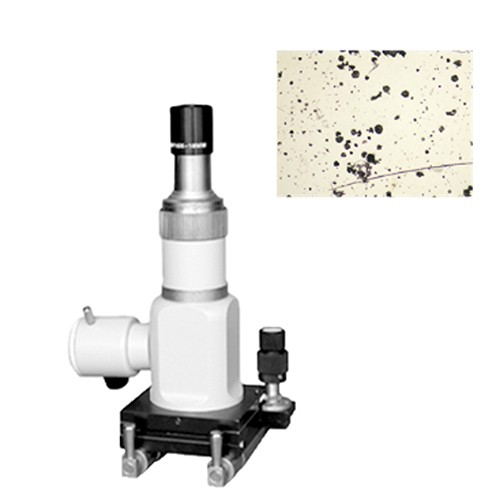

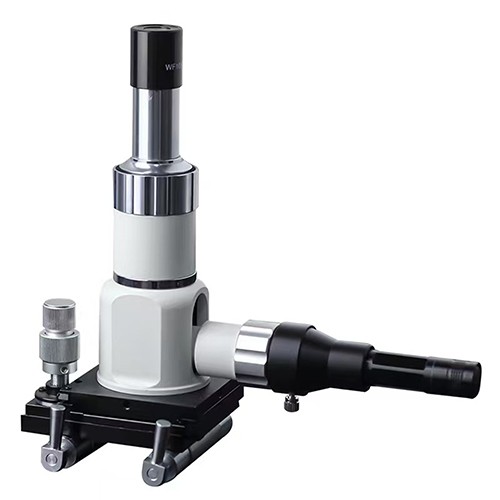

1. Compact and precise optical structure for clear and stable images.
2. Magnification 100×—400×, flat achromatic metallurgical objective lens.
3. Reflective vertical illumination source (LED).
4. Gear-type 10mm X and Y axis moving platform.
5. Dedicated mechanical on/off magnetic base, suitable for various workpiece surfaces.
Technical Data
|
Model |
ST-MM1000 |
|
Eyepiece |
Wide‑field WF10X (Φ18 mm) |
|
Objective |
LWD Plan Achromatic Objective (No‑coverslip) PL L10X/0.25 LWD Plan Achromatic Objective (No‑coverslip) PL L20X/0.40 LWD Plan Achromatic Objective (No‑coverslip) PL L40X/0.60 |
|
Eyepiece Tube |
Straight monocular tube |
|
Total Optical Magnification |
100‑400X |
|
Illumination System |
Aspheric condenser, LED lamp, adjustable brightness |
|
Focusing Mechanism |
Coarse‑fine coaxial focusing; fine‑focus graduation value: 2 μm, with locking and limit device |
|
Grinder |
Mini variable‑speed grinder: speed 5000～37000 rpm, equipped with 80#‑700# grinding bits |
|
Electromagnetic Base |
Magnetic attraction: 25 N/cm², equipped with magnetic‑force switch |
|
Weight |
3.5 KG |
|
Packing Case |
Aluminum alloy case: 475×280×160 mm |
Packing List
|
Description |
Qty |
|
Microscope with Aluminum alloy carrying case |
1 unit |
|
On‑off Magnetic Base |
1 unit |
|
Eyepiece, WF10X |
1 pc |
|
Objective Lens PL10× |
1 pc |
|
Objective Lens PL20× |
1 |
|
Objective Lens PL40× |
1 pc |
