Product Description

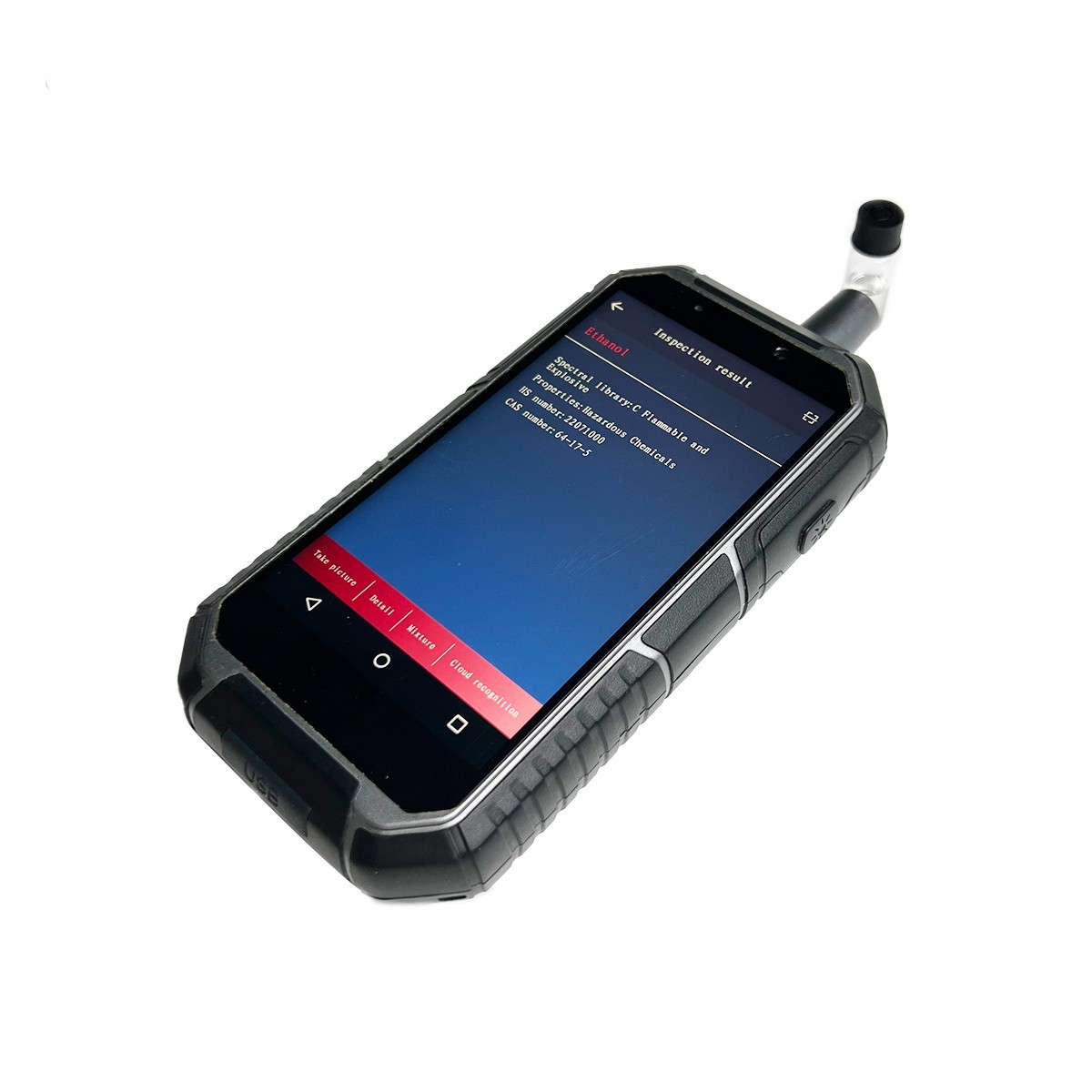

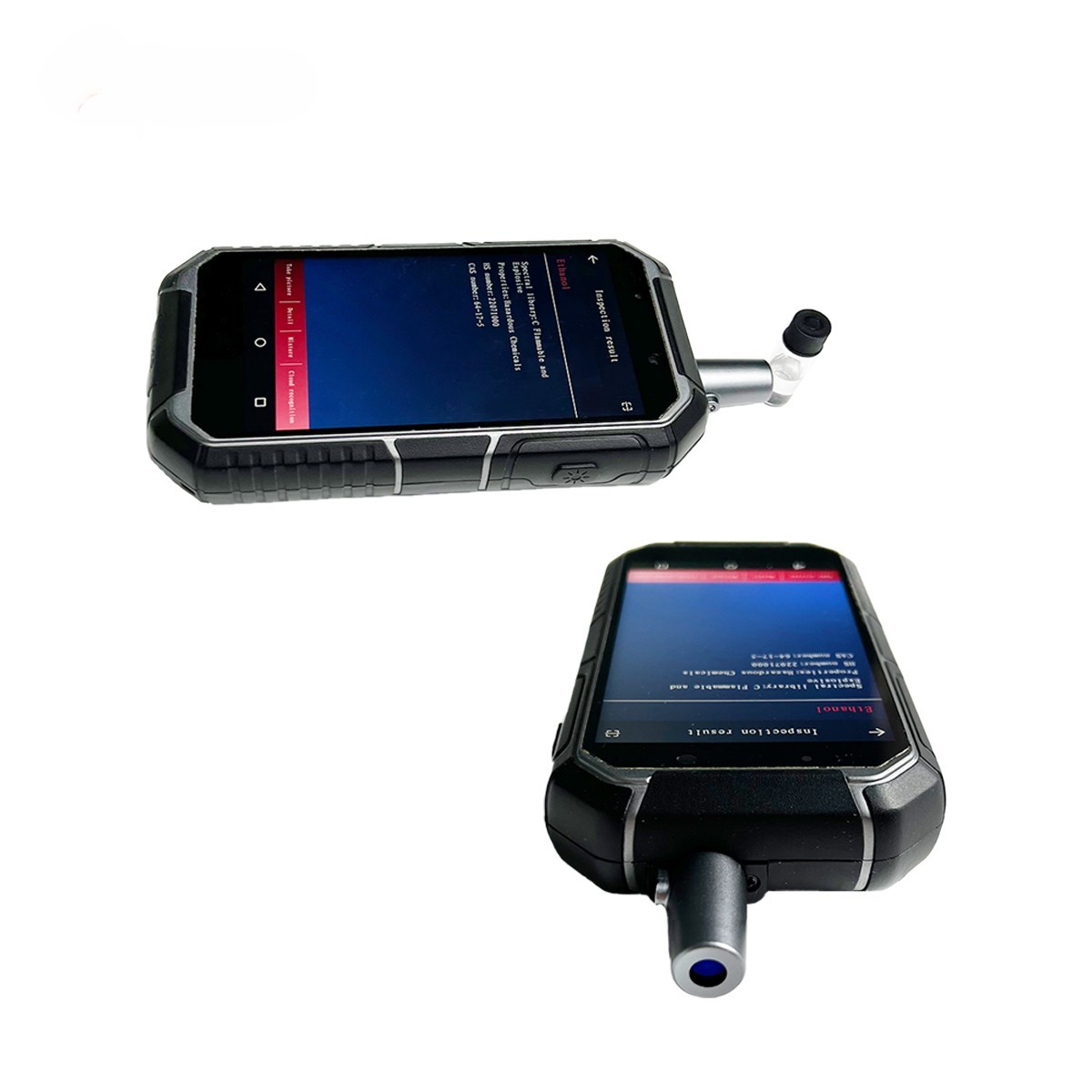

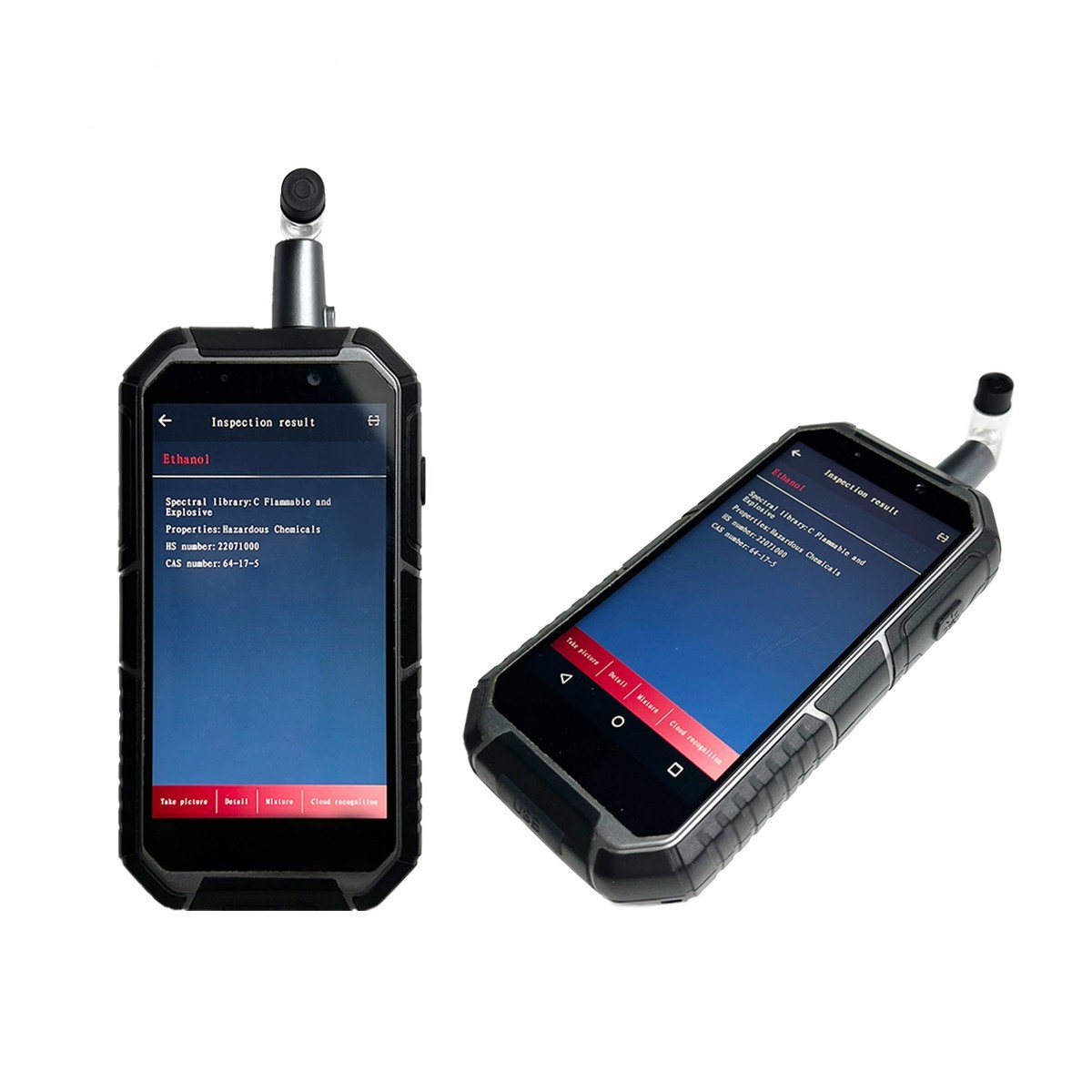

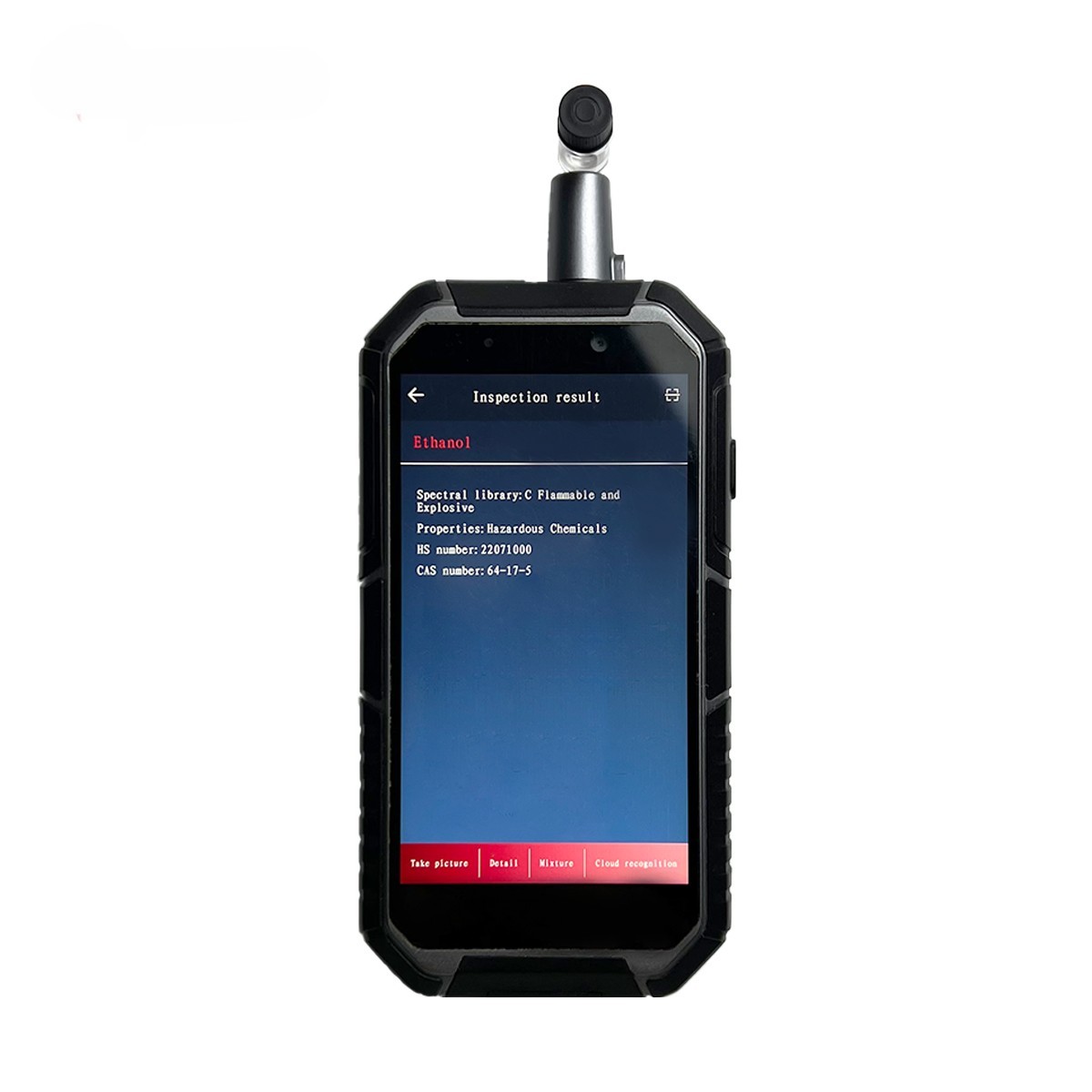

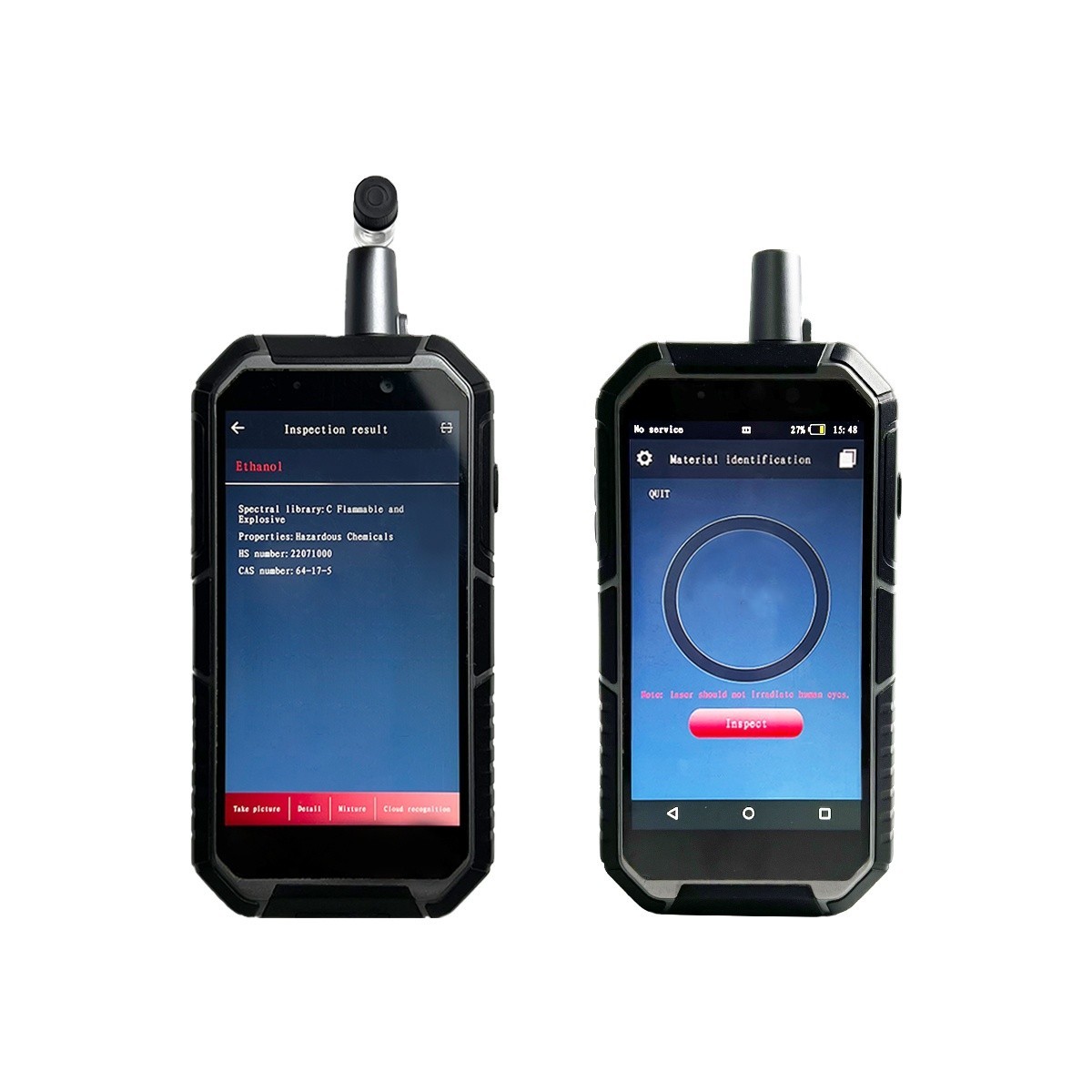

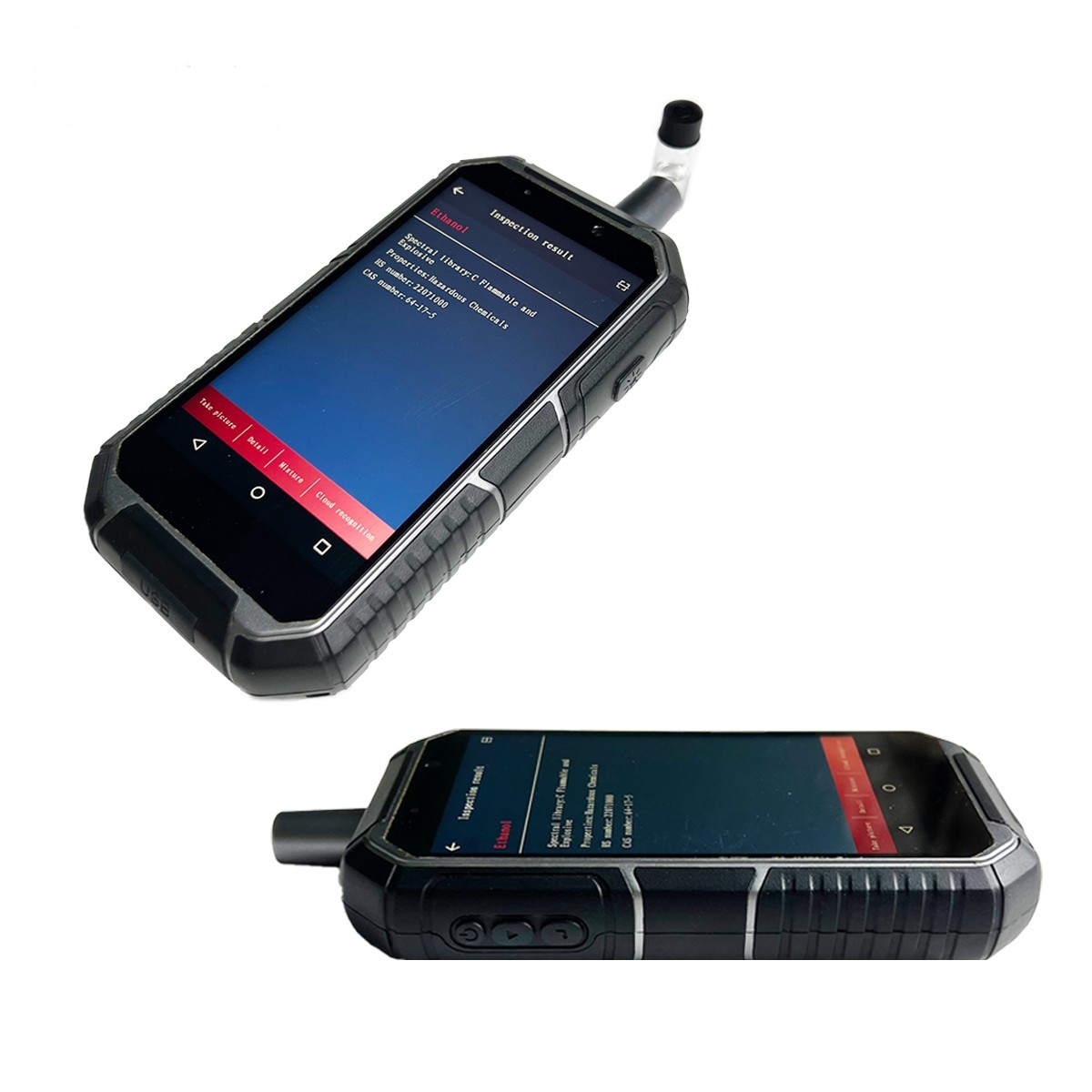

Handheld Raman Spectrometer

Portable, Rapid, and Non-Destructive Material Identification

Benefit Highlights

1. Handheld and ergonomic design

4. Accurate and rapid identification of suspicious substance · Material name and spectrogram · Full encyclopedic information

Product Features

1. Ergonomic Handheld Design
The rugged, lightweight device is built for one-handed operation, making it ideal for on-site and field use.
2. Ultra-Fast Analysis
Get accurate material identification results in as little as 3 seconds, enabling high-throughput screening.
3. Comprehensive Spectral Library
Includes an extensive built-in library of spectra, with support for easy updates to add new substances. The system also features built-in Wi-Fi, 4G connectivity, a camera, and a barcode scanner for seamless data management.
4. Reliable Identification of Suspicious Substances
Provides clear results, including the material name, full spectrum, and detailed encyclopedic information, for confident decision-making.

Product Advantage

1. Non-Destructive & No Sampling Required

The spectrometer can analyze materials directly through common packaging, including woven bags, plastic films, glass, and paper, eliminating the need for sample preparation and reducing exposure risk.

2.High Accuracy & Specificity

Powered by advanced algorithms, the instrument delivers highly specific and reliable results for a wide range of materials.

3. Portability for All Environments

Its compact form factor allows flexible deployment across multiple work environments, including warehouses, material preparation rooms, and production workshops.

Technical Data

No	Item	Description
1	Laser	785nm
2	Size	160mm* 84mm * 30mm
3	Weight	730g
4	Connection	Wi-Fi,4G,Bluetooth,Micro-USB
5	Operation	5' Touch Screen,big button,intuitive man-machine interface operation
6	Power Supply	Rechargeable lithium battery,4-6h
7	Database	Narcotics&Precursors,Explosives,Dangerous Liquid,Gem, plastic, etc
8	Result	Name,Property,Spectrum,MSDS,Result-report

Product Application

Category	Examples
Narcotics & Precursors	Heroin, Methamphetamine (Ice), Ephedrine, Acetone, etc.
Explosives	TNT, RDX, TATP, Nitramine, etc.
Dangerous Liquids	Ethanol, Gasoline, Hydrogen Peroxide, Nitric Acid, etc.
Gemstones	Diamond, Agate, Jade, etc.
Industrial Raw Materials	PET, PP, PS, and other common polymers and chemicals.
