Product Description

Product Overview

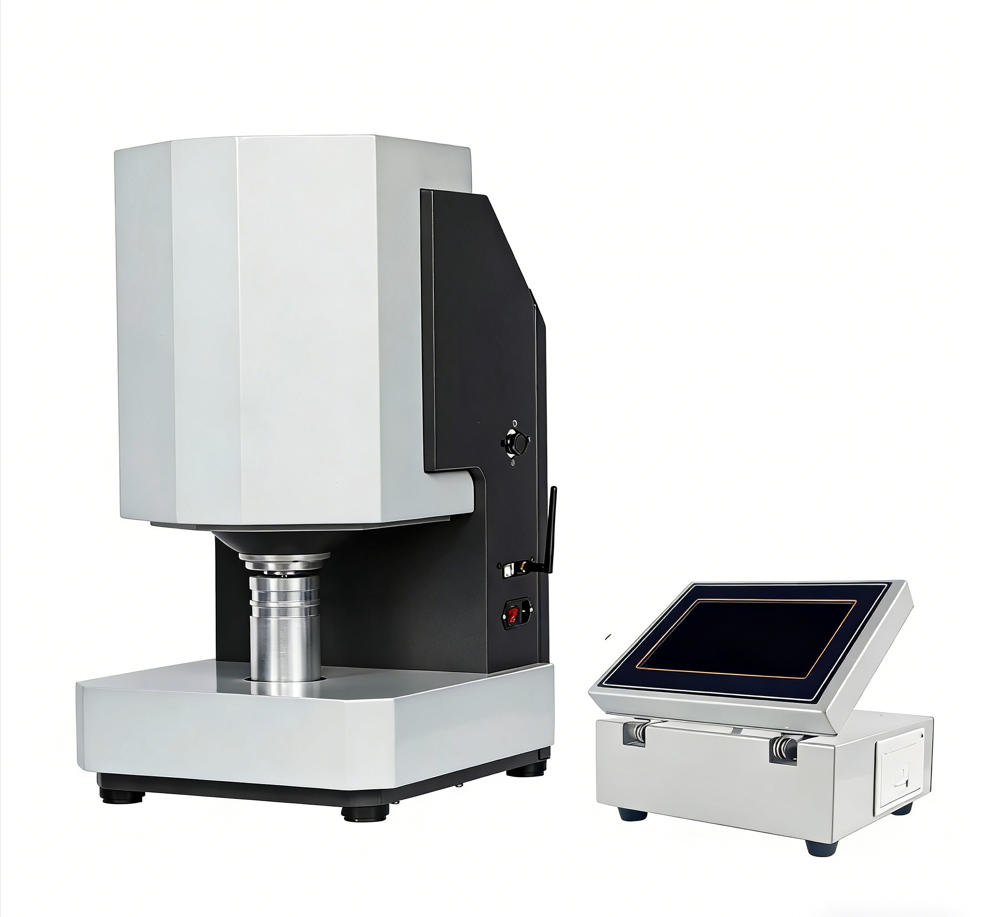

The high accuracy color analyzer is a precision instrument with d/0 geometry for measuring the whiteness, color, and color difference of solid materials. It is widely used in papermaking, printing, textile printing and dyeing, ceramics, building materials, chemicals, grain, salt, and other industries, as well as production and commodity inspection departments requiring solid color and whiteness testing.

Model

ST-WM300

Application Range

Papermaking, printing, textile printing and dyeing, ceramics, building materials, chemicals, grain, salt, and other industries, as well as production and commodity inspection departments requiring solid color and whiteness testing.

Application Functions

• Determine the color and color difference of solids under C light source and D65 light source conditions.
• Measure CIE1931 tristimulus values and chromaticity coordinates under the standard chromaticity system.
• Measure CIE1964 supplementary standard chromaticity system tristimulus values and chromaticity coordinates.
• Measure CIE1976 uniform color space parameters: L*, u*, v*, Cuv, Suv, huv, a, b*, C*ab, hab, and color difference.
• Determine CIE whiteness W10 (Gantz visual whiteness) and skew value Tw10.
• Measure blue diffuse reflection factor D65 brightness and fluorescence brightness of fluorescent brightening materials.
• Measure ISO brightness under C/2° indoor light and fluorescence brightness of fluorescent brightening materials.
• Determine whiteness and color of building materials, non-metallic mineral products, and ceramics.
• Determine whiteness, Lab values, and color difference under the Hunter system.
• Determine whiteness and chromaticity of fibers (with fiber sampler).
• Measure whiteness, chromaticity Lab values, and color difference of powders.
• Measure yellowness index (YI), opacity (OP), light scattering coefficient (S), light absorption coefficient (A), transparency, and ink absorption value.
• Measure reflected optical density Dx, Dy, Dz.

Product Features

1. Equipped with a Cotex-M4 ARM processor.
2. Adopts imported concave flat field grating, photoelectric display sensor, pulsed xenon lamp, and other core components to ensure instrument accuracy.
3. Stepper motor controls UV radiation, enabling automatic and precise radiation adjustment; one-key test for fluorescence brightness.
4. Test data can be exported via USB flash drive.
5. System and screen software can be upgraded via network or USB flash drive.
6. Supports multiple communication methods; optional online software enables WIFI or USB communication.
7. Test data can be uploaded to cloud servers and integrated with the QMS Paper Quality Management System (optional) for real-time paper test data monitoring.
8. Standard 7-inch touchscreen with dual operation modes: touchscreen and PC software. Touchscreen operation is fast; PC software offers unlimited data storage, easy historical data access/printing, and unlimited standard sample storage.

9. Parameter	ST-WM300
   Power Supply	AC (100~240)V (50/60)Hz, 50W
   Working Environment	Temperature: 10~35°C, Humidity ≤ 85%
   Display	7-inch IPS HD capacitive touchscreen, 1024×600 resolution
   Geometry	Double beam (d/0)
   Light Source	Pulsed xenon lamp, calibrated for D65 and C light sources
   Measuring Aperture	Φ28mm/Φ34mm (customizable)
   Photometer Linearity Error	0.3%
   Spectral Bandwidth	10nm
   Receiver	128-cell photoelectric array
   Wavelength Range	400–700nm
   Measuring Range	0–200%
   Typical Measuring Time	4–20s
   Repeatability	≤±0.05 CIELAB (ΔE*)
   Inter-instrument Agreement	≤±0.30 CIELAB (ΔE*)
   Observer Angles	2° & 10°
   Spectral Interval	10nm
   UV Cut Filter	395nm, 420nm
   Communication Interface	USB 2.0, WIFI (2.4G)
   Dimensions	Main Unit: 310×340×540mm; Screen: 225×170×120mm
   Net Weight	23.5kg (Main Unit: 21kg, Screen: 2.5kg)
