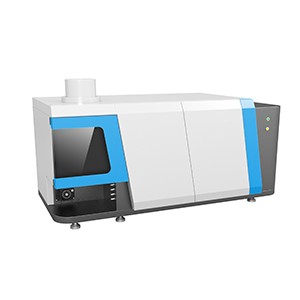

High Sensitivity Inductively Coupled Plasma Optical Emission Spectrometer

Inductively coupled plasma emision spectrometer, as a professional laboratory analysis instrunent, has many characteristicssuch as testing multiple elements, being able to detect up to 70 elements, fast testing speed, and low detection limit. Mainly usedin rare earth industry, silicon industry. petrochemical industry, ore analysis, metal smeling. geological research, drug safety.experimental resea

Product Description

Product Introduction

Inductively Coupled Plasma Emission Spectrometer is a trace element composition analysis and testing instrument with highsensitivity photomultiplier tubes as detectors. It tests nearly 70 elements and has solid-state RF generator and automatic tuningmatching technology; Equipped with a dedicated circulating cooling water system, argon gas conduit, cooling water pipe, andhigh sensitivity sampling system (high-efficiency atomizer with patented dual barrel atomization chamber).

Technical Data

Category	Parameter	Specification
RF Power & Electrical	Operating Frequency	27.12 MHz
	Frequency Stability	<0.05 %
	Output Power	800–1600 W continuously adjustable
	Power Efficiency	>65 %
Optical System	Resolution	0.008 nm (3600 L/mm grating)
	Wavelength Range (3600 L/mm)	190–500 nm
	Wavelength Range (2400 L/mm)	190–800 nm
	Grating Groove Density	3600 L/mm or 2400 L/mm
Detection & Signal Chain	PMT Model	R212/R928
	Negative High Voltage	–50 to –1000 V
	Current Measurement Range	10⁻¹² to 10⁻⁴ A
Analytical Performance	Liquid Detection Limit	0.01 ppm
	Solid Detection Limit	0.001 %
	Repeatability (RSD)	≤1.5 %
	Stability (RSD)	≤2 %
	Analysis Speed	5–10 elements per minute
	Detectable Elements	70+ elements
	Linear Dynamic Range	5–6 orders of magnitude
Environmental & Consumables	Temperature Stability	±0.1 °C precision control
	Argon Purity Required	99.99 %
