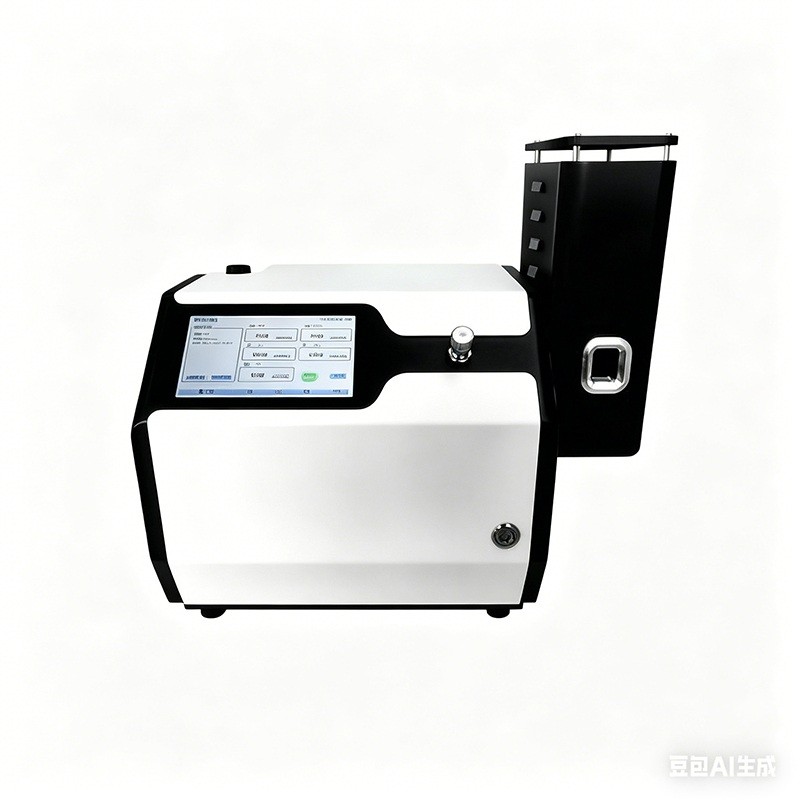

The flame photometer FS-6500 is a newly designed instrument. It features small size, simple structure, convenient operation, and stable reliability. The main unit uses a dual-channel LCD display and keyboard operation, and can store up to 200 sets of test data for a standard curve with up to 10 points. It plays a crucial role in fields such as chemical analysis, combustion science, fire safety, an
Product Description
Product Introduction
The flame photometer FS-6500 is a newly designed instrument. It features small size, simple structure, convenient operation, and stable reliability. The main unit uses a dual-channel LCD display and keyboard operation, and can store up to 200 sets of test data for a standard curve with up to 10 points. It plays a crucial role in fields such as chemical analysis, combustion science, fire safety, and environmental monitoring. By measuring the brightness and spectral characteristics of flames, it provides important information on elemental content, combustion state, and pollutant emissions, helping to achieve accurate analysis, monitoring, and control.
Product Features
1. The main unit uses a 7-inch color capactive touch LCD screen;
2. It features small size, easy operation, and stable reliability;
3. It has direct reading function for potassium, sodium, lithium, calcium, and barium element concentrations;
4. It has a flame out protection device and a gas leak alarm, ensuring safety and reliability;
5. It has an automatic correlation coefficient calculation function;
6. It has a USB flash drive data export function and a USB communication port;
7. It has cloud interconnection capabilities.
Application
1. Testing Items: Potassium, Sodium, Lithium, Calcium, Barium
2. Curve Calibration: Broken Line Method, Linear Line Method
Technical Data
| Parameter | Specification |
|---|---|
| Model | FP6450 |
| Display Mode | 7-inch color capactive touch LCD screen |
| Display Content | Concentration value / Light intensity |
| Reading Range | 0.000～999.9 / 0～65535 |
| Test Elements | Potassium, Sodium, Lithium, Calcium, Barium |
| Number of Channels | 5 |
| Detection Limit (mmol/L) | |
| Potassium (K) | ≤0.004 mmol/L |
| Sodium (Na) | ≤0.008 mmol/L |
| Lithium (Li) | ≤0.015 mmol/L |
| Calcium (Ca) | ≤0.050 mmol/L |
| Barium (Ba) | ≤0.044 mmol/L |
| Linearity Error (mmol/L) | |
| Potassium (K) | ≤0.005 mmol/L |
| Sodium (Na) | ≤0.03 mmol/L |
| Lithium (Li) | ≤0.021 mmol/L |
| Calcium (Ca) | ≤0.075 mmol/L |
| Barium (Ba) | ≤0.066 mmol/L |
| Response Time | ＜8 s |
| Sample Suction Volume | ＜6 ml/min |
| Stability | Continuous injection with standard solution; the maximum relative change of instrument reading within 15s ≤3%; Test 6 times (1 time per minute), the maximum change of instrument reading ≤15% |
| Repeatability | ≤3% |
| Curve Function | Available |
| Printer | Standard equipped |
| Printer Type | Bluetooth printer |
| USB Interface | Built-in |
| PC Software | Optional |
