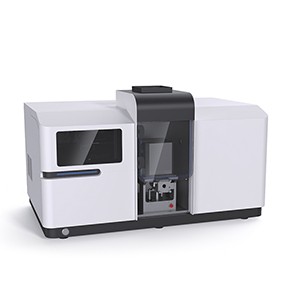

Single Beam Atomic Absorption Spectrophotometer for Laboratory AAS-3000

Wavelength Range: 170-900nm

This high-performance Atomic Absorption Spectrophotometer AAS-3000 is designed for elemental analysis in environmental, food, agricultural, metallurgical, and pharmaceutical applications. Built with advanced optics, a reliable atomization system, and intelligent software, it delivers exceptional sensitivity, stability, and ease of use for flame atomic absorption analysis.

Product Description

Product Introduction

Product Features

1. Light Source System

Automatic 8-lamp turret with automatic optimization and alignment, supporting 2 positions for high-performance lamps.
Simultaneous 8-lamp power supply with preheating capability, ensuring stable light output.
Freely editable lamp position memory function, eliminating the need for coded lamps.

Optical System

Czerny-Turner monochromator with a high-resolution diffraction grating (1800 lines/mm).
7 selectable spectral bandwidths, with automatic setting and optimization.
Rigid cast optical platform with ultra-low deformation under high/low temperature conditions, ensuring long-term stability.
Dual-beam optics to effectively suppress baseline drift, reduce warm-up time, and improve accuracy.
Excellent baseline stability: Drift better than 0.001 Abs over 8 hours of continuous operation.

2. Atomization System

Constant & Transverse Magnetic Field Zeeman Background Correction: Delivers full-element, full-wavelength background correction, effectively eliminating background interference up to 2 Abs.
Enhanced magnetic field intensity (up to 1.0T) improves analytical sensitivity.
Automatic ignition, gas flow precision control, and intelligent flame height/flow self-adaption.
Multi-level safety protection: Alarm for gas leakage, abnormal flow, insufficient air pressure, and flame extinction; equipped with an emergency flame shutoff button.
Cooling water and temperature monitoring for magnetic field protection; foot-operated reading function for hands-free operation.

3. Software & Communication

Intelligent control software compatible with Windows 7 & 10.
One-key instrument optimization and multi-task analysis support.
Automatic curve fitting, re-sloping, and concentration calculation functions.
Ethernet interface for stable and reliable data communication.

Technical Data

Parameter	Specification
Wavelength Range	170 nm ~ 900 nm
Wavelength Accuracy	≤ ±0.10 nm
Wavelength Repeatability	≤ 0.05 nm
Baseline Stability	60 min baseline drift ≤ 0.0005 Abs; instantaneous noise ≤ 0.0005 Abs
Dynamic Baseline Stability	30 min baseline drift ≤ 0.001 Abs; instantaneous noise ≤ 0.001 Abs
Resolution	Spectral bandwidth deviation ≤ 0.02 nm; valley-peak energy ratio ≤ 25% (Mn 279.5 nm / 279.8 nm)
Cu Detection Performance	Detection limit ≤ 0.002 µg/mL; characteristic concentration ≤ 0.03 µg/mL/1%; precision ≤ 0.25%
Background Correction	Better than 150 times
Dimensions (L×W×H)	1010 × 620 × 630 mm
Net Weight	115 kg

Flame Analysis Performance Data (Representative Elements)

Element	Wavelength (nm)	Flame Type	Detection Limit (µg/mL)	Characteristic Concentration (µg/mL)	Recommended Range (µg/mL)	Minimum Detectable Concentration (µg/mL)
Ag	328.1	Oxidizing	0.0028	0.023	0.1–3.5	0.05
Cu	324.8	Oxidizing	0.0043	0.024	0.1–5.0	0.03
Fe	248.3	Oxidizing	0.0183	0.440	0.3–6.0	0.15
Pb	283.3	Oxidizing	0.0056	0.137	0.5–20	0.25
Zn	213.9	Oxidizing	0.0014	0.007	0.03–1.0	0.015
(Full data for 32 elements available upon request)
