Product Description

Product Introduction

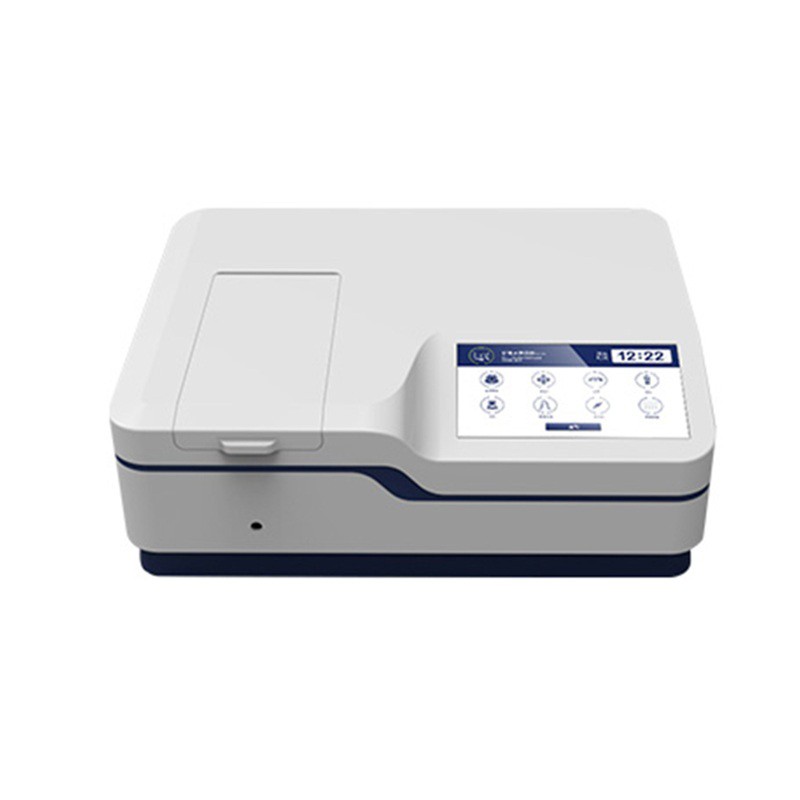

Dual-Beam UV Visible Spectrophotometer UV-3205 adopts a pulsed xenon lamp as its light source, and under normal use, it can last for at least 7 years without requiring light source replacement. We employ unique optical, circuit, and structural designs, advanced manufacturing processes, and a rigorous quality management system. It features microcomputer control and data processing, a large color display, a graphical user interface, and user-friendly menu prompts.

Product  Features

1. Quick and convenient: The instrument is ready to use immediately without preheating. It uses a pulsed xenon lamp as its light source, which can operate for up to 7 years with 1 billion flashes.
2. 10.1-inch color touchscreen display: The large screen directly displays various scanning curves and spectra, allowing users to complete all measurement needs without a computer.
3. Supports USB flash drive storage for user convenience. Measurement data can be directly exported to a USB flash drive, supporting Excel, TXT, and image formats (outputting in four formats: *.csv, *.qua, *.tet, *.bmp).
4. Data output: RS-232C serial port (printing), USB drive (online), USB HOST (for USB flash drive connection), with a standard 32GB memory.
5. Industry-first to use an advanced 32-bit Cortex-M3 processor with a clock speed of 120MHz, the instrument can internally store 5000 test data points or 500 working curves.
6. The suspended optical system design, with a reinforced and thickened aluminum base plate, eliminates the effects of vibration or deformation on the optical system; the double-layer design completely separates the various circuit components of the optical path.
7. The instrument employs a photoelectric signal detection device, resulting in a lower signal-to-noise ratio and greater instrument stability.

Technical Data
