- 190~1100nm
- ±1nm
- 0.2nm

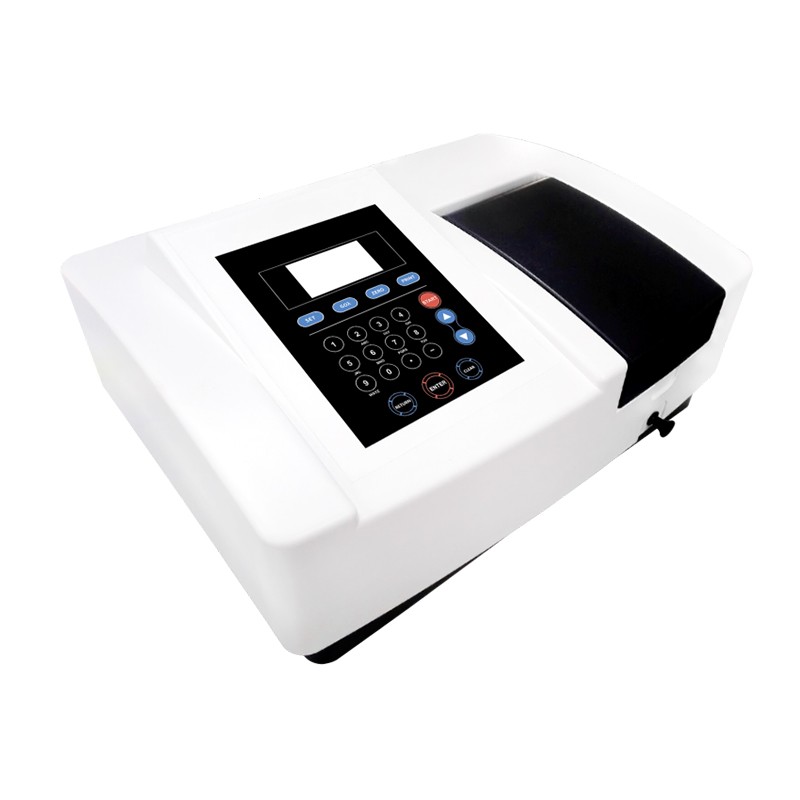

UV Visible Spectrophotometer UV-710 is a low-cost, high-performance spectrophotometer designed for various quantitative analyses of substances using spectral analysis methods in modern analytical laboratories. It is widely used in pharmaceuticals, environmental protection, food industry, petrochemicals, biochemistry, universities, and quality control departments.
Product Description
Product Introduction
UV Visible Spectrophotometer UV-710 is a low-cost, high-performance spectrophotometer designed for various quantitative analyses of substances using spectral analysis methods in modern analytical laboratories. It is widely used in pharmaceuticals, environmental protection, food industry, petrochemicals, biochemistry, universities, and quality control departments.
Product Features
1. Employs a 51 microcomputer system, capable of storing standard curves and test data.
2. Features self-diagnostic capabilities.
3. Provides power-off protection.
4. Includes built-in quantitative analysis software for user-friendly operation.
5. Enables convenient photometric analysis, quantitative analysis, kinetic testing, spectral scanning, multi-wavelength testing, and DNA/protein analysis through simple parameter settings.
6. Features a standard printer interface and an RS-232 communication interface.
Technical Data
| Parameter Item | Specification |
|---|---|
| Model | UV-710 |
| Wavelength Drive | Automatic wavelength scanning |
| Wavelength Range | 190 – 1100 nm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Repeatability | 0.2 nm |
| Spectral Bandwidth | 2 nm |
| Transmittance Accuracy | ±0.5%T |
| Transmittance Repeatability | 0.2%T |
| Transmittance Range | 0.0 – 200%T |
| Photometric Range | -3 – 3A, 0 – 200%T, 0 – 9999C |
| Stray Light | 0.2%T @ 220 nm / 360 nm |
| Stability | ±0.002A/h @ 500 nm |
| Display | 128×64 dot matrix LCD |
| Communication Interface | USB port |
| Printer | Optional |
| Software Support | Supported |
| Noise Level | 0.001A / 2 min @ 500 nm |
| Baseline Flatness | 0.002A/h |
