X-Ray Spectrometer High Precision Metal Analyzer
- Si-PIN
- 50KV/1mA; Al window; W target; focus: Φ0.3mm
- Φ2.5mm
Gold Xray Gold Carat Meter Instrument,non-destructive Gold Purity Tester,spectral Gold Detector For Jewelry,jewelry Purity Analyzer Instrument,gold X-ray Carat Meter With Usb,customized Support For Spectral Gold Detector,x-ray Gold Purity Analyzer,non-destructive Spectral Gold Detector,spectral Gold Jewelry Analyzer , gold Purity Analyzer,spectral Gold Purity Tester
Product Description
Core Positioning: Entry-level XRF spectrometer for precious metal composition analysis, ideal for gold recycling, jewelry factories, showrooms, and banks.
1. Product Description

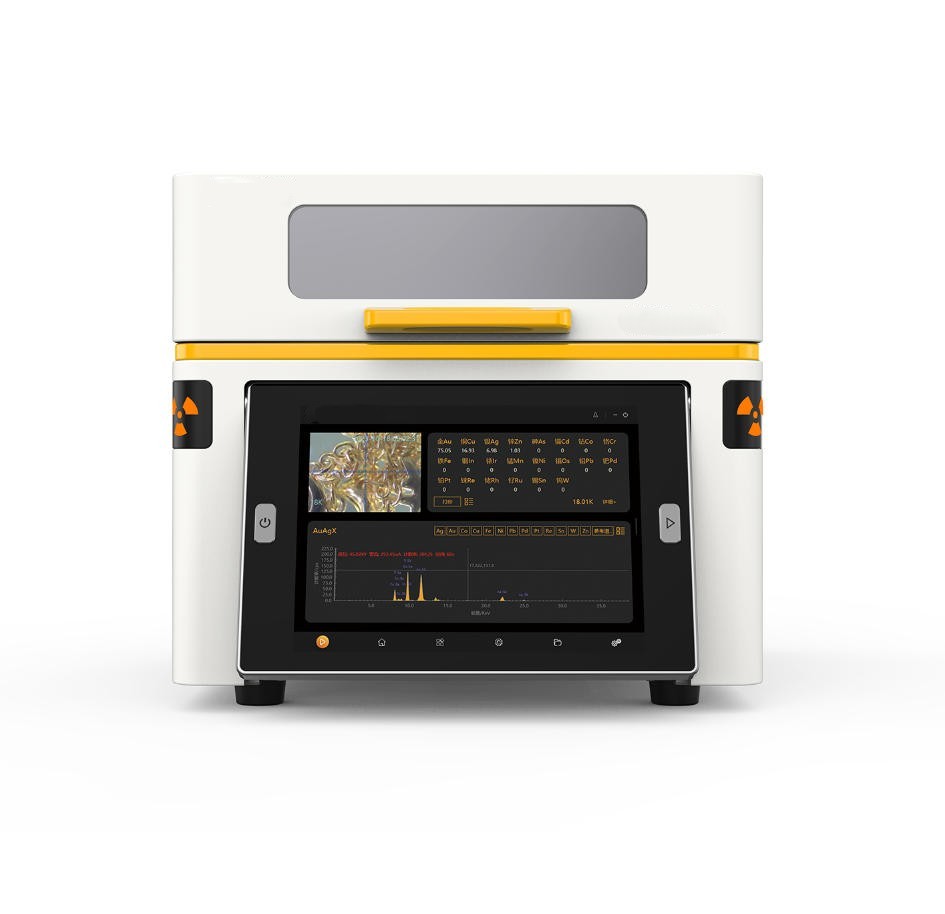

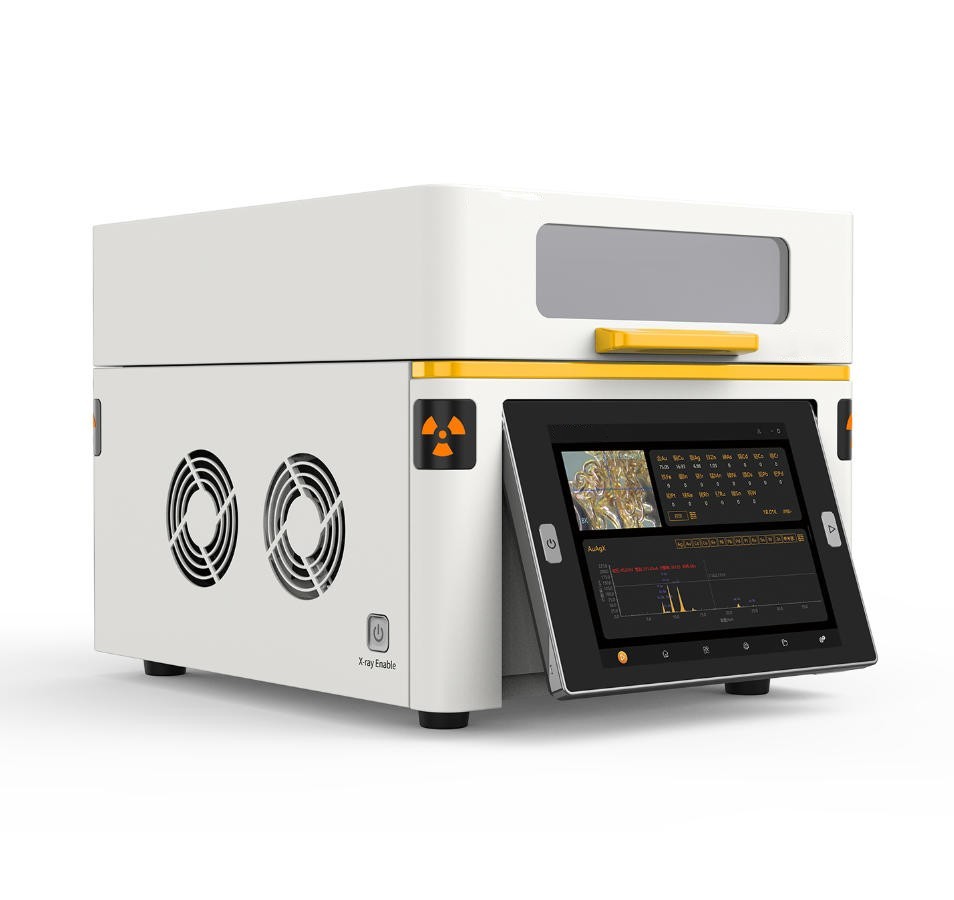

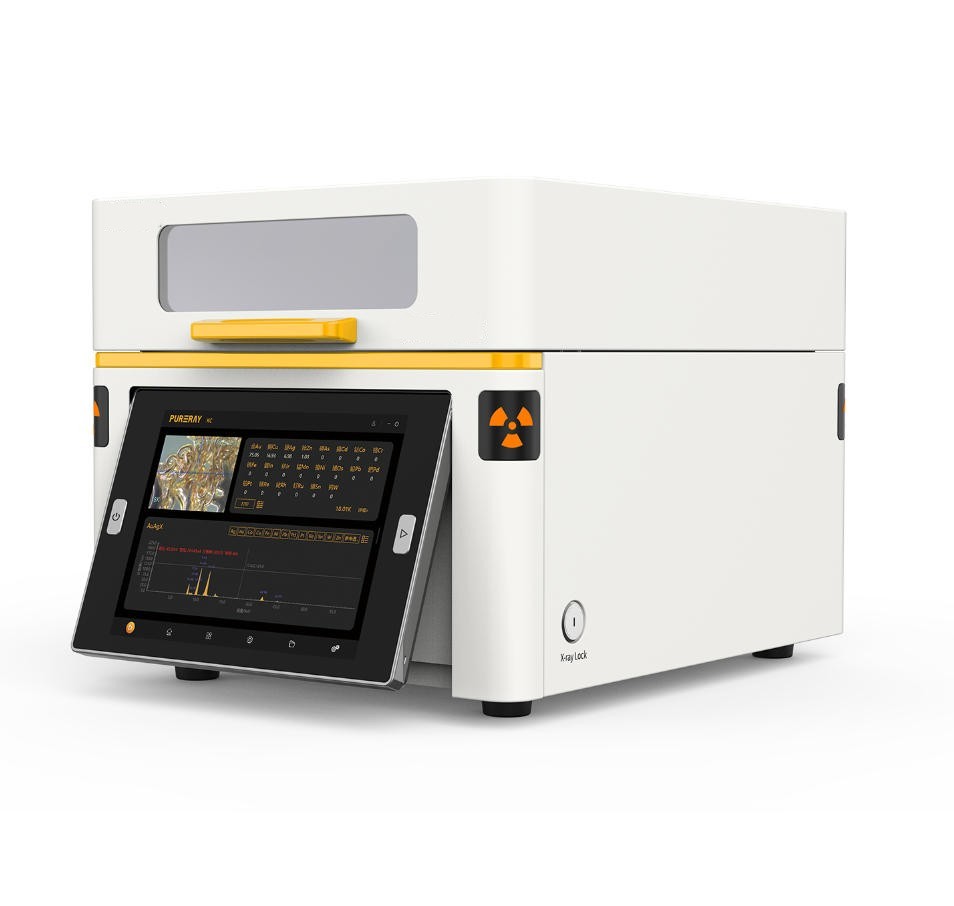

The XRF-KC precious metal analyzer is an X-ray fluorescence spectrometer developed by PURERAY Instrument for precious metal composition testing. It is widely used in gold recycling, jewelry manufacturing, exhibition halls, banking and other industries. Featuring an integrated IPS LCD and capacitive touchscreen, it adopts a Si-PIN detector, built-in NUC computer, 45° optical path and the new Smart FP algorithm. It delivers fast, accurate results with excellent cost-performance.
2. Key Features
- Element Range: Potassium (K, No.19) to Uranium (U, No.92)
- Simultaneous Analysis: Up to 30 elements
- Analysis Range: 0.010% – 99.999%
- Precision: ±0.05% (for 9999 gold)
- Sample Type: Precious metal alloys
- Alarm Function: Rhenium & tungsten detection warning
- Multi-point Testing: Supports continuous multi-point testing for high efficiency
- Software: Lifetime free upgrades, one-on-one after-sales service
- User Interface: Intuitive UI, customizable report templates
- Compact Design: All-in-one, compact size for countertop display
3. Technical Specifications
| Item | Specification |
|---|---|
| Detector | Si‑PIN; area: 6mm²; resolution: 350±30eV |
| Collimator | Φ2.5mm |
| Built‑in NUC Computer | Celeron dual‑core |
| HV Power Supply | 50KV/1mA digital HV |
| X‑ray Tube | 50KV/1mA; Al window; W target; focus: Φ0.3mm |
| Package Dimensions | 566×531×500mm |
| Machine Dimensions | 350×422×318mm |
| Sample Chamber | 297×294×80mm |
| Rated Power | 150W |
| Weight | Gross: 51KG (with UPS); Net: 32KG |
| Noise | <65dB |
