Product Description

Product Introduction

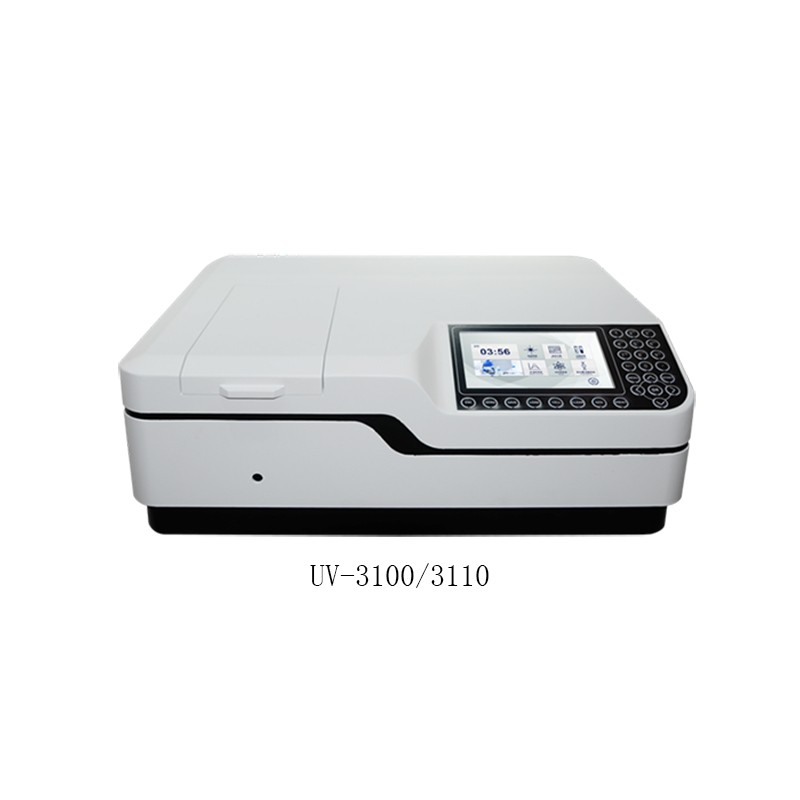

Single Beams UV Visible Spectrophotometer UV-3100 is with its brand-new optical path design, internationally sourced premium components, and superior instrument performance, it greatly meets the analytical needs of even the most professional users. It can be widely used in research and production across various fields, including organic chemistry, biochemistry, pharmaceutical analysis, food inspection, medicine and health, environmental protection, and life sciences.

Product Features

1. Seven-inch TFT true-color LCD screen with Omron touch buttons for a more comfortable feel and durability, capable of withstanding millions of uses. The large screen directly displays various scanning curves and graphs.
2. Supports USB flash drive storage. Data opening and editing require no professional software. Supports Excel, TXT, and image formats, and can output in four formats: *.csv, *.qua, *.tet, and *.bmp.
3. Data output: RS-232C serial port (printing), USB drive (online), USB HOST (for USB flash drive connection), with a standard 16GB memory.
4. Industry-first to use an advanced ARM11 processor, capable of storing 2000 test data points or 500 working curves.
5. Suspension-type optical system design with a reinforced and thickened aluminum base plate to eliminate the effects of vibration or deformation on the optical system; a double-layer design completely separates the various circuit components of the optical path, improving the instrument's resolution and stability.
6. The instrument employs a patented photoelectric signal detection device, resulting in a lower signal-to-noise ratio and greater instrument stability.
7. An optional built-in fully automated sample introduction flow path system is available, greatly simplifying user operation.
8. An optional 8-cell automatic cuvette holder with a patented rotating design is available, ensuring that light is perfectly centered when passing through the cuvette, thus improving instrument performance.

Technical Data
