Product Description

Product Introduction

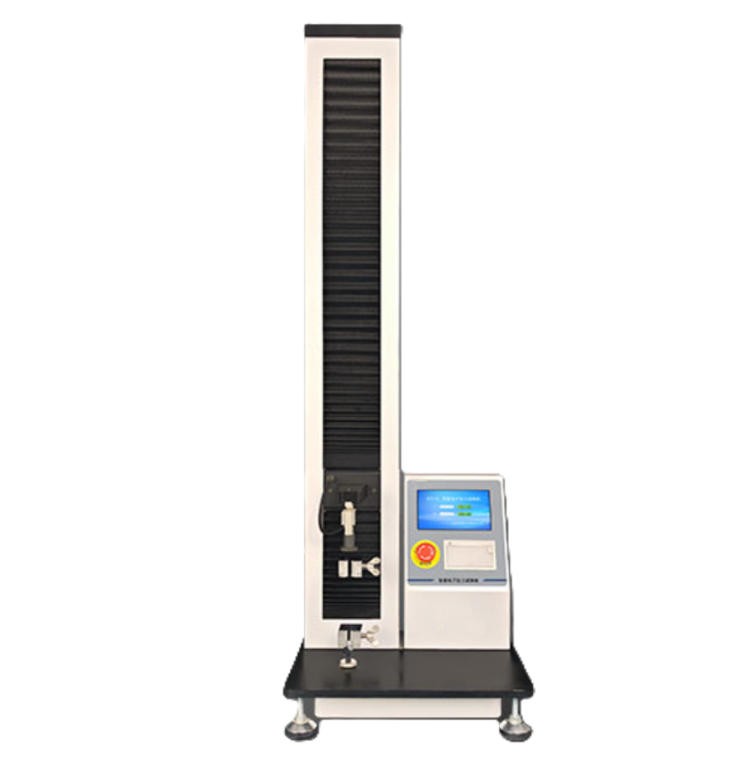

ST-ET01 Intelligent Electronic Tensile Tester is designed to test mechanical properties including tension, peeling, deformation, tearing, heat‑seal strength, puncture force, compression and breaking resistance for plastic films, adhesives, adhesive tapes, self‑adhesive labels, medical plasters, protective films, combined caps, backsheet materials, non‑woven fabrics, rubber, paper fibers and other products.

1. Application Scope

2. Test Principle

Mount the specimen between upper and lower clamps of ETT‑01 Intelligent Electronic Tensile Tester. The two clamps perform relative motion. The force sensor fitted on the moving clamp and the built‑in displacement sensor collect force and displacement data throughout the test. Accordingly, tensile, tearing, deformation rate, heat‑seal strength, compression and other performance indicators of specimens are calculated.

3. Product Features

ETT‑01 Intelligent Electronic Tensile Tester is dedicated to mechanical‑property testing such as tensile performance of flexible packaging materials. Its superior accuracy (Class 0.3) guarantees reliable test results. Multiple independent test programs, multi‑range force sensors, stepless test‑speed adjustment and high‑precision displacement‑control technology satisfy various test conditions. The intelligent software enables convenient equipment operation, multi‑group data analysis and comparison.

• Test system with imported high‑speed sampling chip achieves superior Class‑0.3 accuracy to ensure accuracy and repeatability of test results.
• Force sensors, motors and displacement sensors sourced from internationally‑renowned brands.
• High‑precision lead‑screw drive design ensures stable system operation.
• High‑precision displacement control; displacement accuracy reaches 0.1 mm, with maximum travel up to 1000 mm.
• Stepless speed adjustment: 0.05 ~ 1000 mm/min for diversified test‑condition requirements.
• Integrated independent test programs: tension, peel, tear, heat‑seal strength, puncture, etc.
• Optional force sensors of multiple ranges to achieve optimal measuring range for specimens.
• 7‑inch touch screen with newly‑designed control software, supporting test control, curve display, historical‑test query, data analysis and report generation.
• Built‑in safety functions: limit protection, overload protection, automatic return‑to‑home for safe operation.
• Professional software supports statistical analysis for batch specimens and comparison of historical test data.
• Optional GMP‑compliant software with four‑level permission management for full GMP‑compliance.
• Software enables data traceability, multi‑level permission management, audit trail and electronic signature.

4. Technical Specifications

5. Reference Standards

This instrument complies with multiple national and international standards:

ISO 37, GB 8808, GB/T 1040.1‑2006, GB/T 1040.2‑2006, GB/T 1040.3‑2006, GB/T 1040.4‑2006, GB/T 1040.5‑2008, GB/T 4850‑2002, GB/T 12914‑2008, GB/T 17200, GB/T 16578.1‑2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113

Note: Customized fixtures or test programs are required for certain standards.

6. Configuration

Standard Configuration: Main unit, universal fixtures, micro printer, professional software, communication cable

Optional Accessories: PC, standard pressure roller, test plate, sample cutter, floating‑roller fixture, custom‑made non‑standard fixtures
