- ST-FC-4

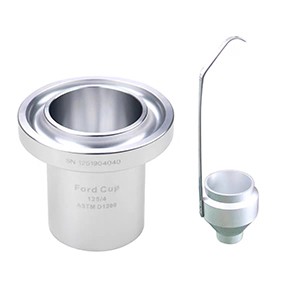

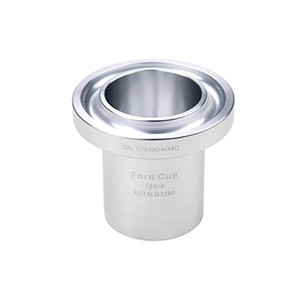

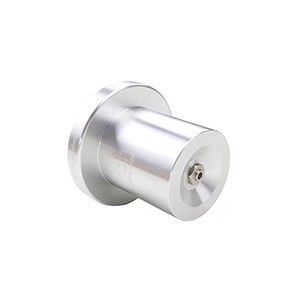

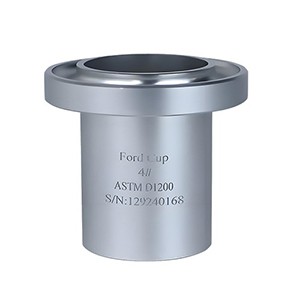

Ford Cups is produced in accordance with International Standard ASTM D1200, D333, D365. For easy measurement of the viscosity of paints, inks, lacquers and other liquids. All our Ford cups are machined anodic oxidation aluminum with removable stainless steel orifice and are guaranteed to be within 2% throughout the recommended range of use.
Product Description
Ford Cup Introduction
Ford Cups is produced in accordance with International Standard ASTM D1200, D333, D365. For easy measurement of the viscosity of paints, inks, lacquers and other liquids. All our Ford cups are machined anodic oxidation aluminum with removable stainless steel orifice and are guaranteed to be within 2% throughout the recommended range of use.
Technical Parameters
*Internal Diameter: 50 ±0.05mm
*Outer Diameter: 86±0.1mm
*Internal Orifice Length: 10±0.1mm
*Come with calibration certificate
Detail Description
|
Details/Ford Cup |
Ford Cup (No.2) |
Ford Cup( No.3) |
Ford Cup( No.4) |
Ford Cup( No.5) |
Hand-Held Ford Cup( No.4) |
|
Internal Vertical Height (mm) |
43±0.1 |
43±0.1 |
43±0.1 |
43±0.1 |
43±0.1 |
|
Internal Orifice φ（mm） |
2.53 |
3.40 |
4.12 |
5.20 |
4.12 |
|
External Orifice φ（mm） |
5.0±0.5 |
5.5±0.5 |
6.0±0.5 |
7.6±0.5 |
6.0±0.5 |
|
Measurement Range (cSt） |
25-120 |
49-220 |
70-370 |
215-1413 |
70-370 |
|
Suitable Flow Time( Sec） |
40-100 |
25-105 |
20-105 |
20-105 |
20-105 |
|
Model information |
ST-FC-2 |
ST-FC-3 |
ST-FC-4 |
ST-FC-5 |
ST-FC-4P |
