- STC-A
- 0–8 kN
- 0.001 MPa / 0.001 kN
- 10mm

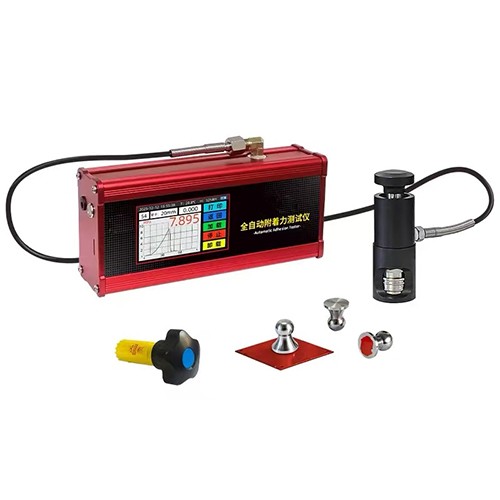

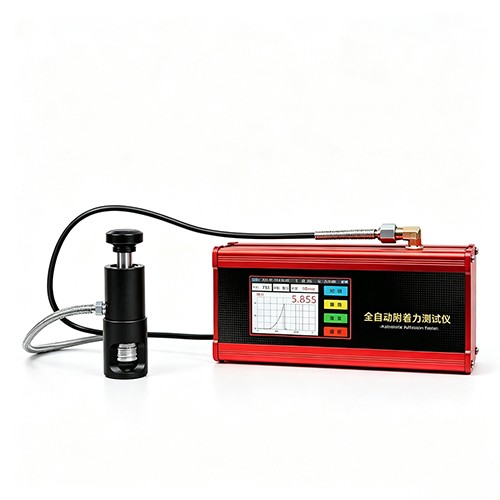

The Automatic Pull-Off Adhesion Tester is designed to measure the adhesion strength of coatings on metal, concrete, and other substrates. The instrument uses a hydraulic system to pull off a defined area of the coating from the substrate surface. The multi-function touch LCD screen displays the entire adhesion testing process in real time, providing clear, intuitive feedback
Product Description
The Automatic Pull-Off Adhesion Tester is designed to measure the adhesion strength of coatings on metal, concrete, and other substrates. The instrument uses a hydraulic system to pull off a defined area of the coating from the substrate surface. The multi-function touch LCD screen displays the entire adhesion testing process in real time, providing clear, intuitive feedback.
International Standards
1. ISO 4624 (Paints and varnishes – Pull-off test for adhesion)
2. ASTM D 4541 (Standard Test Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers)
3. ASTM D7234 (Standard Test Method for Pull-Off Adhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers)
Technical Data
|
Parameter |
Details |
|
Strength Measurement Range |
10mm dolly: 0–101.91 MPa 14mm dolly: 0–52.28 MPa 20mm dolly: 0–25.47 MPa 50mm dolly: 0–4.07 MPa |
|
Force Value Range |
0–8 kN |
|
Display Resolution |
0.001 MPa / 0.001 kN |
|
Piston Stroke |
10 mm |
|
Indication Error |
≤ ±1% FS (Full Scale) |
|
Display Units |
3 selectable units: kN / MPa / Psi |
|
Display Screen |
High-definition IPS touch display (480×800), with 10-level adjustable brightness, auto sleep, and bilingual (Chinese/English) display |
|
Data Management |
Stored on memory card, viewable via computer Optional Bluetooth printer for on-site test reports Supports up to 100,000 test records Auto-saves data at 1-second intervals |
|
Core Functions |
- Adjustable pull-off rate (0.1–2 MPa/s) - Configurable pull-off force and holding time - Pull-off force-time curve display (peak value as test result) - Pass/fail test with no destructive surface damage required for qualified results - Step-by-step automatic loading - Overpressure protection - Automatic conversion results with manual input of dolly area - Dolly sizes: 10/14/20/50 mm - Calibratable with CMA/CNAS traceable pressure sensors |

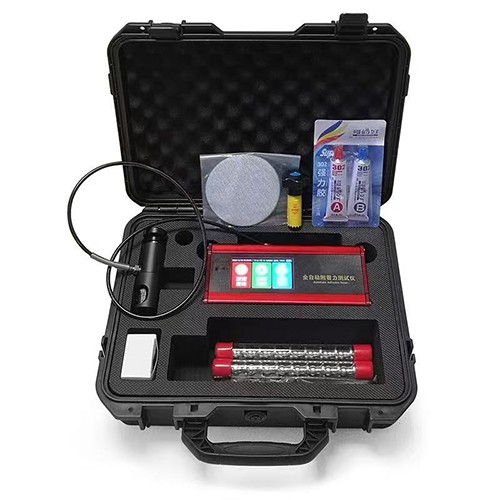

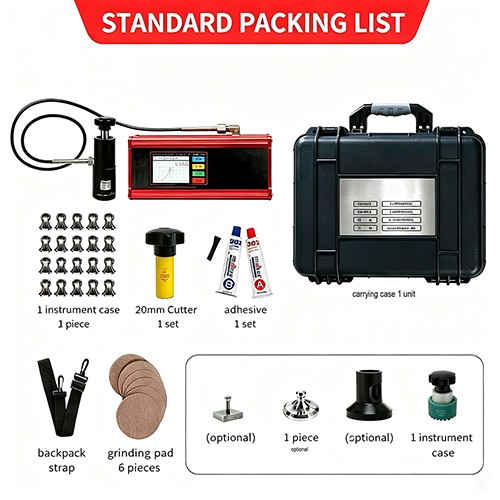

4. Optional Kits
✅ 20mm Kit (Standard)
- Suitable for testing coating adhesion on metal substrates
- Optional 10mm/14mm dolly adapters
- Includes: 20mm dolly (aluminum) × 20, 20mm cutter × 1, 20mm reaction ring × 1
✅ 40mm Kit (Optional)
- Designed for floor and fire-resistant coating adhesion tests
- Includes: 40mm square dolly × 6, 40mm reaction ring × 1
✅ 50mm Kit (Optional)
- Ideal for coating adhesion tests on concrete, wood, and plastic substrates
- Includes: 50mm dolly (aluminum) × 6, 50mm cutter × 1, 50mm reaction ring × 1
