- ST-68
- 41. 5°, 43°, 45°
- 0.5-20.5 cm
- 0.01 cm
- 2.5 × 25 cm

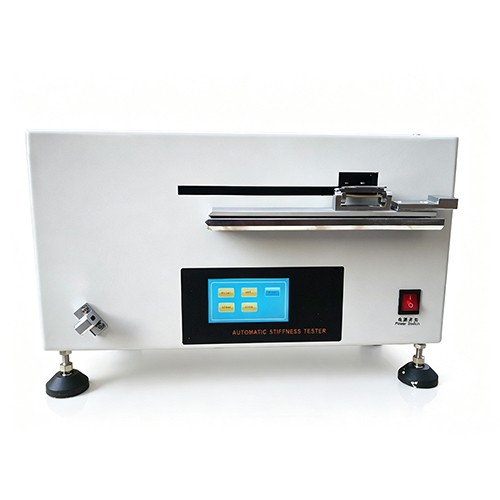

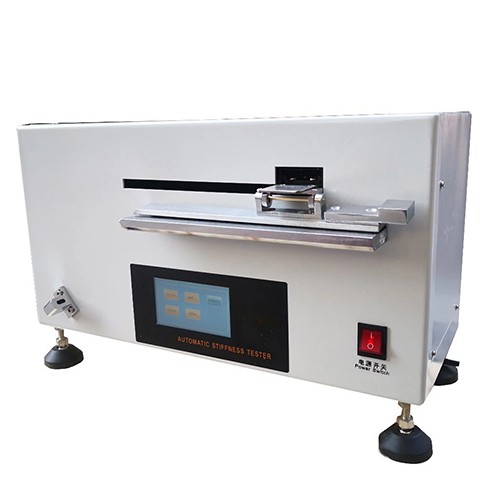

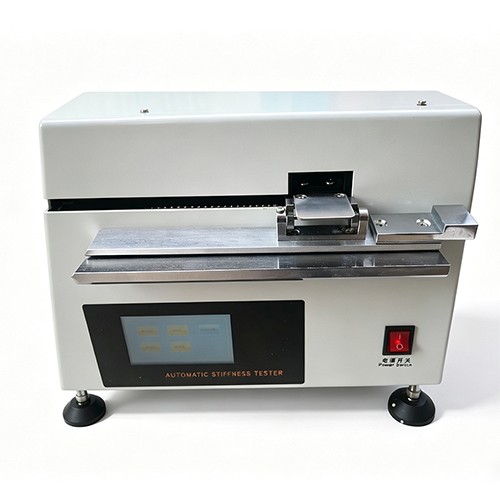

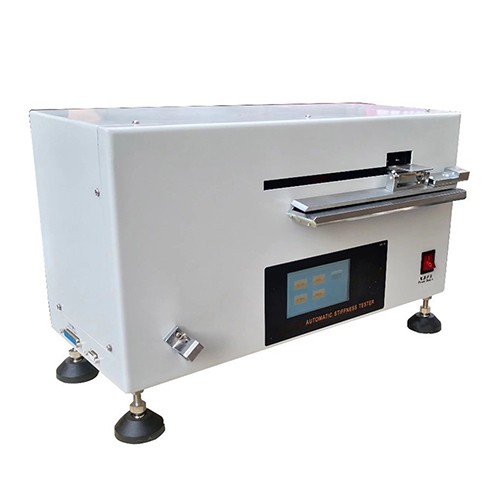

The automatic fabric stiffness tester is used to test a wide range of woven and knitted products, nonwovens, and coated fabrics, including cotton, wool, silk, linen, and chemical fibers, as well as elastic paper, leather, film, and other materials.
Product Description
The automatic fabric stiffness tester is used to test a wide range of woven and knitted products, nonwovens, and coated fabrics, including cotton, wool, silk, linen, and chemical fibers, as well as elastic paper, leather, film, and other materials.
Standards
ASTM D1388, IS09073-7, British Standard EN22313
Technical Data
|
Main Parts |
Microcomputer control, infrared stealth tilt detection, touch screen operation |
|
Test angle |
41. 5°, 43°, 45° |
|
Extended E length |
0.5-20.5 cm |
|
Test Accuracy |
0.01 cm |
|
Specimen size |
2.5 × 25 cm |
|
Test speed |
0.1-5 mm/s (adjustable). |
|
Statistics F function |
A: Average bending length (cm), average bending stiffness in mN.cm, CV % |
|
Power supply |
AC 110 / 220V, 50 / 60Hz |
|
I don't want to be a good person |
470 × 230 × 310 mm |
|
weight |
18 kg |
