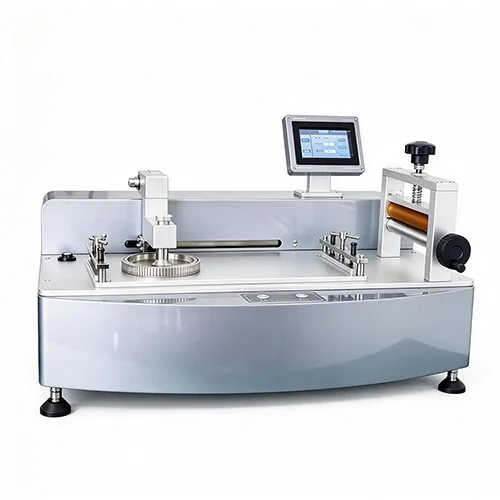

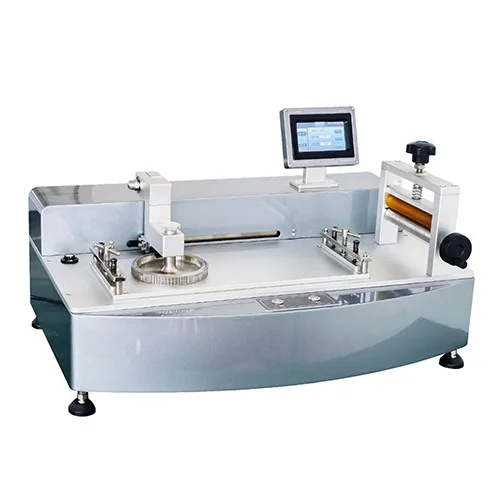

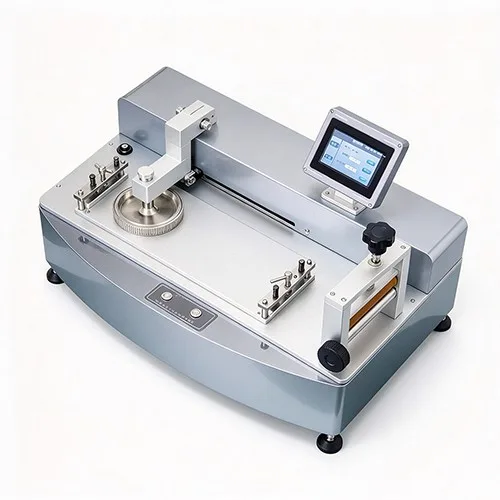

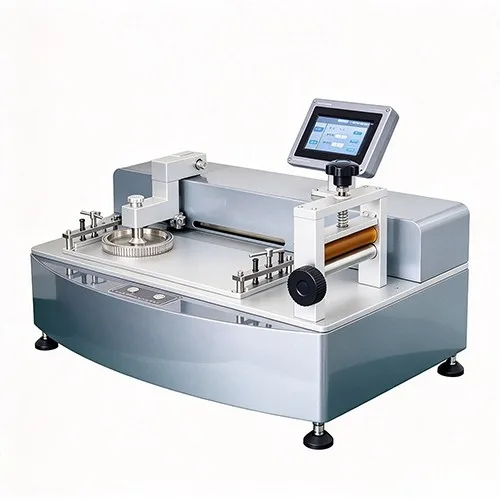

Fiber Shedding Tester is designed to evaluate the fiber shedding characteristics of various fabrics.
Product Description
Product Introduction
It is designed to evaluate the fiber shedding characteristics of various fabrics.
Standards
GB/T 40270-2021, AATCC 135, AATCC 93, ASTM D4685
Product Features
1. Large color touchscreen interface with bilingual (Chinese/English) operating system;
2. Sliding drive mechanism utilizes imported linear sliders for smooth operation;
3. Quiet drive motor equipped with a speed controller for low-noise operation;
4. Core data processing powered by an STMicroelectronics 32-bit multifunctional motherboard;
5. Sliding drive mechanism utilizes imported linear sliders for smooth operation;
6. Equipped with high-quality 304 stainless steel specimen clamps and weights;
7. Audible alert upon test completion;
8. Equipped with a precision leveling device;
9. Robust desktop design for stability and easy portability.
Technical Data
|
No. |
Item |
Specification |
|
1 |
Test method |
Rubbing method (reciprocating motion) |
|
2 |
Rubbing head diameter |
90 ± 0.1 mm |
|
3 |
Rubbing stroke |
200 mm |
|
4 |
Rubbing load |
595 g ± 1 g |
|
5 |
Rubbing speed |
30 cycles/min |
|
6 |
Specimen dimensions |
420 mm × 130 mm |
|
7 |
Power supply |
AC 220 V, 50 Hz |
|
8 |
Dimensions (L × W × H) |
600 mm × 400 mm × 350 mm |
|
9 |
Weight |
Approx. 45 kg |
Packing List for Standard Accessories
|
No. |
Item |
Qty |
Remark |
|
1 |
Main unit |
1 |
— |
|
2 |
Abrasive pads |
2 |
— |
|
3 |
Foam pad |
1 |
— |
|
4 |
Sandpaper (600 grit) |
2 sheets |
420 mm × 130 mm |
|
5 |
Certificate of conformity |
1 |
— |
|
6 |
User manual |
1 |
— |
|
7 |
Product brochure |
1 |
— |
