- ST-336
- 5.000N.m (500cN.m)
- 0.1 cN.m
- ±150°
- 0.1°

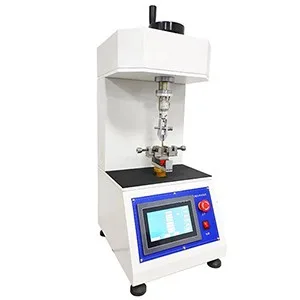

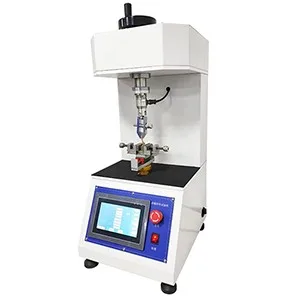

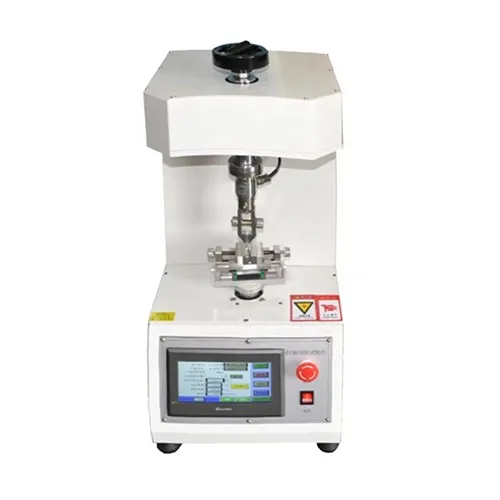

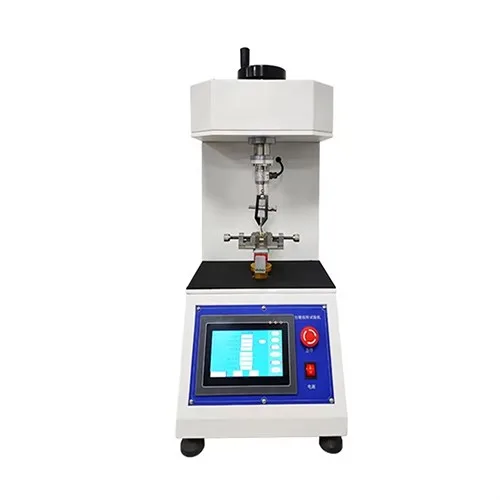

Zipper Torque Tester is designed for testing the binding strength of the zipper pullers and the ability to withstand the torsion value,
Product Description
Control mode: the Taiwan letter jie touch screen + PLC, servo motor drive, Chinese interface, easy operation, all the test conditions directly by the touch screen input: Angle, velocity and other parameters can be set;
Features
1. Touch screen control, simple interface, easy to operate, touch sensitive, switch between Chinese and English.

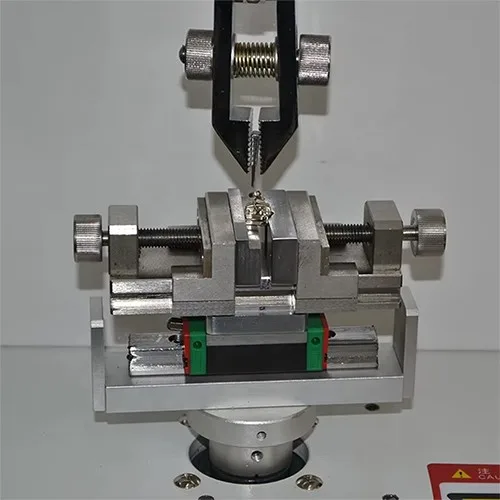

2. The torsional fixture is made of stainless steel, with a simple and elegant appearance.
3. The rotating structure adopts low noise reducer, which runs smoothly and has low noise.
4. Three test methods: torsion break test, fixed Angle and fixed load.
5. Can connect to computer and printer.
6. All experimental data can be inquired without connecting to the computer.
7, Microcomputer control, automatic testing, calculation and analysis results, printing data.
8. Units can be switched (cn.m and N.m).
ASTM D2061,QB/T 2171-2001.QB/T 2172,QB/T 2173
Technical Data
|
Item |
Specification |
|
Torque range |
5.000N.m (500cN.m) |
|
Torque accuracy |
0.1 cN.m |
|
Torsion Angle |
±150° |
|
Torsion Angle accuracy |
0.1° |
|
Torsional speed |
0.5r/min–2.0r/min |
|
Deceleration ratio |
20 times |
|
Power supply |
AC220V, 50Hz, 100W |
|
External dimensions |
460×410×550mm |
|
Weight |
50kg |
