- ST-6021A
- (L)125-155 × (W)20-25 mm
- 76 mm
- 19 mm
- 0-300 ±10 CPM, adjustable
Asian De Mattia Flex Tester Coated Fabric Flex Tester Digital Rubber De Mattia Flex Fatigue Cracking Tester Demattia Flex Cracking Tester De Mattia Rubber Flexing Fatigue Testing Machine ASTM D813 ISO 132 Is 15298 Astm D813 Rubber Flex Cracking Tester Demattia Flexing Cracking Testing Machine Leather De Mattia Flex Fatigue Cracking Tester Is 7016 Flex Tester
Product Description

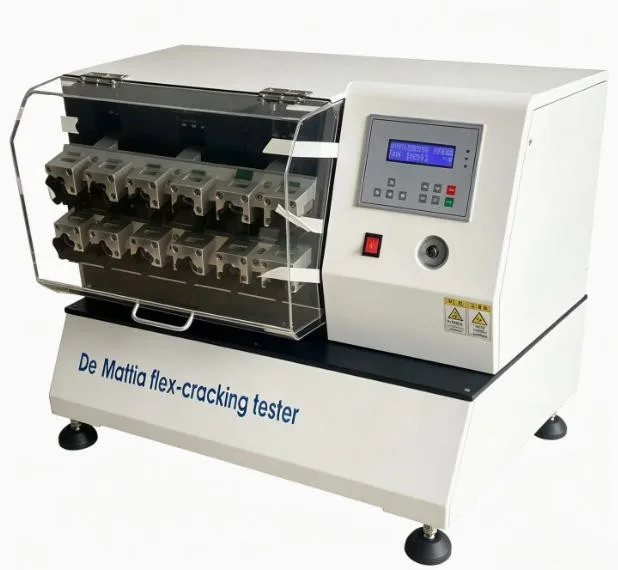

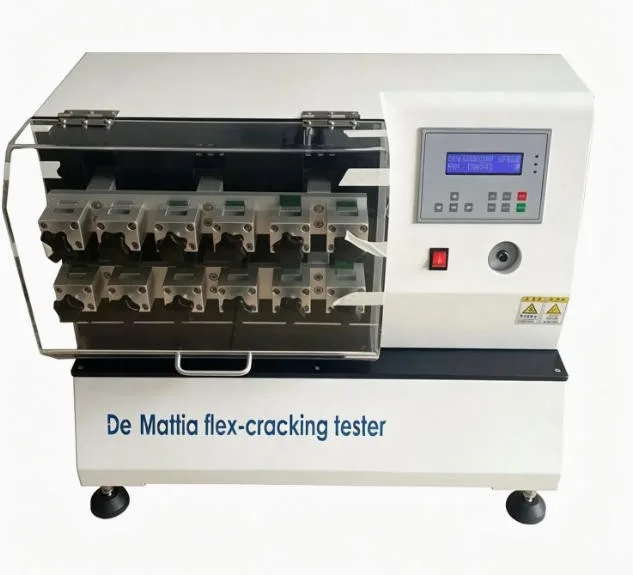

1. Instrument Introduction
Specimens are clamped between the machine fixtures. After continuous flexing fatigue cycles, the cracking degree of samples is observed to compare material durability. It is applicable to rubber, leather, synthetic leather, shoe sole and other materials.
2. Product Functions
Determination of flex cracking performance for vulcanized rubber, leather and fabrics.
3. Compliance Standards
This instrument complies with ASTM-D813, ASTM-D430, GB/T13934-2006, GB/T13935, GB/T20991 Clause 6.5.1, JIS-K6301, ISO132, ISO133, BS-903-A10 and other relevant standards.
4. Product Features
| Parameter | Specification |
|---|---|
| Specimen dimension | (L)125-155 × (W)20-25 mm |
| Maximum fixture spacing | 76 mm |
| Minimum fixture spacing | 19 mm |
| Test speed | 0-300 ±10 CPM, adjustable |
| Reciprocating stroke | 57 mm |
| Counter range | 0-9999999 (7-digit programmable counter) |
| Standard specimen capacity | 6 groups |
| Safety protection | Transparent safety shield with interlock shutdown function |
| Overall dimensions | 680 × 460 × 580 mm |
| Net weight | 68 kg |
| Power supply | AC220V |
Standard Accessories
| No. | Item | Qty | Unit |
|---|---|---|---|
| 1 | Specimen cutting die | 1 | set |
| 2 | Power cable | 1 | pc |
| 3 | Operation manual | 1 | pc |
| 4 | Packing list | 1 | pc |
