- STET-006T

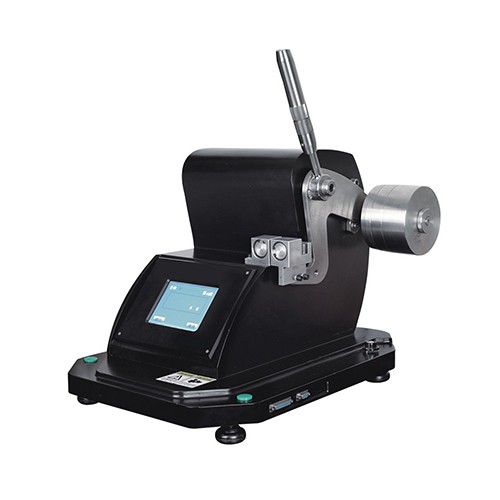

Digital Elmendorf Tearing Machine is designed for Elmendorf method tearing resistance test of textile, fabrics, paper, paper board and thin film .
Product Description
Application
Used for the determination of tear resistance of various woven fabrics (Elmendorf method), can also be used for the determination of tear resistance of thick paper, plastic cloth, electrical tape, etc.
Standards
GB/T 3917.1 FZ/T60006 FZ/T75001 ISO1974/9290 ASTM D1424/5734, etc
Features
1. 128N test range
2, microcomputer control, digital decoding, support online communication
3, color touch screen control, Chinese and English menu operation interface
4, pneumatic clamping, automatic incision
5, a variety of measurement units (cN, GF) selection
Technical Parameters
| Item | Parameter |
|---|---|
| Test range | A hammer: (0 ~ 16) N; B hammer: (0 ~ 32) N; C hammer: (0 ~ 64) N; D hammer: (0 ~ 128) N |
| Test accuracy | ≤± 0.2% F·S |
| Tear length | 43 mm |
| Automatic incision length | (20±0.2) mm |
| Sample size | (100×63) mm |
| Sample holding | Pneumatic mode |
| Working power supply | AC220V±10%, 50Hz, 100W |
| Overall size | (560×480×530) mm |
| Weight | 78 kg |
