Product Description

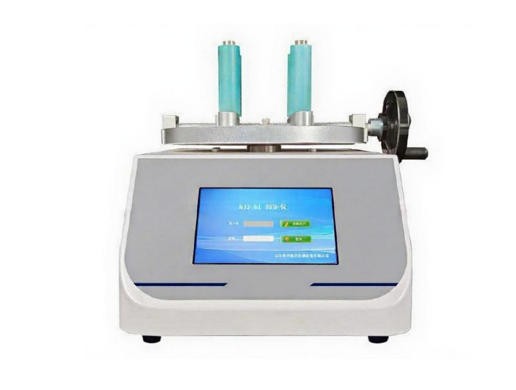

ST-NJY01 Torque Tester is used to measure the locking and opening torque of bottle caps, spout packages, and hose packages.

The torque value for cap locking and opening of bottled, spout, and hose products is one of the key process parameters controlled offline or online by manufacturers. Proper torque directly affects product transportation and end-user experience.

1. Applications

Basic Applications

• Bottled containers: Test locking/opening torque of threaded caps for food and pharmaceutical bottles (e.g., beverage bottles, medicine bottles).
• Hose packages: Test locking/opening torque of threaded caps for food, pharmaceutical, and cosmetic hoses (e.g., eye drop bottles, hand cream, shoe polish).

Extended Applications

• Thermos & vacuum cups: Test locking/opening torque of threaded caps for thermoses and vacuum cups.

2. Product Features

• Class 0.5 high accuracy; multiple measuring ranges; automatic zero calibration at power-on.
• International brand torque sensor + imported high-speed sampling chip, ensuring high accuracy and repeatability.
• 5-inch touch screen, independent menu, easy operation; displays test data and test curves.
• 4 test modes: manual opening, automatic opening, manual locking, automatic locking.
• Sensor self-protection function with adjustable protection torque for safe operation.
• Group test & statistics, power-off memory function.
• High torque resolution: 0.001 N·m, stable zero point with minimal drift.
• Supports input of test temperature and humidity (shown on test reports).
• Power-on password login + 4-level authority management to prevent unauthorized use.
• Built-in mini printer for data query, statistics, and printing.
• Optional professional GMP-compliant software with data traceability, multi-level authority, audit trail, and electronic signature.

3. Technical Specifications

• Measuring range: 0~20 N·m (standard); optional 40 N·m / 50 N·m
• Accuracy: Class 0.5
• Torque resolution: 0.001 N·m
• Clamping range: Diameter φ2 mm ~ φ180 mm
• Test count: 0~100
• Power supply: AC 220 V, 50 Hz
• Dimensions: 270 mm (L) × 330 mm (W) × 250 mm (H)
• Net weight: 16 kg

4. Reference Standards

GB/T 17876, BB/T 0025, ASTM D 2063, ASTM D 3198, ASTM D 3474

Note: Some standards require custom fixtures (optional extra).

5. Configuration

Standard Configuration

• Main unit
• Mini thermal printer
• Universal clamps

Optional Items

• Professional supporting software
• Communication cable
• Non-standard customization

Note: Computer is user-supplied; mini printer is thermal type.
