- ST-65
- 457x457x457mm (18")
- 48 ± 2 rpm
- 0-9999
- 24 pieces
Drop resistance testing instrument is deisigned to test the drop resistance of fabrics. A rotating box that can be rotated forward and reversed, loaded samples and nitrile rubber balls rotate at a specified speed to simulate the pressing, collision action using feather products. Results were evaluated by counting the number of particles that passed through or protruded from the fabric.
Product Description
Product Introduction

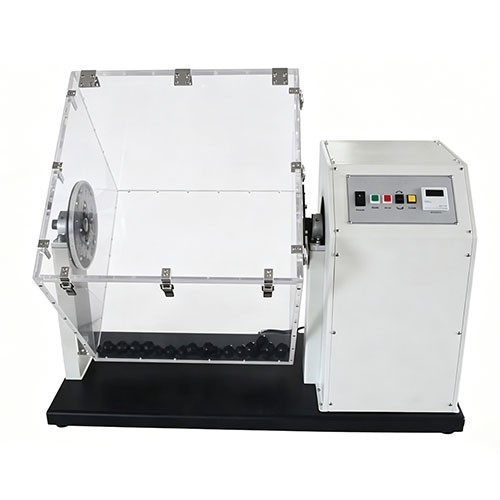

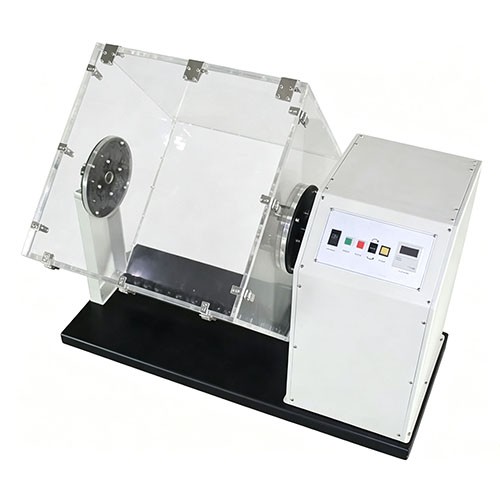

Drop resistance testing instrument is designed to test the drop resistance of fabrics. A rotating box that can be rotated forward and reversed, loaded samples and nitrile rubber balls rotate at a specified speed to simulate the pressing, collision action using feather products. Results were evaluated by counting the number of particles that passed through or protruded from the fabric.
Standards
FTMS T91 5530, IDFL 20-1
Technical Data
|
Inner box size |
457x457x457mm (18") |
|
Rotation speed |
48 ± 2 rpm |
|
Count Range |
0-9999 |
|
Rubber S topper |
24 pieces (0.57kg total) |
|
weight |
75 kg |
|
Power supply |
AC 110/220 volts 50/60 Hz |
