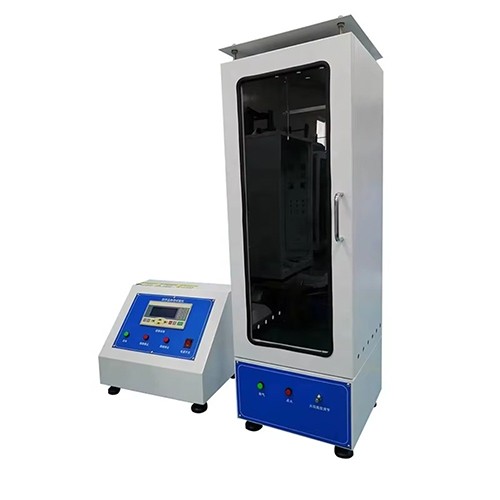

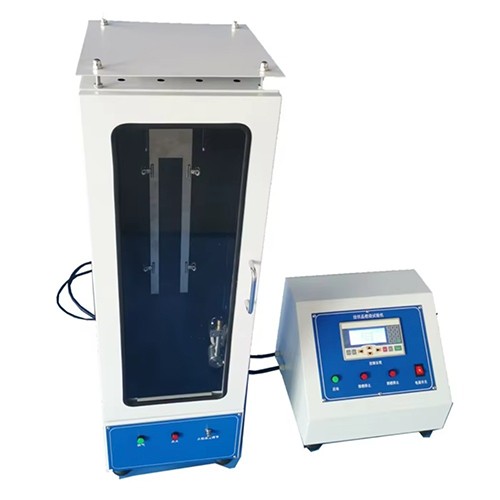

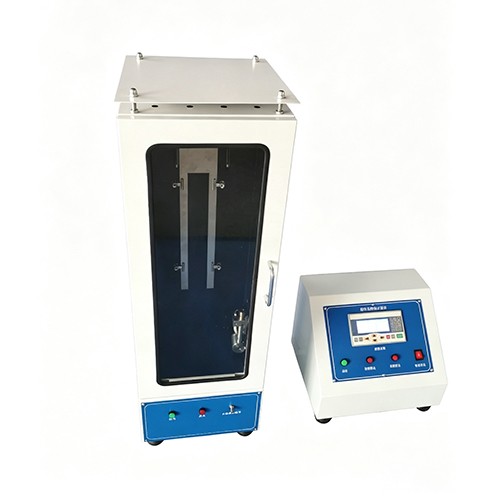

This testing machine is suitable for the determination of the flame retardant properties of various flame retardant textiles; According to the GB/T 545-1997 standard, it is designed to determine the continuous combustion, flame retardant and carbonization trends of textiles. The instrument is easy to operate.
Product Description
This testing machine is suitable for the determination of the flame retardant properties of various flame retardant textiles; According to the GB/T 545-1997 standard, it is designed to determine the continuous combustion, flame retardant and carbonization trends of textiles. The instrument is easy to operate.
Flame Retardant Tester Standard
GB/T 5455-1997
Flame Retardant Tester Features

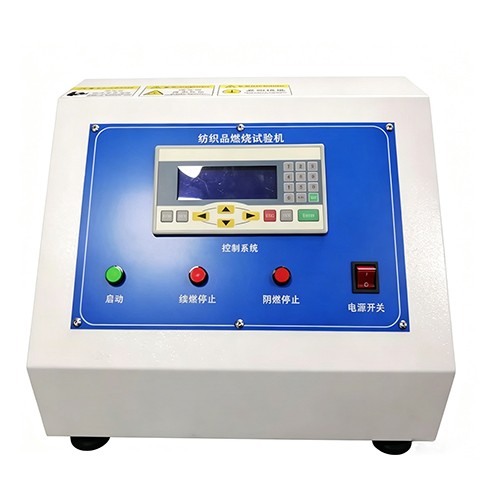

The testing machine is composed of control box, combustion box, burner, PLC, LCD display, solenoid valve, high-pressure ignition, gas pipeline, pressure regulator and signal control line.
Flame Retardant Tester Technical Data
|
Model |
FRT-810 |
|
Combustion gas |
Industrial propane or butane gas (product purity greater than 98%). |
|
Time |
You can set 0 ~ 99 minutes and 99 seconds |
|
Rekindle time |
You can set 0 ~ 99 minutes and 99 seconds |
|
Smoldering time |
You can set 0 ~ 99 minutes and 99 seconds |
|
Burner nozzle diameter |
Ø 11 mm |
|
Combustion nozzle head and vertical angle |
25o |
|
Internal dimensions of the combustion chamber (LxWxH) |
329 x 767 mm. |
|
Roof vent dimensions |
12.5 mm Ø, quantity: 16 |
|
Vent size box on both sides |
12.5 mm Ø, quantity: Six on each side of the box |
|
Sample clips |
Two thick 2.0 mm thick, 422 mm long, 89 mm wide, U-shaped stainless steel plate, sample size: 356 x 51 mm |
|
Weight weight |
54.5g，113.4g，226.8g，340.2g，453.6g。 |
