- ST-WL2
- ASTM & ISO
- 5,10,20,50,100,200kg
- within ± 1%
- 500mm
The horizontal tensile tester is suitable for rubber and plastic, paper products, color printing and packaging, tape, bags and handbags, textile, pharmaceutical, daily chemical, food, wire and electronics and other industries. It can test the physical properties of various materials, finished and semi-finished products, and select different fixtures for stretching, compression, stretching, compres
Product Description

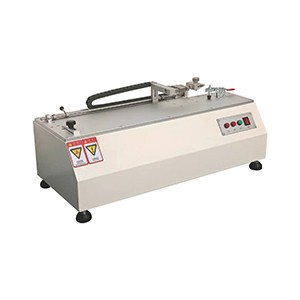

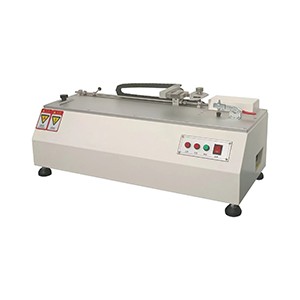

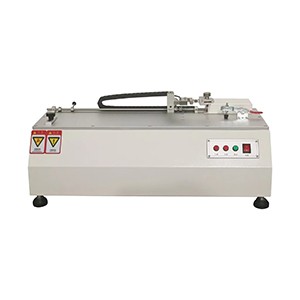

This horizontal tensile tester is suitable for rubber and plastic, paper products, color printing and packaging, tape, bags and handbags, textile, pharmaceutical, daily chemical, food, wire and electronics and other industries. It can test the physical properties of various materials, finished and semi-finished products, and select different fixtures for stretching, compression, stretching, compression, bending, tearing, peeling, adhesion, shear and other tests.
Standards
ASTMD903, GB/T16491, GB/T1040, GB/T8808, GB13022, GB/T 2790/2791/2792, GB/T 16491-2008, GB/T 12160-2002, GB/T 16825-2008, CNS- 11888, JIS K6854, PSTC-7, ISO 3377-1, ISO 3377-2
Product Feature
1) It has protection functions such as overload, over current, over voltage, displacement limit, emergency stop, etc
2) The controller can control more load cells, with high integration, stable and reliable, and easy to adjust.
3) When the test is completed, it will automatically stop.
4) Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse generation (PWM), and other functions in one.
5) Mechanical zeroing, automatic force measurement, zeroing, calibration and preservation, highly integrated control circuit.
Technical Data
|
Capacity |
5,10,20,50,100,200kg |
|
Monitor |
Touch screen display and connect to a computer |
|
Accuracy |
within ± 1% |
|
Force analysis |
1/300000 |
|
Effective force measurement range |
1 ~ 100% F.S |
|
Deformation indicates accuracy |
within ± 1% |
|
Test speed |
50 ~ 500 mm/min |
|
Maximum travel |
500 mm |
|
Test width |
Φ120mm |
|
Power unit switch |
kgf,gf ,N,kN,lbf |
|
Stress cell switching |
MPa,kPa,kgf/cm2,lbf/in2 |
|
Deformation unit switching |
mm, cm, inch |
|
Power Supply |
AC 220V volts, 50/60 Hz, 10a or specified |
