- ST-300
- (0.3~30)N
- 0.001N
- ±1%(Range5%~100%)
- (35~300)mm( adjustable)

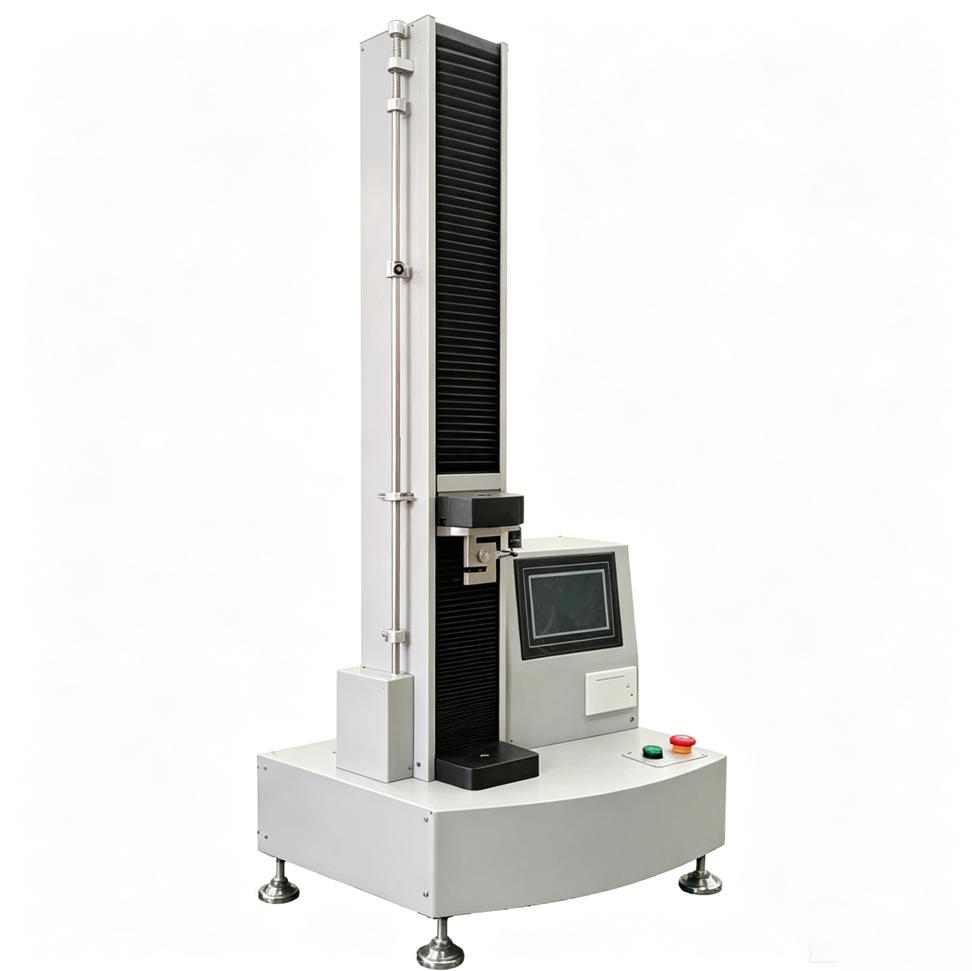

Vertical Tensile Tester is designed for paper making, plastic film, chemical fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to determine the tensile strength of objects
Product Description
Adhesive peel strength tester is used in paper making, plastic film, chemical fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to determine the tensile strength of objects.
Application
Paper, cardboard; aluminum foil, aluminum-plastic tape;Plastic film and other non-metallic materials.Non-woven fabric product
Function
Measure tensile and tensile strength measuring elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus, measure the peel strength of adhesive tape products.

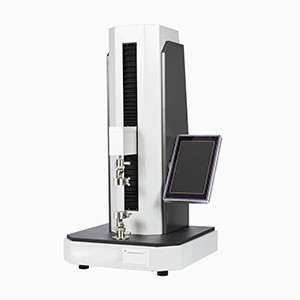

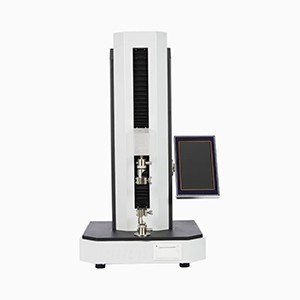

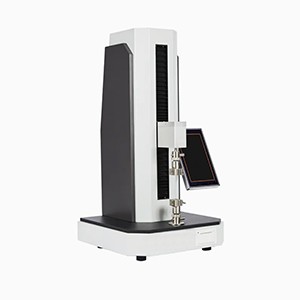

Adhesive Peel Strength Tester Product Features
● Ball screw, three guide shaft, smooth and accurate transmission.
● ARM processor, imported 24-bit analog-to-digital converter, fast control, accurate and fast calculation data.
● Has data memory and overload protection functions.
● Cotex-M4 ARM processor
● Test data can be exported from USB flash drive.
● The system and screen software can be upgraded through the network or USB flash drive.
● Supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.
● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor the paper test data in real time.
Adhesive Peel Strength Tester Standards
GB/T 12914，GB/T 2792，GB/T 24218.3，GB/T 1040，TAPPI T 494，GB/T8939-2018
Adhesive Peel Strength Tester Technical Data
|
NO. |
Parameter items |
Technical Indicators |
|
1 |
Power supply |
AC(100～240)V，(50/60)Hz，100W |
|
2 |
Working environment |
Temperature: (10~35)°C, relative humidity ≤85% |
|
3 |
Display |
10-inch color touch screen with 1024*600 resolution capacitive touch |
|
4 |
Measuring range |
(0.3~30)N |
|
5 |
Resolution |
0.001N |
|
6 |
Indication error |
±1%(Range5%~100%) |
|
7 |
Work Capacity |
(35~300)mm( adjustable) |
|
8 |
Specimen width |
80mm |
|
9 |
Test speed |
(1~500)mm/min(adjustable) |
|
10 |
Data storage |
50 test data |
|
11 |
Data export |
Export data to USB flash drive |
|
12 |
|
Built-in thermal printer |
|
13 |
Communication interface |
USB、WIFI(2.4G) |
|
14 |
Dimensions |
400×320×900 mm |
|
15 |
Net weight |
71 kg |
