- ST-3000A
- 3000kN
- 0.1kN
- 300mm
- 1.5kw

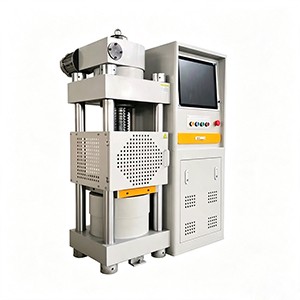

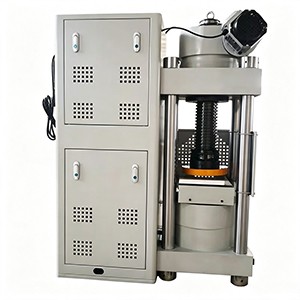

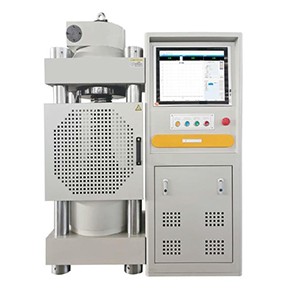

Auto concrete hydraulic compression testing machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test, it can also be used for testing the compressive performance of other materials.
Product Description
Auto concrete hydraulic compression testing machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test, it can also be used for testing the compressive performance of other materials.
1.Spatial Adjustment Method

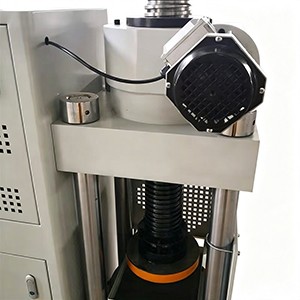

Electric lift
The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder. Computer control signals to the servo valve, Control direction and opening of the servo valve, to control the flow into the cylinder, achieve constant test force control.
The control system includes digital servo valve, high-precision sensors, controllers and software, high control precision and reliability. Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.
The control system has the following functions:
1). Closed-loop control with force;
2). Can achieved constant loading rate or constant stress loading rate;
3). Adopt computer for electronic measurement, automatic test;
4). Computer automatically calculates the results and print reports.
5). Test reports can be to self-design and exported to Excel.
When the test force more than 3% of the maximum test force, the overload protection, oil pump motor shut down.
Technical Data
Model
ST-3000A
Max Load
3000kN
Control Mode
Computer system
Test Force Measuring Range
4%–100% FS
Test Force Relative Error
≤ ±1% of indicating value
Test Force Resolution
0.1kN
Upper Plate Size
280 × 320mm
Lower Plate Size
280 × 320mm
Maximum Distance Between Upper &
Lower Plate
300mm
Piston Diameter
Φ300mm
Piston Stroke
80mm
Motor Power
1.5 kW
Machine Dimension
1060 × 680 × 1480 mm
Weight
1225 kg
