- ST-120
- 10kgf (100 N)
- 0.01 N
- 120 mm
- 1% FS-100 % FS

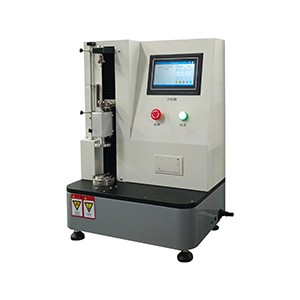

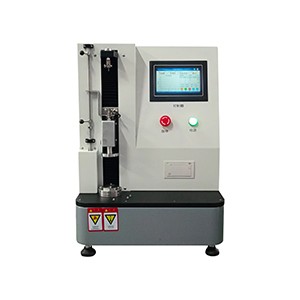

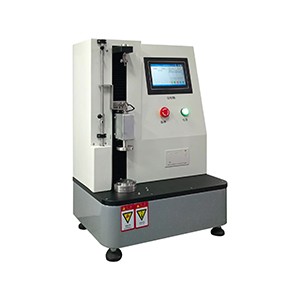

The spring tensile tester is made in accordance with the technical requirements specified in JB/T7796-1995 "Technical Requirements for Spring Compression and Tensile Testing Machines". It is mainly used to test the strength of various precision coil springs and elastic elements, that is, to test the test force of the spring when it is deformed or to determine the test force of the spring at a cert
Product Description
The spring tensile tester is made in accordance with the technical requirements specified in JB/T7796-1995 "Technical Requirements for Spring Compression and Tensile Testing Machines". It is mainly used to test the strength of various precision coil springs and elastic elements, that is, to test the test force of the spring when it is deformed or to determine the test force of the spring at a certain height. The machine can be customized to meet the different requirements of users.
Technical Data
|
Test force |
10kgf (100 N) |
|
Resolution |
0.01 N |
|
Precise measurement range |
1% FS-100 % FS |
|
Indicates the repeatability error of the value |
Less than ± 0.5% |
|
Indicates the relative error of the value |
less than ±0.5% |
|
Test itinerary |
120 mm |
|
Speed range |
0.1-250 mm/min (infinitely variable) |
|
Transmission mechanism |
High precision ball screw |
|
Compression disc diameter |
Ф30 mm |
|
Show method |
Large LCD monitor, Chinese monitor |
|
Drive motor |
High precision servo motor and drive system |
|
Data processing |
Automated data acquisition and processing, which can be saved, queried, and printed |
|
Machine weight |
70 kg |
|
Power supply |
220V |
