- ST-50N
- 50N
- 0.5
- 0.2% - 100% FS
- 0.001mm

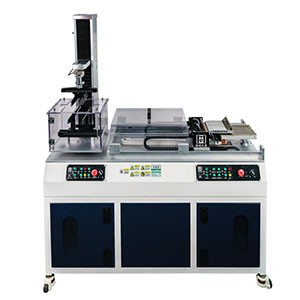

The servo horizontal universal material testing machine (20 channels) is a testing machine specially developed and used for the solar photovoltaic industry. It can install 20 force sensors.
Product Description
The servo horizontal universal material testing machine (20 channels) is a testing machine specially developed and used for the solar photovoltaic industry. It can install 20 force sensors.
Technical Data
|
1. Maximum test force |
50N |
|
2. Accuracy class of testing machine |
0.5 |
|
3. Measuring range of test force |
0.2%‑100% FS |
|
4. Relative error of indicated value of test force |
Within ±0.5% of the indicated value |
|
5. Resolution of test force |
1/500000 of the maximum test force (resolution remains unchanged in the whole process) |
|
6. Relative error of displacement indication |
Within ±0.5% of the indication |
|
7. Displacement resolution |
0.001 mm |
|
8. Adjustment range of force control rate |
0.1‑5% FS/S |
|
9. Relative error of force control rate |
Within ±1% of the set value |
|
10. Beam speed adjustment range |
0.05‑3000 mm/min |
|
11. Relative error of beam speed |
Within 1% of the set value |
|
12. Control range of constant force, constant deformation and constant displacement |
0.5%‑100% FS |
|
13. Control accuracy of constant force, constant deformation and constant displacement |
When the set value is less than 10% FS: within ±1% of the set value; When the set value is ≥10% FS: within ±0.1% of the set value |
|
14. Maximum stretching stroke |
450 mm |
|
15. Effective test width |
230 × 230 mm |
|
16. Battery chip clamp |
Applicable to 1‑20BB battery chips with various main‑grid quantities, and suitable for battery chips of various sizes within 230 mm × 230 mm |
|
17. Overall dimensions of main engine (L × W × H) |
1000 × 550 × 950 mm |
|
18. Power supply |
220V, 50Hz, 400W |
|
19. Main engine weight |
Approx. 140 kg |
