Product Introduction

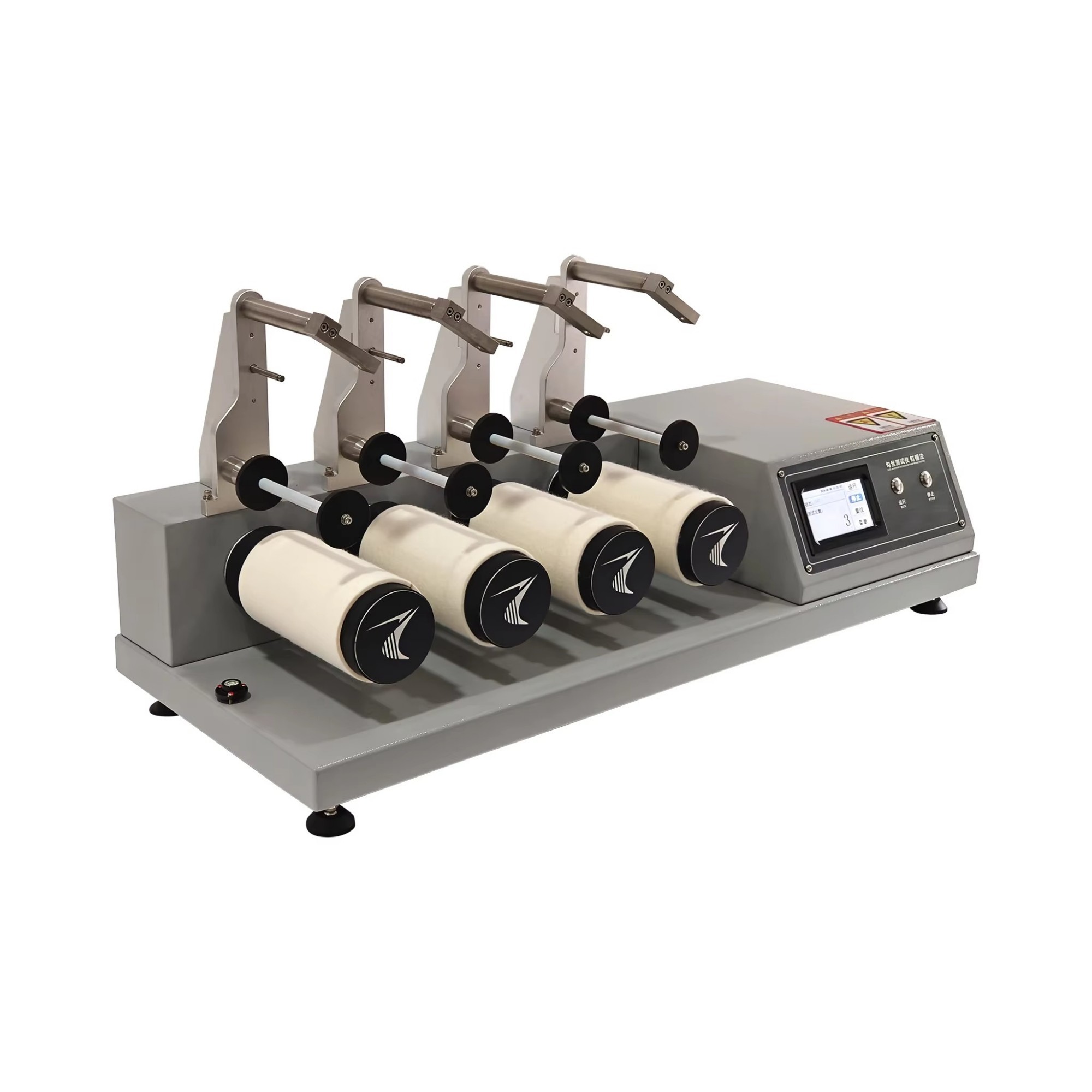

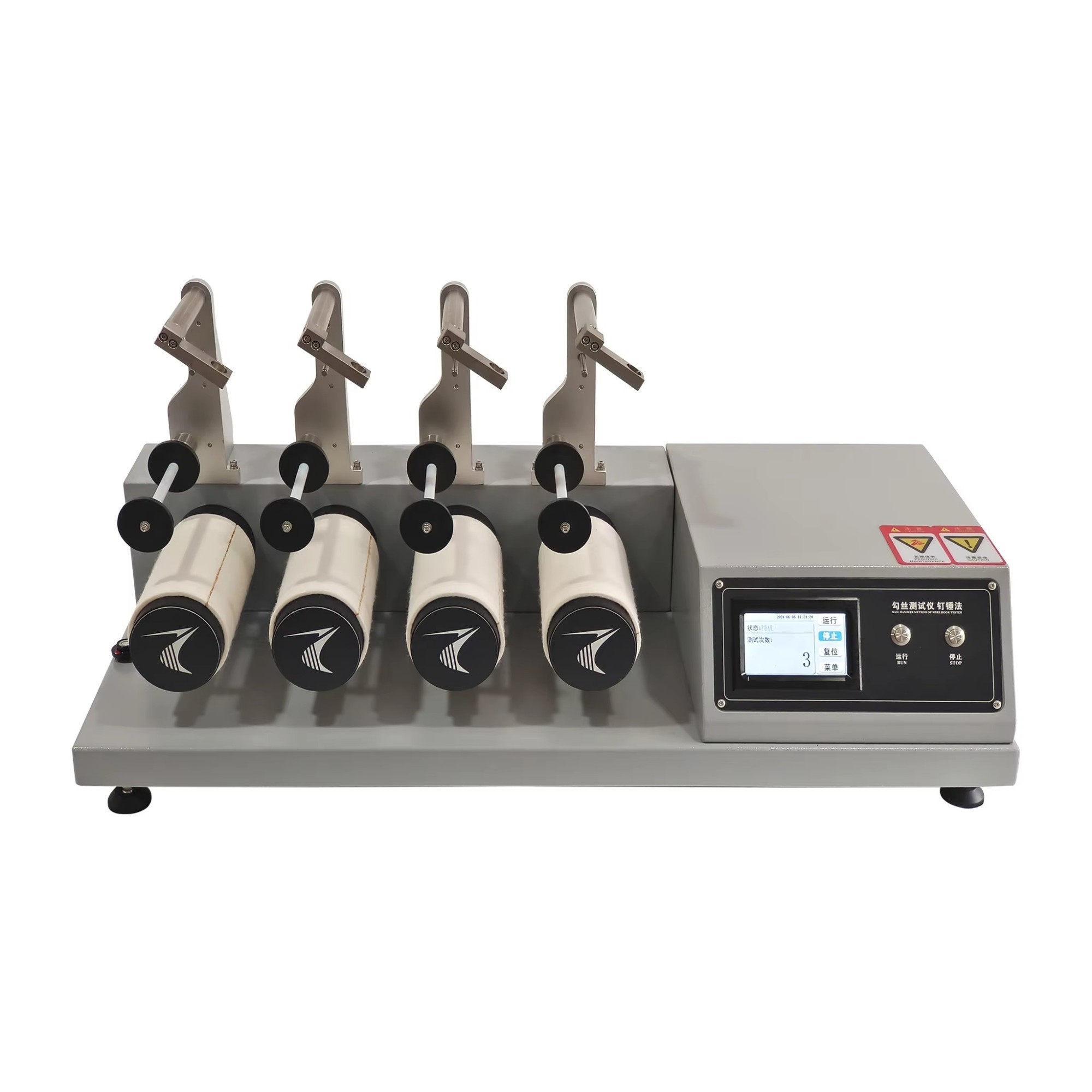

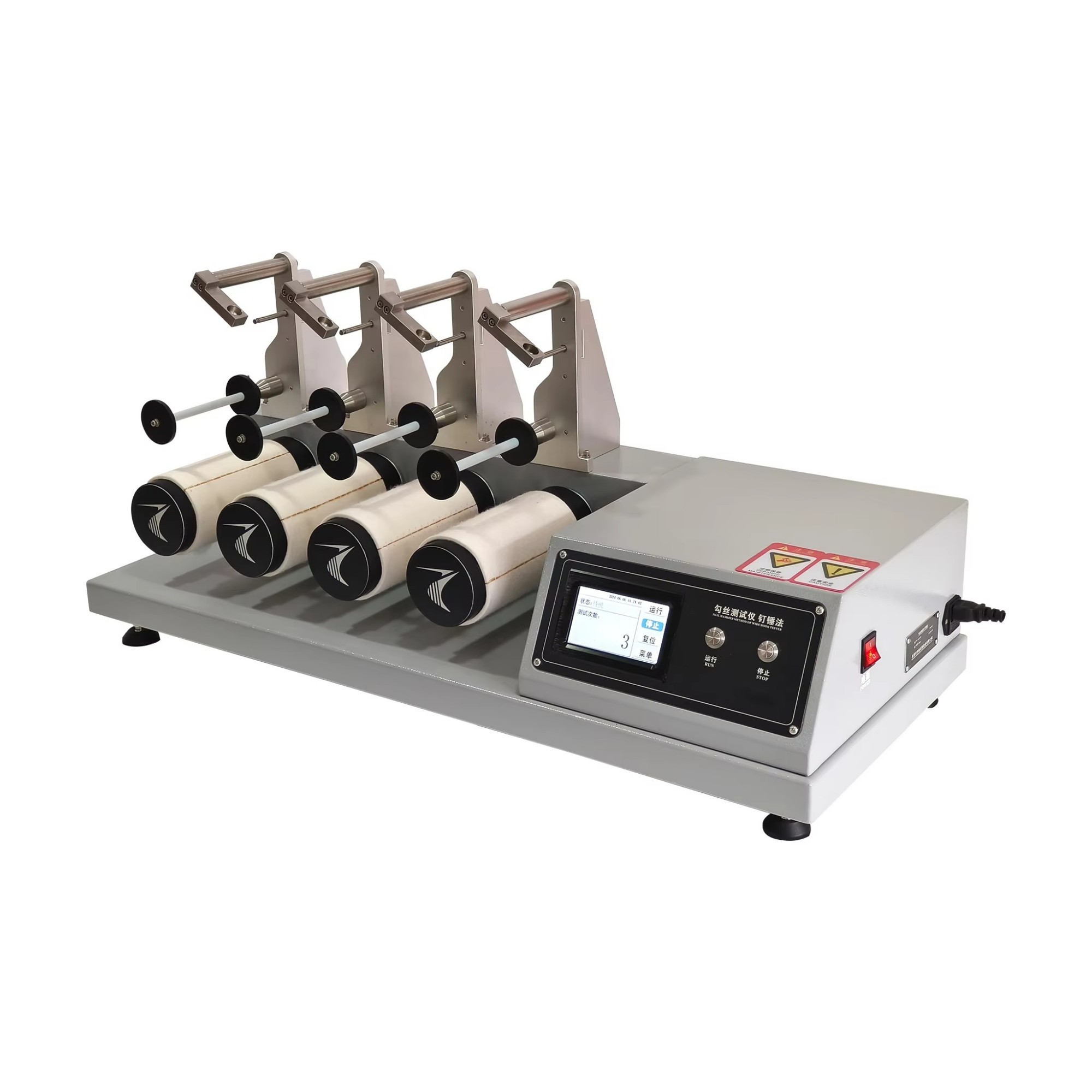

The ICI Mace Snag Tester is with 4 stations and is suitable for detecting knitted fabrics, woven fabrics and other fabrics that are easy to hook, especially chemical fiber filaments and textured yarn fabrics.

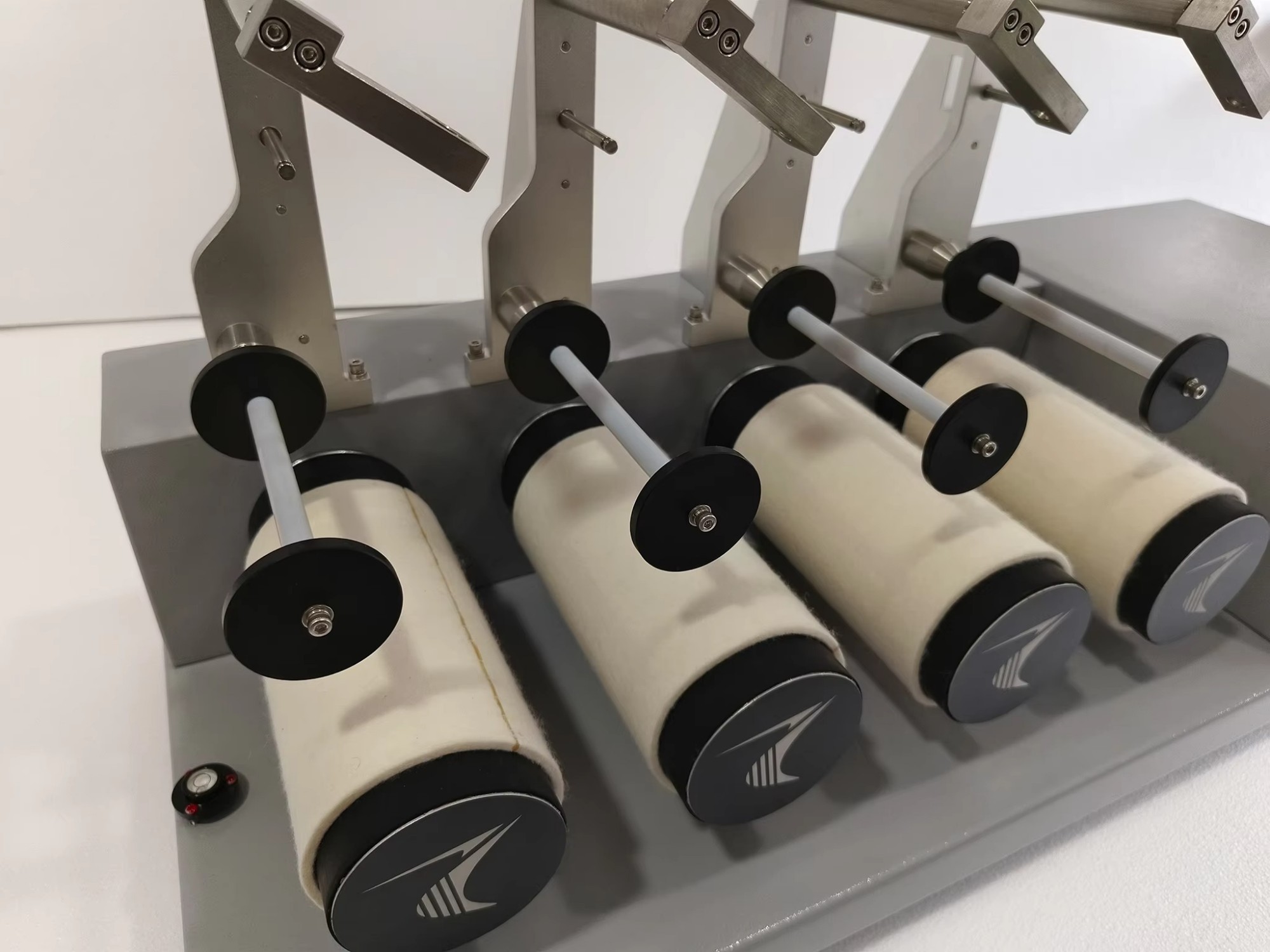

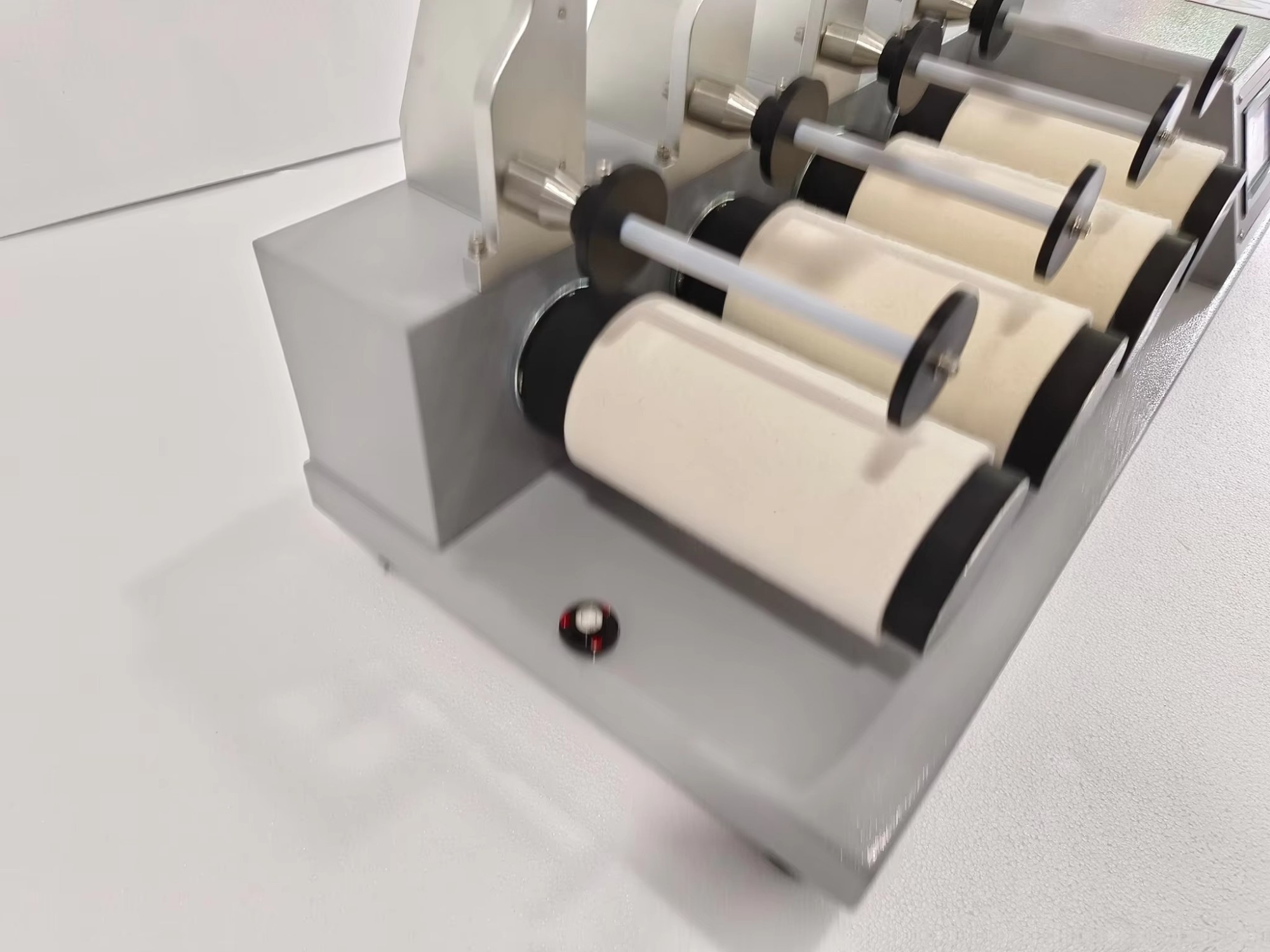

The tester places a hammer suspended by a chain around the guide rod on the surface of the sample covered in the drum. When the drum rotates at a constant speed for a certain number of times, the sample is removed and graded according to the rating graph in the rating box.

Standard

ASTM D3939, GB 11047 and JIS L 1058 standards

Technical Data

Model	ST-4S
Number of workstations	4 stations
Rotate barrel size	Diameter Φ82mm (including 3mm thickness of purchased rubber), 210mm width
The number of revolutions of the drum	60 ± 2 rpm
Nail hammer total mass	160 ± 10g (including isometric implantation of 11 studs)
Suture stitches	Exposed length 10 mm, tip radius: r0.13 mm
Fixed guide rod	Working width 125 mm, diameter 10 mm
The distance between the nail hammer and the guide rod	45 mm
power supply	AC 220 volts; 50 Hz
Exterior dimensions	910 mm × 360 mm × 460 mm
weight	50 kg
