- ST 34-135
ISO Flow Cups are designed in accordance with International Standard ISO 2431, DIN 53224, EN 535 ASTM D5125 Paints and varnishes-Determination of flow time by Use of Flow Cups Fourth edition . They are made of high quality aluminum and feature stainless steel nozzle inserts specification dependent . They are mirror polished smooth finished Ra 0.5 m ffor high efflux accuracy and easy maintenance. I
Product Description
Product Introduction

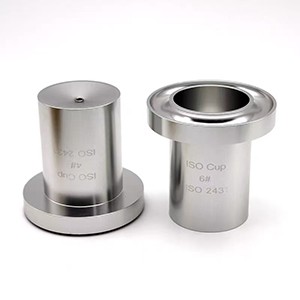

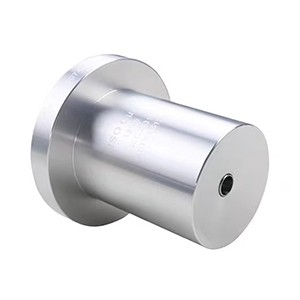

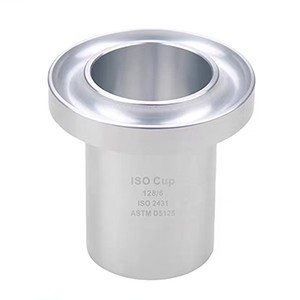

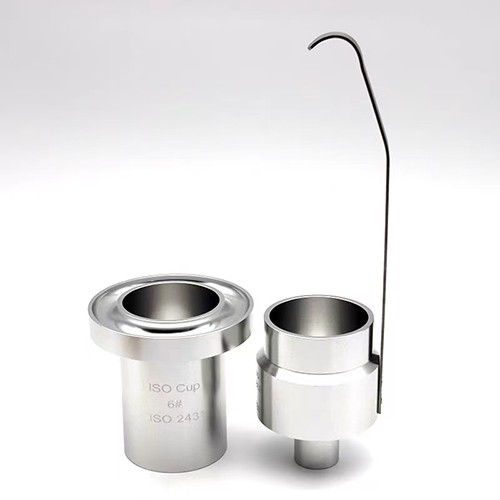

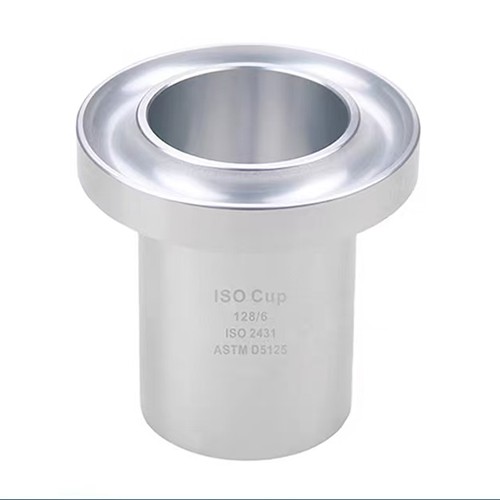

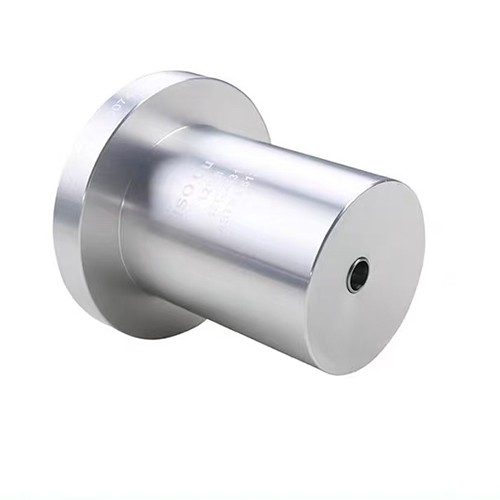

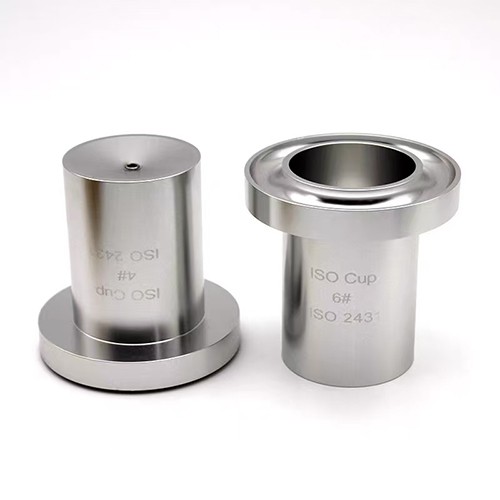

ISO Flow Cups are designed in accordance with International Standard ISO 2431, DIN 53224, EN 535 ASTM D5125 Paints and varnishes-Determination of flow time by Use of Flow Cups Fourth edition . They are made of high quality aluminum and feature stainless steel nozzle inserts specification dependent . They are mirror polished smooth finished Ra 0.5 m for high efflux accuracy and easy maintenance. ISO Flow Cups are applicable to Determine the flow time of Newtonian and near Newtonian fluids.
Technical Parameters
Material : Anodized Aluminum
Weight :0.38kg
Come with calibration certificate
ISO Flow Cups Detail Description
| Details/ISO Cups | ISO No.3 | ISO No.4 |
ISO No.5 |
ISO No.6 |
ISO No.8 |
| Orifice φ（mm） | 3.0 |
4.0 |
5.0 |
6.0 |
8.0 |
| Suitable Flow Time ( Sec) | 30-100 | 30-100 | 30-100 | 30-100 |
30-100 |
| Measurement Range (cSt) | 7-42 | 34-135 | 91-326 | 188-684 |
600-2000 |
| Model information | ST-7-42 | ST-34-135 |
ST-91-326 |
ST-188-684 |
ST-600-2000 |
