Product Description

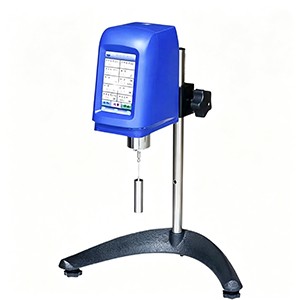

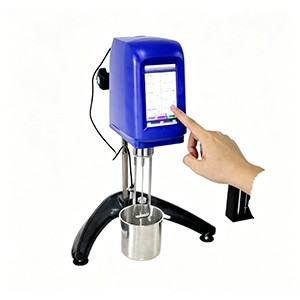

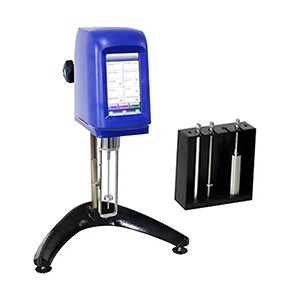

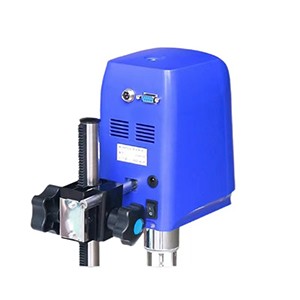

Intelligent Touch-screen Rotary Viscometer ST-028  are upgraded from old digital viscometer. They are equipped a 5 inches touch screen with a powerful human-machine interface , easy to use and can show many testing parameters. They use a MCS-51 series computer to constantly control the rotation speed and the whole testing process. Finish viscosity measurement automatically under controlling of computer and output test results to screen. They can be used to measure viscous resistance and absolute viscosity of liquid, and widely applied in the field of petri chemistry, medicine, food, light industry, textile industry, scientific research, etc.

Features

1. Small size, good stability, high precision and good anti-interference.
2. With patents to enable multiple sampling in one rotation. Other competitor only sample one time in one rotation.
3. Rotate by high sub-division stepper motor driver, with accurate speed, low noise, stable movements. And the change of AC
4. power frequency don't influence viscosity measurements.
5. For thixotropic Non-Newton fluid, timing function of instrument can ensure to get a good consistent testing results.
6. Dirven by stepper motor directly, convenient to change speed , display rotating speed clearly, good reliability and no shaking.
7. Five inches high definition touch scree display viscosity, speed, torque percentage, max. measurement range under current rotor and speed.

8. Display continuous change of viscosity Alarm for over measuring range.
9. Linear Calibration to full range by computer, measurement precision is 1.0% of full range.
10. Switching adapter, wide range power supply input 100V-240V for good anti-interference
11. Anti-static shell and PC material lifting pole
12. Durable new design with small shaft
13. ARM chip processor, processing data more quickly
14. Convert freely between various viscosity units , dynamic viscosity convert kinematic viscosity automatically
15. Accompanied with detailed operation instruction and correction function for viscosity coefficient.
16. Calibrated by user
17. Built-in RTD temperature sensor to monitor sample temperature in real time.
18. Come with RS 232 interface, can print measuring data by mini-printer with less labor.

Technical Data
