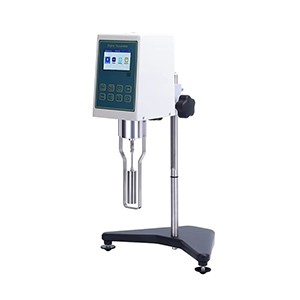

- STDV-1S
Viscometers are instruments used to measure the viscosity of a fluid, and are available in a variety of configurations. It can be used for viscosity test of epoxy, sealants, and paste.
Product Description
Viscometers are instruments used to measure the viscosity of a fluid, and are available in a variety of configurations. It can be used for viscosity test of epoxy, sealants, and paste.
Product Feature
1. Measure Range: up to 6,000,000mpa.s
2. High sensitivity
3. Microcomputer control
4. Rotational speed stabilization
5. Temperature display
6. TFT colourful display
Technical Data
|
Model |
STDV-1S |
STDV-5S |
STDV-8S |
STDV-10S |
|
Impetus |
AC110-240V DC12V 120W |
|||
|
Measurement range |
1-1x10 ^ 5mpa.s |
1-1X10 ^ 5mpa.s |
1-2x10 ^ 6mpa.s |
1-6x10 ^ 6mpa.s |
|
rotor |
1#、2#、3#、4 # 0# rotor is optional for measuring ultra-low viscosity 0.1 ~ 100mpa.s |
|||
|
Rotor speed |
6, 12, 30, 60 rpm |
0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm |
||
|
Once the measurement result is stable, the rotor stops automatically |
||||
|
The sample size required for each measurement |
250-400 ml |
|||
|
Measurement accuracy: |
±1% |
±1% |
±1% |
±1% |
|
Temperature sensor |
include |
|||
|
Computer RS232 |
included |
|||
|
Work environment |
5-35 °C, humidity ≤ 80% |
|||
|
wrap |
415*335*370 mm |
|||
|
Net weight: |
included |
|||
