GZY-II Linear Drying Time Recorder Six stroke rods with hemispherical contacts, installed on three independent sliding frames. Each channel can have its own set running time to test different samples separately. The rod is driven by a sliding frame and comes into contact with the new coating . Starting from one end, it moves longitudinally on the sample. The movement time can be measured by the s
Product Description

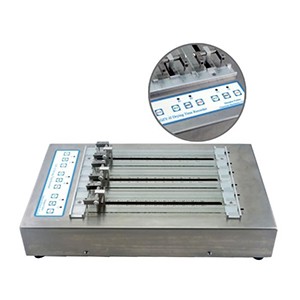

ST-II Linear Drying Time Recorder
Six stroke rods with hemispherical contacts, installed on three independent sliding frames. Each channel can have its own set running time to test different samples separately. The rod is driven by a sliding frame and comes into contact with the new coating . Starting from one end, it moves longitudinally on the sample. The movement time can be measured by the scale on the edge of the channel, corresponding to the various drying stages of the observed trajectory. The coating is pre applied on glass strips with a width of 23mm and a length of 340mm, using a square preparer for coating. The principle of a drying time recorder is d on the mathematical formula: distance=velocity x time.
Standard
ISO 9117-4, ASTM D 5895
Technical Parameter
|
Input voltage |
220V AC 50Hz |
|
Motor power |
60 W |
|
Number of Needles Needled |
6 |
|
Needle diameter |
1 mm |
|
Load weight |
11 g |
|
Moving distance |
300 mm |
|
Time setting |
1h/6h, 2h/12h, 3h/24h |
|
External dimensions |
490×220×130 mm |
|
Shipping weight |
10 kg |
