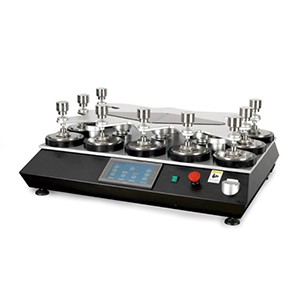

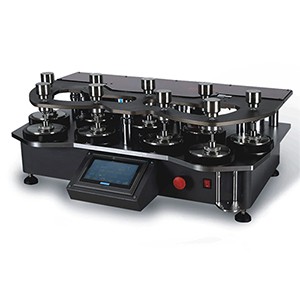

Martindale Abrasion And Pilling Tester
- ST-001T
- 9
- (0 ~ 999999) times
- (60.5±0.5)mm; (24±0.5)mm
Martindale Abrasion And Pilling Tester for testing the abrasion and pilling resistance of all types of fabrics and other materials.
Product Description
Martindale Abrasion And Pilling Tester for testing the abrasion and pilling resistance of all types of fabrics and other materials.
Product Features
1. Three test modes, plus and minus two counting modes.
2, no turning guide design, loading without moving.
3, PLC modular control, 7-inch color touch screen, Bilingual menu operation.
Technical Parameters
| Item | Parameter |
|---|---|
| Number of working stations | 9 |
| Counting range | (0 ~ 999999) times |
| Maximum range | (60.5±0.5) mm; (24±0.5) mm |
| Pressurized material quality |
a. Garment sample weight: (397±2) g
|
| Effective friction diameter of grinding block |
Type A 198 g (3 kPa) friction head: φ (28.8‑0.084) mm
|
| Relative movement speed of gripper and grinding platform | (50±0.5) r/min (adjustable 20‑70 r/min) |
| Sample pressure hammer mass | (2385±10) g |
| Overall size | (885×610×290) mm |
| Power supply | AC220V±10%, 50Hz, 500W |
| Weight | 81 kg |
Standard
GB/T21196 (National standard drafting unit), FZ/T20020, GB/T4802.2, GB/T13775, ASTM D4966, ASTM D4970, ASTM D3886, ISO12945.2, ISO12947, JIS L1096, IWSTM196/TM112 M&S, etc
